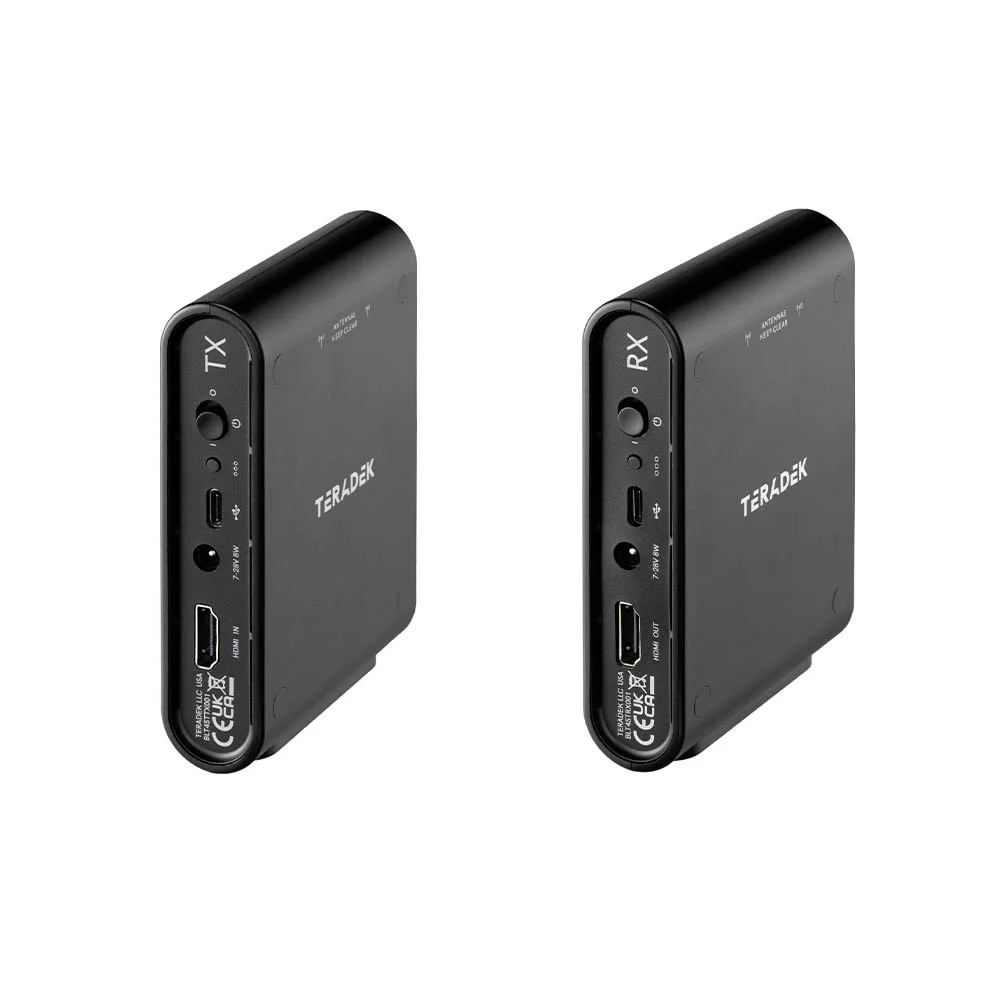

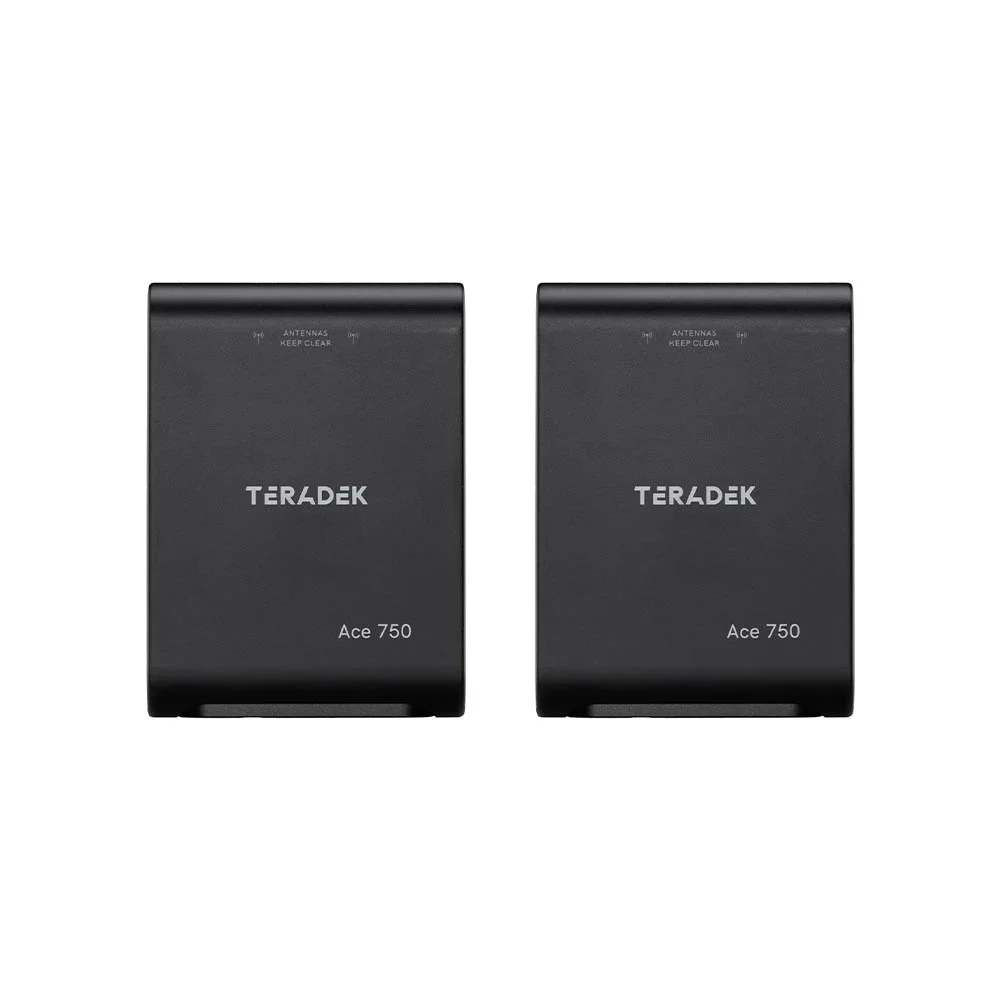

Teradek ACE 750 TX/RX Set

£968.79 Ex VAT

10-2240

OVERVIEW
Ace 750 is a lightweight, compact, HDMI wireless video system with built-in antennas designed to be used with mirrorless cameras, camcorders, action cameras and A/V workflows. It sends uncompressed zero-delay, 4Kp30, HDR video and audio with up to 750 feet (230m) of range. Ace 750 is cross-compatible with Bolt 4K and Bolt 6 in 5GHz and 6GHz modes and is fully compliant with FCC and CE frequency usage and power output guidelines. Ace 750 features an integrated hole pattern for mounting and can be powered with NP-F or LP-E6 batteries using an optional L-shaped plate.

The transmitter (TX) and receiver (RX) units automatically detect and select the 5Ghz or 6GHz RF channel with the least interference and employ Auto-Frequency Switching to maintain optimal signal quality. Ace comes paired out of the box. The TX can send video to up to six RX devices at the same time using the Bolt Manager app for iOS or Android.

Ace 750 is built with…

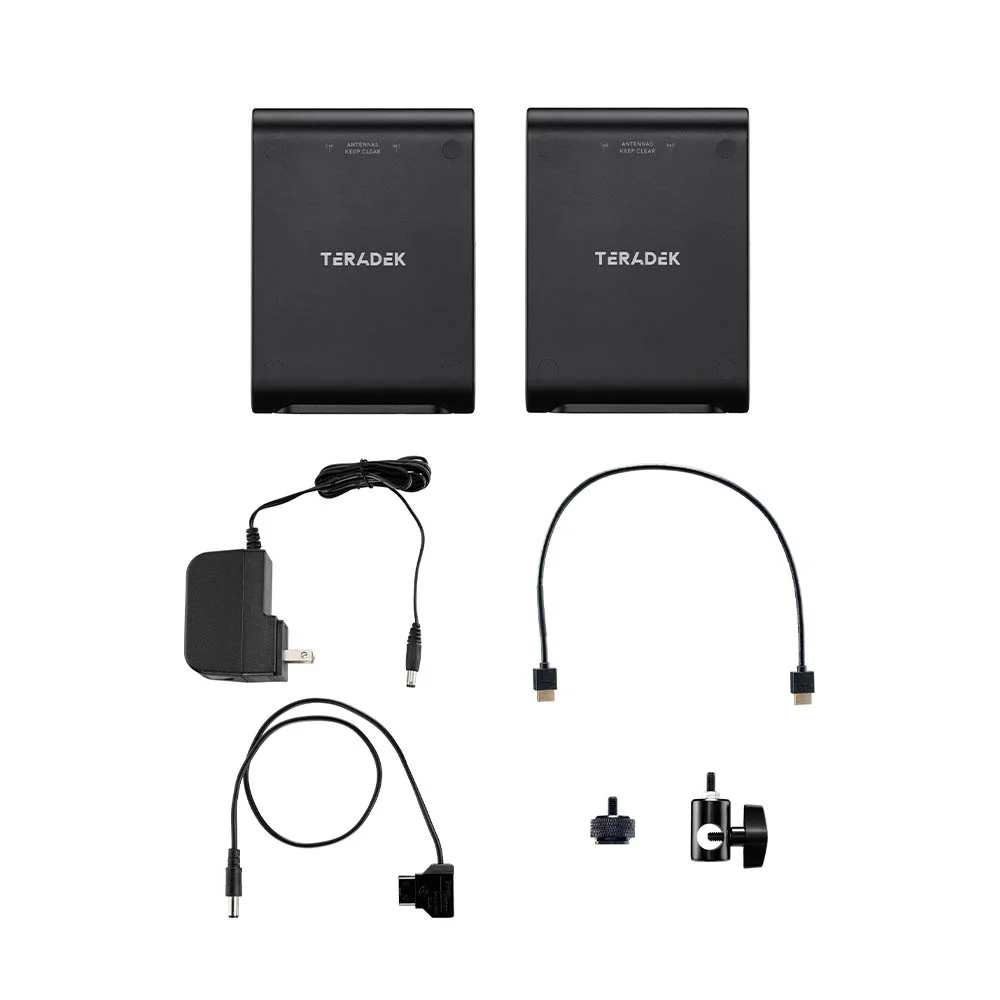

INCLUDED IN BOX
1 x Ace 750 Transmitter
1 x Ace 750 Receiver
1 x Lightstand Adapter 1/4-20in
1 x Hot Shoe Adaptor
2 x Ultra Thin HDMI Male Type A – HDMI Male Type A – 18in Cable
1 x PSU 18W AC Adapter 12VDC – 6ft Cable
1 x PTap to r/a barrel – 18in Cable

About The Teradek ACE 750 TX/RX Set
Ace 750 is a lightweight, compact, HDMI wireless video system with built-in antennas designed to be used with mirrorless cameras, camcorders, action cameras and A/V workflows. It sends uncompressed zero-delay, 4Kp30, HDR video and audio with up to 750 feet (230m) of range. Ace 750 is cross-compatible with Bolt 4K and Bolt 6 in 5GHz and 6GHz modes and is fully compliant with FCC and CE frequency usage and power output guidelines. Ace 750 features an integrated hole pattern for mounting and can be powered with NP-F or LP-E6 batteries using an optional L-shaped plate.

The transmitter (TX) and receiver (RX) units automatically detect and select the 5Ghz or 6GHz RF channel with the least interference and employ Auto-Frequency Switching to maintain optimal signal quality. Ace comes paired out of the box. The TX can send video to up to six RX devices at the same time using the Bolt Manager app for iOS or Android.

Ace 750 is built with the same reliable wireless technology found in our acclaimed Bolt product line. Because of this, Ace 750 is fully compatible with all Bolt 4K and Bolt 6 models.

True Zero-Delay for All

Unlike WiFi-based systems, the patented Teradek BB3 silicon chip inside Ace 750 ensures wireless HDMI video transmission with less than 0.01 seconds of latency, sending truezero-delay video to up to six receivers up to 750 feet away.

Effortless Connectivity

AUTO CHANNEL SELECTION

Automatically connects to the clearest channel in your area for optimal signal strength.

PP CONTROL

Pair devices and manage settings with the Bolt Manager App for iOS and Android.

6GHz DIVERSITY

Get full 5GHz connectivity plus 12 newly available U-NII 5 channels (aka 6GHz) for more frequency options and the cleanest signal.

GOVERNMENT CERTIFIED

Teradek follows all frequency usage and power output guidelines to ensure full FCC and CE compliance.

Bolt Compatible – The System That Evolves With You

Compatible with all Teradek Bolt 4K and Bolt 6 Series Wireless Systems, Ace 750 lets you scale to any production environment.

Ace 750 TX
Video
Video Inputs 1x HDMI 1.4b Type-A receptacle
Color Sampling YCbCr 4:2:2 10-Bit
RGB 4:4:4 8-bit
Delay Tx To Rx <0.001sec (without format conversions) Supported Resolutions Supported Resolutions 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080i50/59.94/60 720p50/59.94/60 Video Processing Video Compression Visually Lossless Audio Processing Audio Compression 48kHz 24-bit PCM Inputs Audio Input Embedded HDMI Audio Input (2 channel) Physical Dimensions 4.39" x 3.19" x 1" Weight 6.6oz (187g) Construction ABS Plastic / Milled Aluminium Mountability Multiple mounting options with M3 and 1/4-20” holes Interfaces - Configuration Interfaces OLED display - Input video format Selected frequency Video Quality % Link status Switches On/Off Switch Mobile App Bolt App Desktop App Bolt Manager application for OSX & Windows Usb Interface Functionality Upgrade via USB C Bluetooth Yes Network Antennas 2x 2dBi internal antennas (AMC mode always on) Wireless DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz Rf Channel Selection Auto only, 40 MHz only, no blocked frequencies Encryption AES-128, RSA-1024 key exchange Rf Power 19 dbm EIRP (<80mW transmit power) Range Up to 750 ft, line of sight Unicast Multicast Yes - 1 TX to 6 RX Noise Rejection Can coexist with WiFi and 5GHz cordless phones, can operate up to 4 sets in same location, Interoperability Compatibility Compatible with Bolt 4k and Bolt 6 products Power Power Input Barrel connector 7-18V Battery None, optional Sony/Canon dual battery plate Nominal Power Consumption 6 Watts Environmental Operating Temperature 0-40℃ Ace 750 RX Video Video Outputs 1x HDMI 1.4b Type-A receptacle Color Sampling YCbCr 4:2:2 10-Bit RGB 4:4:4 8-bit Delay Tx To Rx <0.001sec Supported Resolutions Supported Resolutions 4Kp23.98/24/25/29.97/30 1080p23.98/24/25/29.97/30/50/59.94/60 1080i50/59.94/60 720p50/59.94/60 Video Processing Video Compression Visually Lossless Audio Processing Audio Compression 48kHz 24-bit PCM Outputs Audio Output Embedded HDMI Audio Input (2 channel) Physical Dimensions 4.39" x 3.19" x 1" Weight 6.6oz (187g) Construction ABS Plastic / Milled Aluminium Mountability Multiple mounting options with M3 and 1/4-20” holes Interfaces Configuration Interfaces OLED display - Input video format Selected frequency Video Quality % Link status Switches On/Off Switch Mobile App Bolt App Desktop App Bolt Manager application for OSX & Windows Usb Interface Functionality Upgrade via USB C Bluetooth Yes Network Antennas 5x Internal 2dBi antennas (included) Wireless DFS Frequencies: 5.270 ~ 5.670 GHz Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, and 5.945 ~ 6.425GHz Rf Channel Selection Auto only, 40 MHz only, no blocked frequencies Encryption AES-128, RSA-1024 key exchange Rf Power 17 dbm EIRP (<51mW transmit power) Range Up to 750 ft, line of sight Unicast Multicast Yes - 1 TX to 6 RX Noise Rejection Can coexist with WiFi and 5GHz cordless phones, can operate up to 4 sets in same location, Interoperability Compatibility Compatible with Bolt 4k and Bolt 6 products Power Power Input Barrel connector 7-18V Battery None, optional Sony/Canon dual battery plate Nominal Power Consumption 6 Watts Environmental Operating Temperature 0-40℃ 4Kp30 10-bit HDR True zero-delay - less than 0.01 seconds of latency 6GHz auto frequency-switching Range up to 750 feet / 230m Multi-receiver capable - up to 6 Receivers per Transmitter

Brand

Teradek
