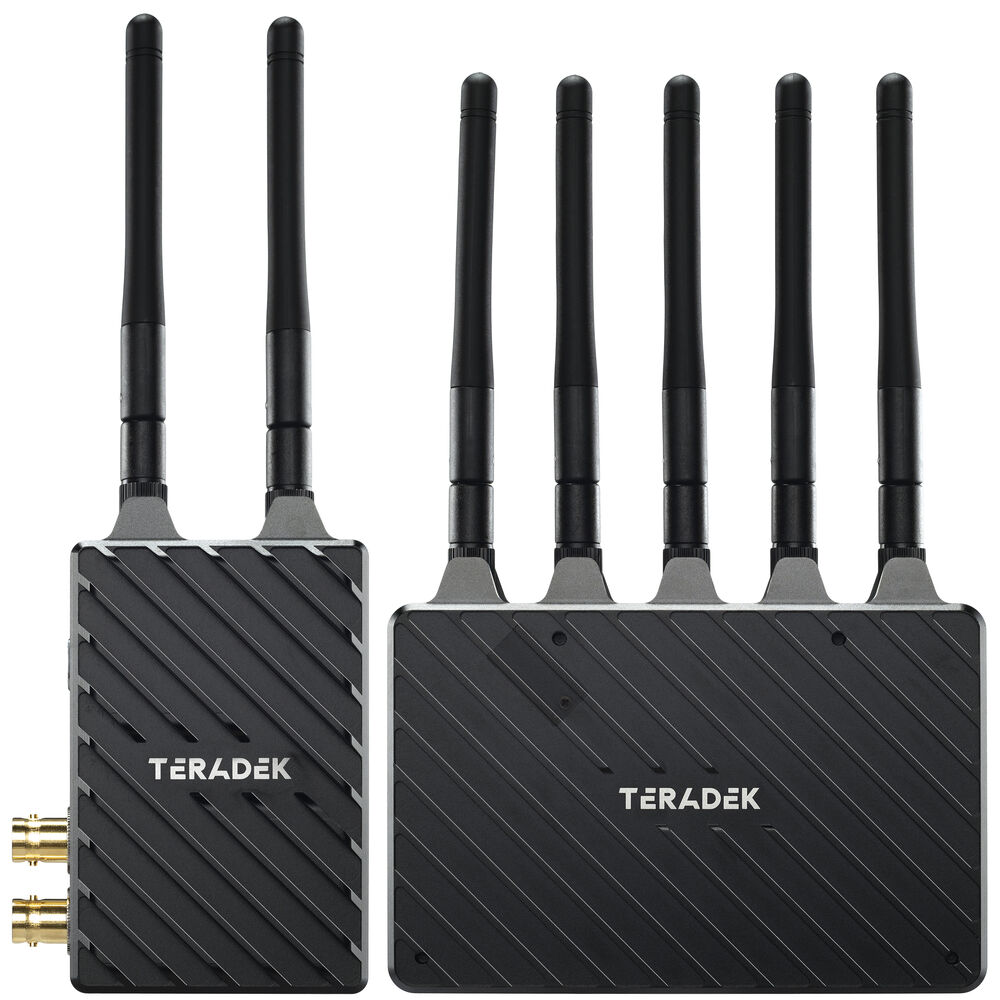

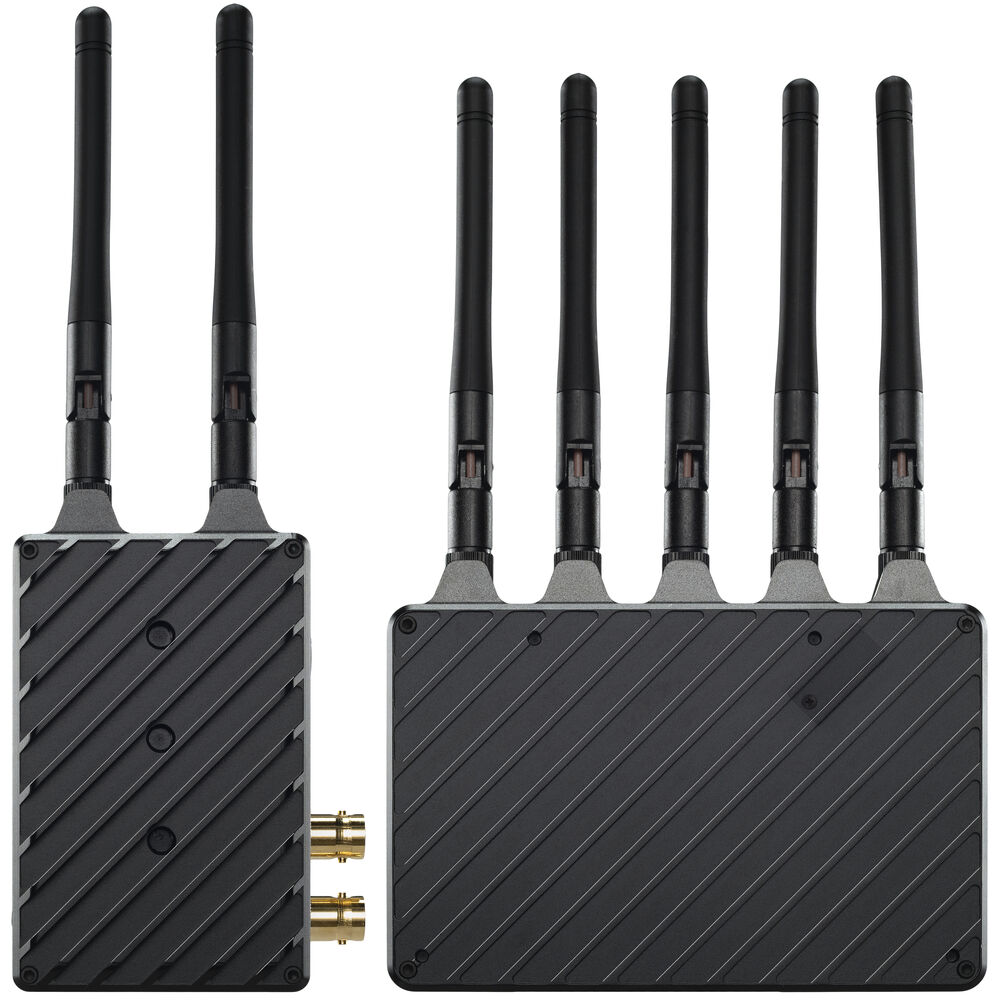

Teradek Bolt 6 LT 750 TX/RX

£2,311.00 Ex VAT

10-2260

OVERVIEW
Bolt 4K hits new frequencies
The Bolt 6 Series expands the power and performance of the zero-delay Bolt 4K family into the recently-unlocked U-NII 5 frequency spectrum, offering users a wealth of untapped bandwidth while remaining fully-compatible with Bolt 4K on traditional 5GHz bands
The industry’s first 6GHz wireless solution.
The Bolt 6 transmits and receives over the newly-available 6GHz frequency band as well as the industry-standard 5GHz, dramatically reducing signal congestion in challenging RF environments while remaining fully cross-compatible across all Bolt 4K devices.*

*6Ghz projected release in EU Q1 2023
INCLUDED IN BOX
1 x Bolt 6 LT 750 TX
1 x Bolt 6 LT 750 RX
1 x Lightstand Adapter ¼-20in
1 x Hot Shoe Adaptor
1 x (Bit 118) 2pin Conn. to PowerTap – 18in/46cm Cable
2 x Ultra Thin HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in/46cm Cable
2 x SDI – BNC to BNC Cable, 10in
1 x PSU 2pin Conn. to 18W AC Adapter (Int) – 6ft Cable (11-0057)
1 x USB Male Type A (Full) – USB Male Type B (Micro) -3ft Cable

About The Teradek Bolt 6 LT 750 TX/RX
Bolt 4K hits new frequencies

The Bolt 6 Series expands the power and performance of the zero-delay Bolt 4K family into the recently-unlocked U-NII 5 frequency spectrum, offering users a wealth of untapped bandwidth while remaining fully-compatible with Bolt 4K on traditional 5GHz bands

The industry’s first 6GHz wireless solution.

The Bolt 6 transmits and receives over the newly-available 6GHz frequency band as well as the industry-standard 5GHz, dramatically reducing signal congestion in challenging RF environments while remaining fully cross-compatible across all Bolt 4K devices.*

*6Ghz projected release in EU Q1 2023

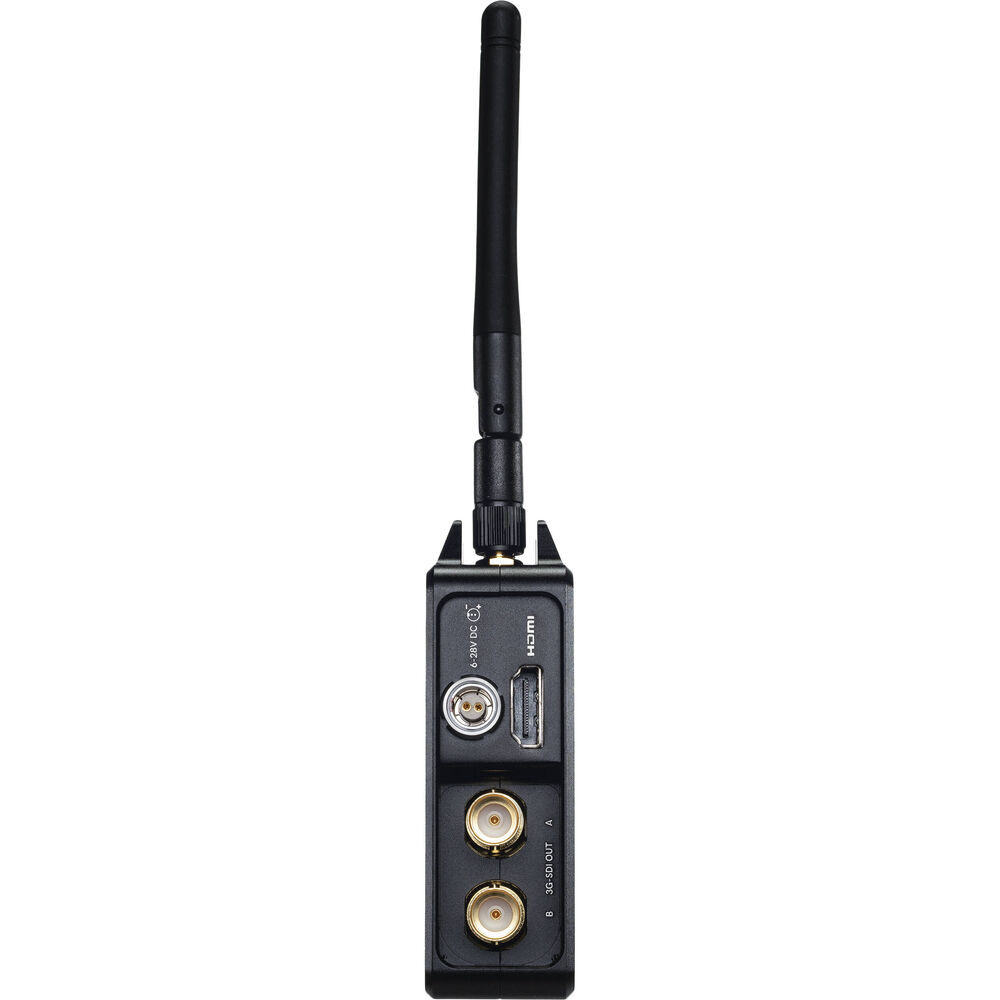

BOLT 6 LT 750 TX
Video Inputs 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
1 x HDMI 1.4b Type-A receptacle
Video Outputs 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
Sdi Ancillary Data Support Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Colour Sampling SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Delay Tx To Rx <0.001sec Input Cross Conversion Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout) Supported Resolutions 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL) Video Compression Visually Lossless Colour Correction None Audio Compression 48kHz 24-bit PCM Audio Input Embedded SDI/HDMI Audio Input (2 Channel) Dimensions 60mm x 103mm x 33mm Weight 206g (7.3oz) Construction Milled Aluminium(Chassis) and regulation-compliant PCB Mountability Multiple mounting options with 1/4"x20 and M3 holes Configuration Interfaces OSD with Menu, Joystick Navigation Switches On/Off Switch Mobile App Bolt App Desktop App Bolt Manager application for OSX & Windows Usb Interface Functionality Upgrade via Micro-USB Bluetooth 2.4 GHz Antennas 2 External 2dBi antennas (included) Wireless Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz Rf Channel Selection Auto, Manual Encryption AES-256, RSA-1024 key exchange Rf Power 23 dbm EIRP Range Up to 750 ft, line of sight Unicast Multicast Can connect one Transmitter to up to 6 Receivers Noise Rejection Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location Interoperability Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device) Power Input 2-Pin Circular locking Connector 6-28 VDC Battery None, optional Sony/Canon dual battery plate Nominal Power Consumption 9 Watts Operating Temperature 0-40℃ Ghz Support Yes Compatible With Bolt4k Yes Available Ranges 750 ft / 1500 ft / 5000+ ft Maximum Sdi Resolution 1920x1080p60 Maximum Hdmi Resolution 3840x2160p30 Smallhd Wireless Camera Control Port Requires Adaptor Transmitter Weight 7.3 oz / 206 g Receiver Connectivity 6/Unlimited* Zerodelay Yes BOLT 6 LT 750 RX Video Outputs 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle Sdi Ancillary Data Support Supports reading metadata, timecode, and start/stop flags from most camera manufacturers. Colour Sampling SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit Output Video Scaling No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output Supported Resolutions 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL) Video Compression Visually Lossless Test Pattern Generator Support Yes Spectrum Analyzer Yes Colour Correction 17x17x17 3D LUT (supports 10-bit colour) Audio Compression 48kHz 24-bit PCM Audio Output Embedded SDI/HDMI Audio Output (2 Channel) Dimensions 122mm x 94mm x 27mm Weight 292g (10.3oz) Construction Milled Aluminium(Chassis) and regulation-compliant PCB Mountability Multiple mounting options with 1/4"x20 and 3/8"x16 holes Configuration Interfaces OSD with Menu, Joystick Navigation Switches On/Off Switch Mobile App Bolt App Desktop App Bolt Manager application for OSX & Windows Usb Interface Functionality Upgrade via Micro-USB Bluetooth 2.4 GHz Antennas 5 External 2 dBi antennas (included) Wireless Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz Rf Channel Selection Auto, Manual Encryption AES-256, RSA-1024 key exchange Rf Power 21 dbm EIRP Range Up to 750 ft, line of sight Unicast Multicast Can connect one Transmitter to up to 6 Receivers Noise Rejection Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location Interoperability Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device) Power Input 2-Pin Circular locking Connector 6-28 VDC Battery None, optional Gold or V mount battery plate Nominal Power Consumption 11 Watts Operating Temperature 0-40℃ XT range smaller, lighter & quieter Built in 5-pin USB for camera control Backwards compatible with Bolt 4K** 12 new frequency channels Long range video quality improvements SDI Eye pattern 6GHz has no DFS channels Included in new Ultra 5 Bolt Same price as Bolt 4K ** Bolt 6 uses different antennas for 6GHz
