Overview

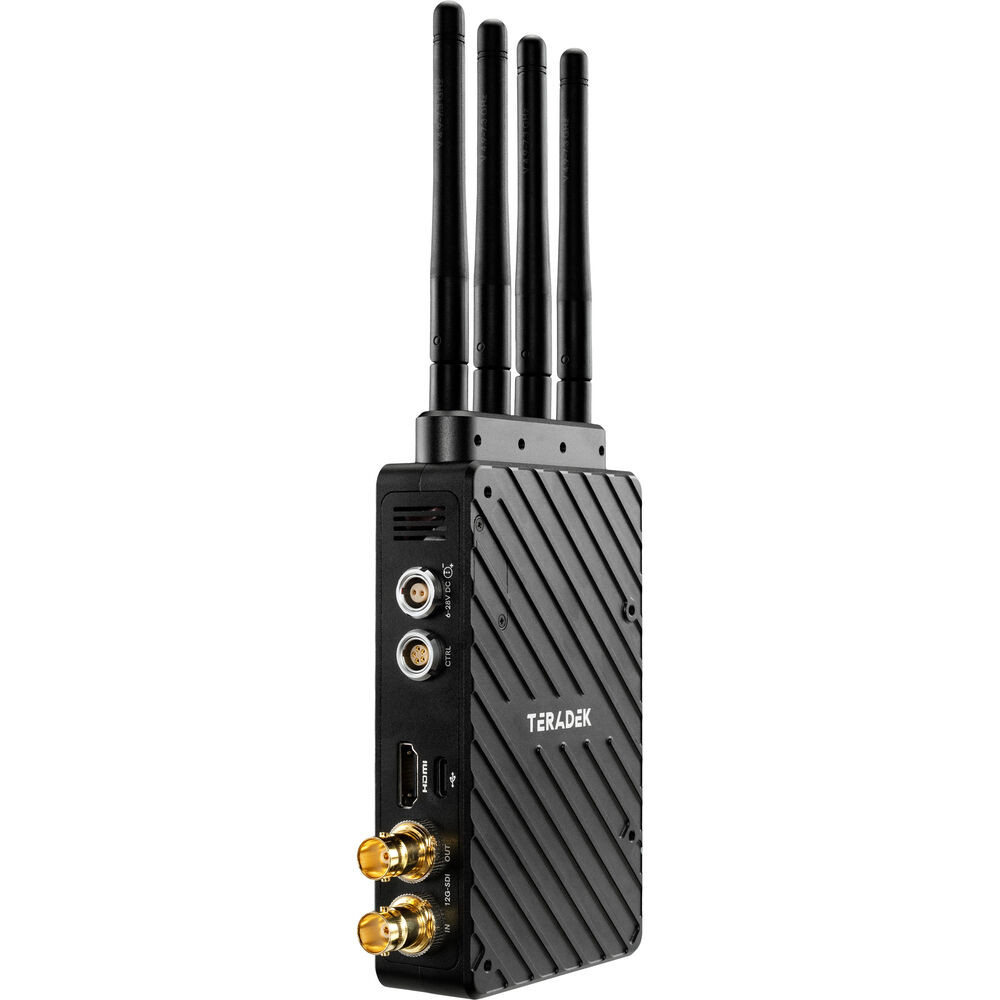

The Bolt 6 XT TX is a wireless video transmitter that supports 4K video with Zero-Delay technology and uses the newly opened 6GHz wireless frequency to reduce interference. With a range of options, fast reconnection times, and easy setup through the Bolt Manager App, this transmitter provides consistent and stable connectivity. It also offers improved image quality and more frequency options with 12 new channels in high-traffic areas.
The Bolt 6 XT has a smaller and lighter design that runs cooler and quieter than its predecessor, the Bolt 4K. It also has a built-in 5-pin USB port for wireless camera control and is cross-compatible with the entire Bolt 4K series. With the ability to link up to 6 receivers or unlimited receivers in Broadcast Mode, and line-of-sight options ranging from 750 ft. to 5,000+ ft., the Bolt 6 XT is a versatile and reliable choice for high-end users.
Included in box
1x Bolt 6 XT 750 TX Gold Mount
1x Bolt 6 XT Battery Cover Plate Front
2x Screw Flat Head Phillips
1x (Bit 118) 2pin Conn. to PowerTap – 18in/46cm Cable
1x PSU 2pin Conn. to 30W AC Adapter (Int) – 6ft Cable
4x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
1x USB 2.0 Type A Male to USB Type C Male – 1m Cable
1x Bolt 6 XT Battery Cover Plate Rear
About the Teradek Bolt 6 XT 750 TX GM
The Bolt 6 XT TX is a real-time wireless video transmitter that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. This transmitter allows you to send colour accurate, True HDR videos in under 0.001 seconds.
Key features of the Bolt 6 XT Transmitter include range options designed for a variety of production needs, fast reconnection times, an intuitive, easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 XT series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 XT users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.
Bolt 6 XT has been redesigned to seamlessly fit into your setup, with a smaller, lighter-weight build that runs cooler and 50% quieter than the Bolt 4K. An integrated 5-pin USB port allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors, and an improved long range wireless video mode. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment.
The Transmitter is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).
Bolt 6 XT offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.
