Teradek Bolt 6 XT MAX TX/RX GM

£12,130.00 Ex VAT

OVERVIEW
Teradek 10-2319-G (102319G) Bolt 6 XT MAX 12G-SDI/HDMI Wireless TX/RX – Gold Mount teradek-10-2319-g-bolt-6-xt-max-tx-rx-gm / 10-2319-G. The Bolt 6 XT Set is a real-time wireless video transmission system that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 XT can send and receive colour-accurate, True-HDR videos in under 0.001 seconds using the set’s included Bolt 6 XT video Transmitter and Receiver.

Key features of the Bolt 6 XT Set include range options designed for a variety of production needs, fast reconnection times, intuitive and easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 XT series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 XT users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.

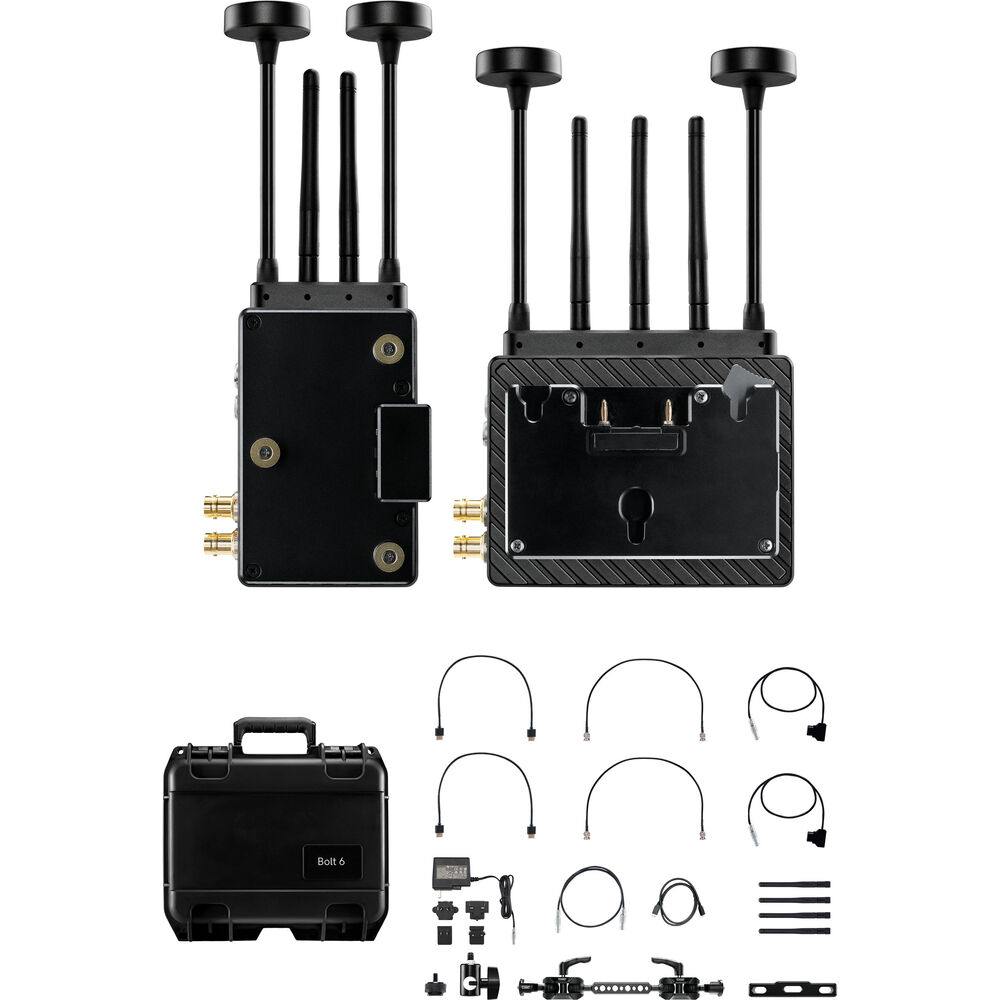

INCLUDED IN BOX
  • 1 x Bolt 6 XT MAX TX Gold Mount
  • 1 x Bolt 6 XT MAX RX Gold Mount
  • 2 x Bolt 6 XT Battery Cover Plate Front
  • 1 x Bolt 4K TX Mounting Bracket
  • 1 x Lightstand Adapter 3/8in
  • 1 x Hot Shoe Adaptor
  • 4 x Screw Flat Head Phillips
  • 2 x Screw Socket Cap A S, M3 x 16mm
  • 1 x Hex L key 2.5mm size 3-5/8″ length
  • 2 x (Bit 118) 2pin Conn. to PowerTap – 18in/46cm Cable
  • 1 x (Bit 718) 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable
  • 2 x Ultra Thin HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in/46cm Cable
  • 2 x SDI 12G BNC to BNC 18in/46cm Cable
  • 1 x Teradek Case Large – Bolt XT TX/2RX
  • 1 x PSU 2pin Conn. to 30W AC Adapter (Int) – 6ft Cable
  • 9 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
  • 1 x Wooden Camera – Universal Ultra Arm Monitor Mount (Combo 1/4-20 & 3/8-16, 5″)
  • 1 x USB 2.0 Type A Male to USB Type C Male – 1m Cable
  • 2 x Bolt 6 XT Battery Cover Plate Rear

    About The Teradek Bolt 6 XT MAX TX/RX GM

    The Bolt 6 XT Set is a real-time wireless video transmission system that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 XT can send and receive colour-accurate, True-HDR videos in under 0.001 seconds using the set’s included Bolt 6 XT video Transmitter and Receiver.

    Key features of the Bolt 6 XT Set include range options designed for a variety of production needs, fast reconnection times, intuitive and easy setup with the Bolt Manager App for iOS or Android, and consistent, stable connectivity. The Bolt 6 XT series utilizes the 6GHz band to give users better image quality and reduced interference. And when used in high-traffic areas, 6GHz wireless frequency gives Bolt 6 XT users more options for frequency adjustments with 12 new channels. Bolt 6 can also pass metadata, timecode, and start/stop flags from most camera manufacturers.

    Bolt 6 XT has been redesigned to seamlessly fit into your setup, with a smaller, lighter-weight build that runs cooler and 50% quieter than the Bolt 4K. An integrated 5-pin USB port allows for effortless and wireless camera-control setup when using SmallHD Smart Monitors, and an improved long range wireless video mode. Bolt 6 also offers new tools for high-end users to have better visibility over their connections and signals, adding confidence to the workflow no matter how challenging the environment.

    The included Transmitter and Receiver are cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

    Bolt 6 XT offers three line-of-sight options: 750 ft., 1500 ft., and the MAX Set, which can be configured for up to 5,000+ ft. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

    • Zero Delay
    • 6GHz Wireless Frequency
    • Bolt 4K Cross-Compatibility
    • Lightweight and Quiet
    • Built in 5-pin USB for camera control
    • Inputs: 12G-SDI, HDMI 2.0
    • Outputs: 12G-SDI, HDMI 2.0

Brand

Teradek
