Overview
Prism Mobile has recently expanded its capabilities by allowing users to stream from 2 to 6 x Node Modems simultaneously. This means that users can now have up to six cellular connections for super robust streaming from any location. To learn more about the Node modems, click on the link provided.

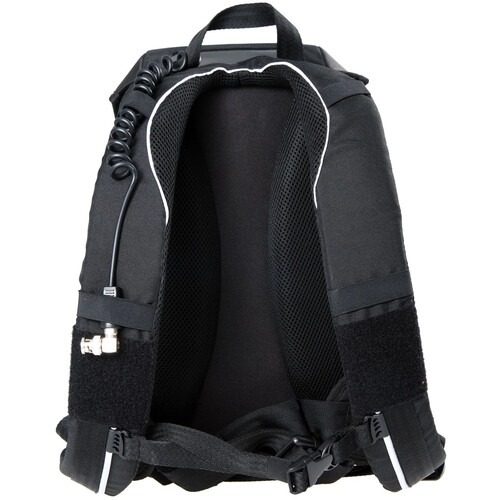

In order to further enhance the streaming capabilities of Prism Mobile, users can also purchase the Prism Mobile Backpack. This essential accessory allows for up to 4 additional 5G modems to be connected, in addition to the built-in cellular connectivity of the Prism Mobile. This means that with the backpack, users can have a total of 6 simultaneous cellular connections for even stronger streaming. The backpack is compatible with all Prism Mobiles, making it a versatile and valuable addition to any streaming setup.

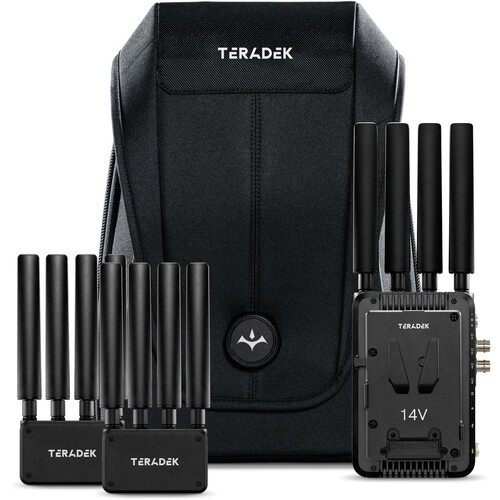

Included in box
1x Prism Mobile Mk II V Mount
1x Backpack Bonding Assembly with Cabling
2x Node 5G
12x Long Multi-band SMA Antenna
4x Short Multi-band SMA antenna
1x 3.0A PTAP power supply
About the Teradek Prism Mobile Backpack MKII 2 x 5G VM
Click here to learn more about our Node modems.
Expand your Prism Mobile’s capabilities with the Prism Mobile Backpack, the essential accessory to expand your cellular streaming by up to 4 additional 5G modems. Combined with Prism Mobile’s built-in cellular connectivity, the backpack provides up to 6 simultaneous cellular connections for super robust streaming from any location. The backpacks are compatible with all Prism Mobiles.
Prism Mobile Backpack
Bonding Support for up to 4 additional Node Modems using 5-pin connectors and external power
Supported Modems Node II
Node II CBRS
Node 5G
Power Input Requires external power from standard PTAP adapter, Gold, V-Lock Battery Plates NOTE: 26V IS NOT SUPPORTED.
Recommended Battery: Anton Bauer Batteries
Prism Mobile 5G
Video
Video Inputs 1 x SD/HD/3G/6G/12G-SDI (75 Ω BNC)
1 x HDMI 2.0 Type-A
Hdr Support Yes (2020-PQ, 2020-HLG, P3D65-PQ)
Video Outputs 1 x SD/HD/3G/6G/12G-SDI (75 Ω BNC)
Supported Modes Single Encode, Bi-directional Encode/Decode (additional license)
Bonding Teradek Bonding Protocol, Teradek Reliable Transport (TRT)
Supported Resolutions 4K DCI p23.98/24/25/29.97/30/50/59.94/60
4K UHD p23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/50/59.94/60
1080i 50/59.94/60
1080PsF 23/24/25/29/30
720p 50/59.94/60
576i 480i
Video Compression ISO MPEG-4 Part 10: Advanced Video Coding (AVC)/ITU H.264
AVC: Baseline, Main, High
ISO MPEG-H Part 2: High Efficiency Video Coding (HEVC)/ITU H.265
HEVC: Main
Supported Video Bitrate 250 kbps to 85 Mbps
Video Format Conversion Support Built in video scaler and deinterlacer
Number Of Encoder Streams Up to one 4KDCI p60 4:2:2 10bit
Color Correction CDL/1024 1D LUT (supports 10-bit color)
33x33x33 3D LUT (supports 10-bit color)
Protocol Support
Network Protocols TCP/IP, UDP, HTTP, DHCP, NTP, TLS, IGMP
Supported Video Transport Protocols Teradek Reliable Transport (TRT)
Secure Reliable Transport (SRT)
RTMP/RTMPS
MPEG-TS, DASH (UDP, TCP, TCP Server, Multicast)
RTSP/RTP
RIST
HLS Client
Integrated CDNs (YouTube, Facebook, Vimeo),
WHIP
Remote Control Teradek Core Cloud, Private SDK
Audio Processing
Audio Compression AAC-LC
Audio Bitrate 32kbps to 512kbps
Inputs
Audio Input Embedded over SDI
3.5mm Stereo Line Level Analog or Microphone in, adjustable gain
Outputs
Audio Output 3.5mm Stereo Headphone output
Analog 3.5mm Line Level, USB-A Headset or Audio Interface (< 1.5A)
Physical
Dimensions 5.9"W x 3.9"D x 1.3"H [162 x 92 x 35mm]
Weight 23.4oz [664g] without plates; 30.5oz (864g) with plates
Construction Milled Aluminum
Mountability Camera-back, Gold, Gold 26V and V-Lock mounts. Can be mounted with 1/4" 20 mounting hole
Interfaces
Configuration Interfaces Core Cloud for remote device management
Feature-rich Web UI for local device management
Intuitive iOS configuration app
OLED Status Display w/ Nav control buttons
Cellular 2x Internal Node 5G - SW Modems (CBRS supported)
Recording Storage SD Card - Full size, USB Drive, NFS
Cloud Services Native Sync with the following:
Core Cloud
Frame.io
Sony Ci
Sony C3 Portal
Avid
PIX
Moxion
Usb Interface Functionality 1 x Powered LEMO with Node Modem support
1 x Powered USB-A with Node and external storage support
Network
Ethernet 2 x 10/100/1000 BASE-T Gigabit Ethernet (RJ45)
Wireless WiFi: 2.4/5GHz 802.11 a/b/g/n/ac/ax MIMO - BLE for Network Configuration
Power
Power Input 2 Pin Circular Locking Connector
Nominal Power Consumption 20W Nominal, 36W Max
Auxilary Power Input 6-28V DC
Expands Prism Mobile to stream from 2 to 6 x Node Modems simultaneously
