Overview

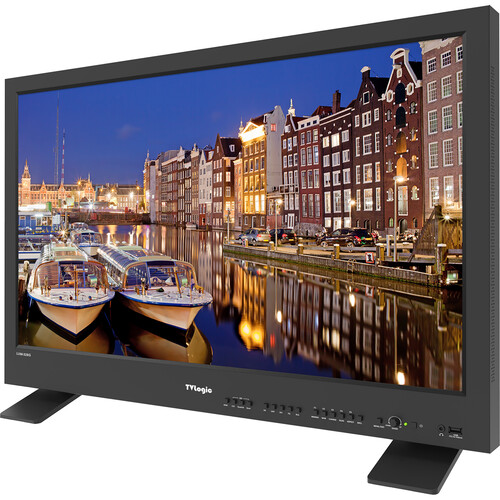

The LUM-328G is a 32-inch monitor that offers true UHD resolution of 3840×2160, providing a high-quality picture. It boasts 86% coverage of DCI-P3 color gamut and a wide range of 1.07 billion colors (10bit). With a peak luminance of 1,000 nits, this monitor also features HDR emulation for both PQ and HLG, making it perfect for use in control rooms, editing suites, and OB Vans.
In addition to its impressive display capabilities, the LUM-328G also offers a variety of video signal analysis functions, including waveform and vectorscope, focus assist and marker, timecode display, and UMD display. It also has features such as blue/mono only, various aspect ratios, and Luma(Y) zone check. Other useful features include closed caption options, H/V delay, and screen tally, making it a versatile and practical choice for professional use.
Summary
Screen Size: 31.5 Inch
Resolution: 3840 x 2160
Inputs:
1 x 3G-SDI
1 x HDMI 2.0 (10-bit or 8-bit 422 depending on camera)
4x 12G-SDI
Outputs: 4x 12G-SDI
Included in box
1x Monitor
1x AC Power Cable
1x Table Stand
About the TV Logic 32in HDR Emulation Monitor
The 32-inch UHD monitor offers excellent picture quality with 3840×2160 resolution, high brightness up to 1,000 nits, and wide viewing angles. The LUM-328G provides HDR emulation capabilities along with HDR EOTF of PQ and HLG, a bunch of video signal analysis functions, rugged housing, which make it ideal for use in control rooms, editing suites as well as OB Vans.
Size 31.5″
Resolution 3840 x 2160 (16:9)
Pixel Pitch 0.18159mm
Color Depth 1.07B Colors
Viewing Angle (Typ.) 178°(H) / 178°(V)
Luminance (Max.) 1,000nits (center)
Contrast Ratio 1000:1
Display Area 697.31(H) x 392.23(V) mm
Input 4 x BNC 12G-SDI A/B Channel Input
3G-SDI C/D Channel Input
1 x HDMI HDMI(2.0) Input
Output 4 x BNC 12G-SDI A/B, 3G-SDI C
Input Signal 12G-SDI 12Gb/s
6G-SDI 6Gb/s
3G-SDI 2.970Gb/s
HD-SDI 1.485Gb/s
HDMI 2160p(60)/1080p(60)/1080i(60)/720p(60)
/480p(60)/576p(50
SDI Input Signal Formats SMPTE ST 2048-1 – 2160p(60/50/59.94/30/29.97/25/24/23.98)
SMPTE ST 2082 – 2160p(60/50/59.94)
SMPTE ST 2081 – 2160p(30/25/24/23.98/29.97)
SMPTE-425M-A/B – 1080i(60/59.94/50)
1080p(60/59.94/50/30/29.97/25/24/23.98/
30sF/29.97sF/25sF/24sF/23.98sF)
SMPTE-274M – 1080i(60/59.94/50)
1080p(30/29.97/25/24/23.98/24sF/23.8sF)
SMPTE-296M – 720p(60/59.94/50)
SMPTE-259M – 480i (59.94), 576i (50)
Audio In Embedded Audio
Analog stereo (Phone Jack)
Audio Out Analog Stereo (Phone Jack)
Power AC 100~240V(50~60Hz)
Power Consumption (Approx.) 162Watts (Max.)
Operating Temperature 0°C to 45°C (32°F to 113°F )
Storage Temperature -20°C to 60°C (-4°F to 140°F )
Included Accessories AC Power Cable, Table Stand
Main Body Dimensions 760.3 x 485.3 x 107.1(mm) / 29.93 x 19.1 x 4.21(inch)
Weight 18.7kg / 41.22lbs
31.5” True UHD Resolution (3840×2160)
86% Coverage of DCI-P3 Color Gamut
1.07 Billion Colours (10bit)
Peak Luminance 1,000nits
HDR Emulation (PQ, HLG)
12G-SDI Single Link 4K/UHD
3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD
Waveform / Vectorscope
16ch Audio Level Meter
Focus Assist / Marker
Timecode Display
UMD Display
Blue/Mono Only
Various Aspect
Luma(Y’) Zone Check
Closed Caption (CC-608, CC-708)
H/V Delay
Screen Tally
