TV Logic F-5A 5.5in Monitor

£950.00 Ex VAT

  • 5.5″ 1920 x 1080 IPS Display
  • Waveform, Vectorscope & Audio Meter
  • 1000:1 Contrast Ratio
  • 160° Viewing Angle
Category:
OVERVIEW
TV Logic F-5A 5.5inch Full-Featured Field Monitor with FHD IPS-LCD. The F-5A is a compact and light-weight field production monitor with Full HD resolution of 1920 x 1080, nice viewing angle and max luminance of 500nit. Equipped with a new image processing engine, F-5A reproduces even better sharpness and peaking boost capability for focus pullers. It also supports various video formats via 3G-SDI and HDMI 1.3 interface. And also support professional features such as Waveform/Vectorscope, Focus Assist, 3D LUT import, Camera Logs and HDR emulation.
Super-Sharp Details
Upgraded with the Sharpness + Peaking Boost function, the F-5A offers exceptional clarity and detail for focus pullers.
Easy Control, Versatile Ports

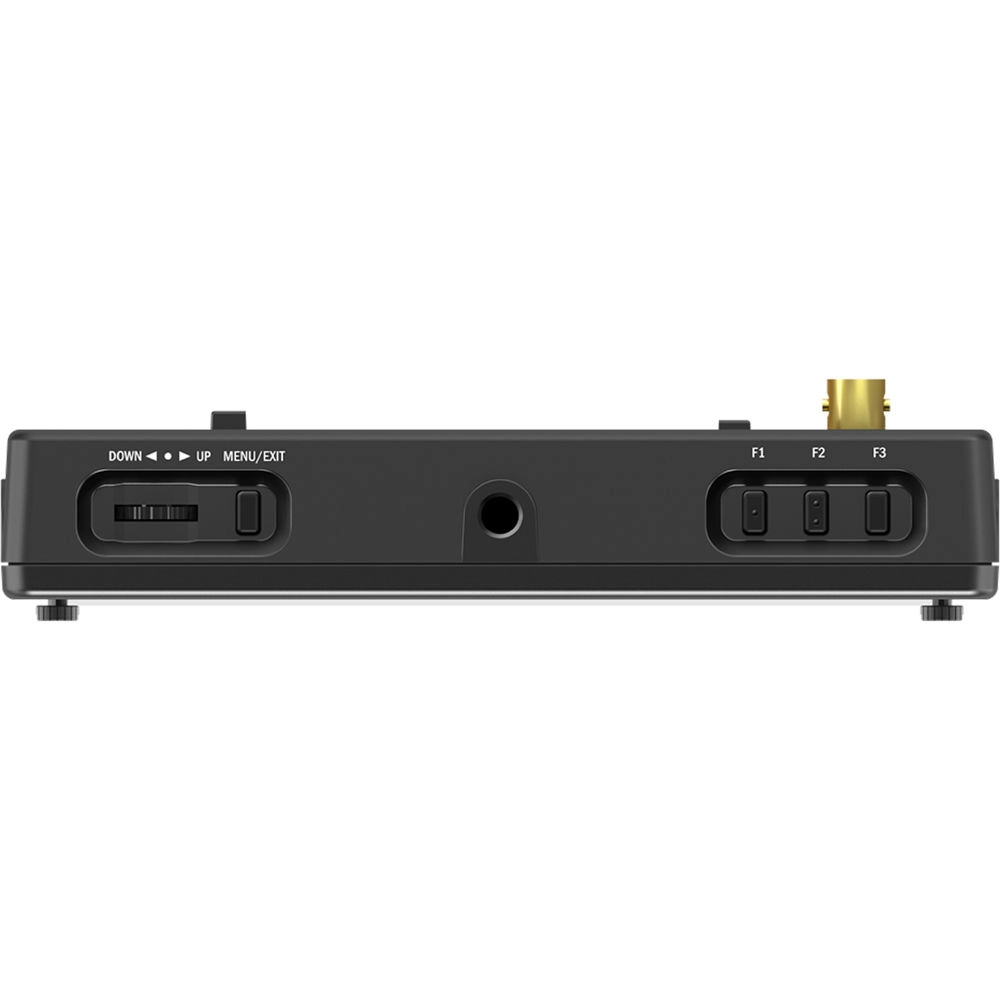

The F-5a offers a convenient control with a scroll wheel and 3x function keys and provides various video inputs including 3G-SDI and HDMI
Audio Level Metre Display
Displays the level of the embedded sound signal together with the video signal input through the…
SUMMARY
Screen Size: 5.5 Inch
Video Resolution: Full HD
Resolution: 1920 x 1080
Aspect Ratio: 16:9
Panel Type: LCD
Inputs:

1 x 3G-SDI
1 x HDMI Type A
Outputs:

1 x 3G-SDI
1 x HDMI Type A
Monitor Location: Field
INCLUDED IN BOX
  • 1x TV Logic F-5A 5.5in Monitor
  • 1x Coiled D-Tap Cable
  • 1x L-Shaped BNC Adapter
  • 1x Screen Protector

TVLogic‘s F-5A 5.5″ IPS On-Camera Monitor with L-Series Type Plate offers cinematic image quality in a sleek, compact form suitable for use as an EVF or onboard camera monitor. This monitor features a 1080p Full HD IPS display with 160° viewing angle and a contrast ratio of 1000:1. Monitoring functions include waveform, vectorscope, and 16-channel audio level meter displays. The versatile F-5A monitor has both 3G-SDI and HDMI inputs and outputs, enabling HDMI-to-SDI and SDI-to-HDMI conversion.

The monitor supports horizontal/vertical image flip, timecode display, image zoom, auto/manual aspect ratio selection, and blue/mono-only modes. The monitor supports ARRI camera metadata as well as HDR emulation of PQ, HLG, and SLog3. Pro-style focus assist functions like peaking boost help your assistant keep your image sharp. Power the F-5A using a separately available battery and either the integrated Sony L-series type battery plate, the included D-Tap cable, or via a separately available AC power supply. Tally is supported by the connector on the back of the monitor.

  • Audio level meter display
  • Blue only/mono
  • Focus assist
  • H/V delay
  • H/V flip
  • Key lock (locks the settings)
  • Luma (‘Y) zone check
  • Marker
  • Max brightness off/on (120/500 cd/m²)
  • Timecode display
  • User aspect ratio selection
  • Various scan modes
  • Waveform monitor
  • Vectorscope
  • Zoom
  • ARRI camera metadata
  • Split zoom
  • Anamorphic de-squeeze
  • Sleep mode
  • Auto image flip
  • Tally
  • Audio Level Meter Display
  • Blue Only/ Mono
  • Focus Assist
  • H/V Delay
  • H/V Flip
  • Key Lock
  • Luma(Y’) Zone Check
  • Marker
  • Max Brightness On/ Off
  • Range Error
  • Time Code Display
  • User Aspect
  • Various Scan Modes
  • Waveform/ Vector
  • Zoom
  • Camera Lut
  • Arri Camera Metadata
  • Split Zoom
  • Anamorphic Desqueeze
  • Sleep Mode
  • Sharpness + Peaking Boost
  • Auto Flip

Brand

TvLogic
