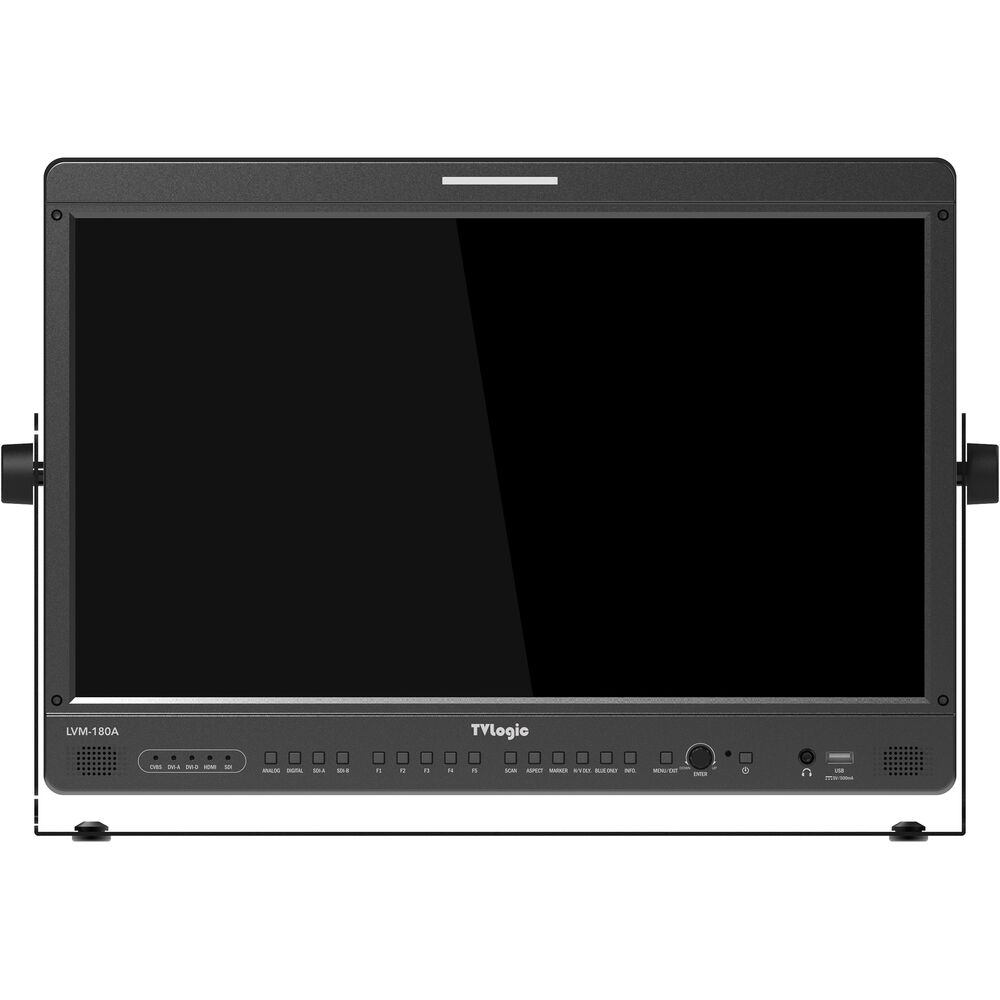

TV Logic LVM-180A 18.5in LCD Monitor

£1,920.00 Ex VAT

OVERVIEW
TVLogic LVM-180A (LVM180A) 18.5inch 1920×1080 Wide Viewing IPS LCD Monitor tvlogic-lvm-180a-18.5in-monitor / TVL-LVM-180A. The LVM-180A is 18.5” model with a 18.5 inch IPS LCD panel with 1920×1080 native resolution, 500 nit, enhanced contrast ratio and wide viewing angle all unmatched by other LCD monitors. A completely redesigned video processing unit provides powerful performance and artifact-free image reproduction. Support for various cinema camera log-to-linear LUTs, easy field upgradability and a full array of image processing features are standard.
Blue Only / Mono
Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the colour tones (tones and saturation) of the screen using the SMPTE Colour Bar. For example, after displaying the Blue channel, adjust the Colour (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Focus Assist<…

SUMMARY
Screen Size: 18.5 Inch
Video Resolution: HD 1080
Resolution: 1920 x 1080
Aspect Ratio: 16:9
Panel Type: IPS LCD

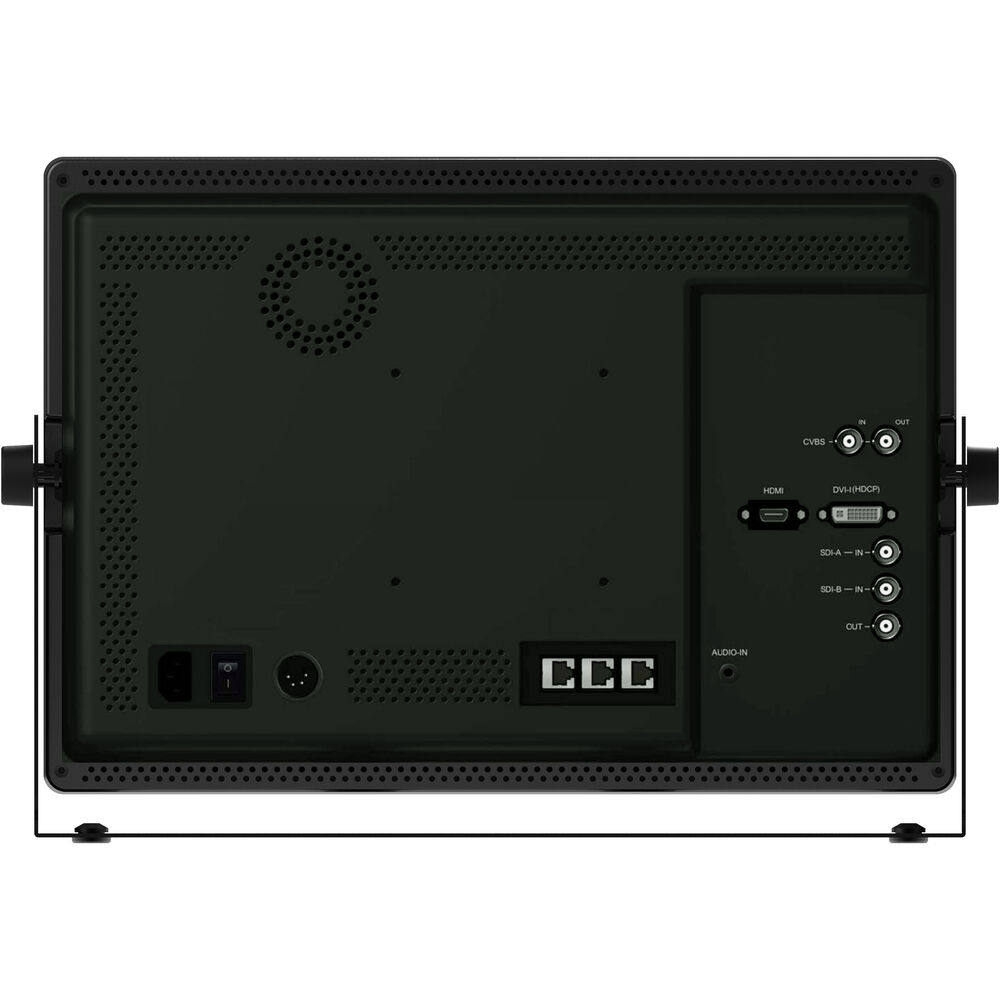

Inputs:

BNC
DVI
HDMI
Outputs: BNC
Monitor Location: Studio
INCLUDED IN BOX

1x LVM-180A Monitor

1x AC Power Cable

1x Stand

About The TV Logic LVM-180A 18.5in LCD Monitor

The LVM-180A is 18.5” model with a 18.5 inch IPS LCD panel with 1920×1080 native resolution, 500 nit, enhanced contrast ratio and wide viewing angle all unmatched by other LCD monitors. A completely redesigned video processing unit provides powerful performance and artifact-free image reproduction. Support for various cinema camera log-to-linear LUTs, easy field upgradability and a full array of image processing features are standard.

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the colour tones (tones and saturation) of the screen using the SMPTE Colour Bar. For example, after displaying the Blue channel, adjust the Colour (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Focus Assist

Assigns a colour to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

H/V Delay

Allows you to check the Blanking area and synchronise signals by displaying the horizontal and vertical intervals in the center of the screen.

Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorised users cannot change the setting of the monitor.

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line colour and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Range Error

Analyses the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.Vector Scope: Displays the colour components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

  • 3G-SDI Level A/B – Supports 3G-SDI Level A/B input.
  • Audio Level Meter Display – Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.
  • Time Code Display
  • UMD – Displays user customized 8 characters or source ID or Tally signal of Ancillary (ANC) data on the screen.
  • Professional Features – including Blue Only, Focus Assist, H/V Delay, Zoom, CC-608 ANC, CC-608 LINE 21, CC-708
