Vaxis Breakout Box For RED Komodo

£331.17 Ex VAT

Vaxis Breakout Box For RED Komodo VAR21-06 (VAR2106) vaxis-breakout-box-red-komodo-var21-06 / VAR21-06

Category:

OVERVIEW

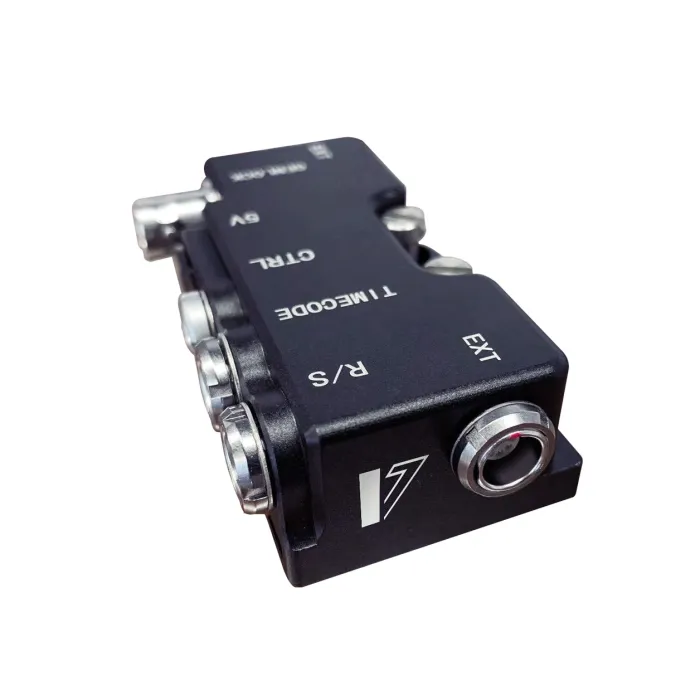

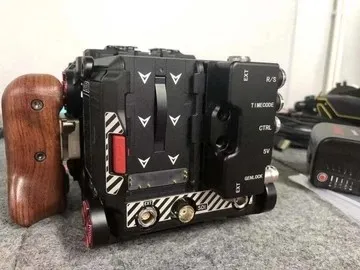

B-Box (RED KOMODO) is connected to the BP-9 battery slot on the right side of the camera and provides a breakout cable for the EXT connector of the camera. Battery Slide Pro V-Mount or Gold Mount for RED KMODO can be used at the same time. Customized right-angle 360-degree rotating elbow connectors allow neat cable operation. When using the B-Box, the Canon BP-9 battery can also be installed in the slot on the left side of the camera, or fixed on the device with a 1/4 screw.

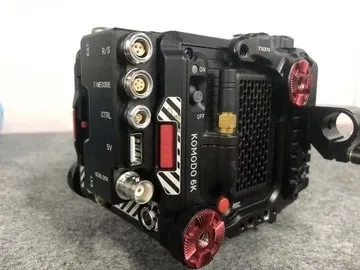

Available Ports Include:
-R/S (3PIN FISCHER)
Simple runop of the handle trigger box, simple 3-pin Fischer trigger cable, etc.
No power available
Devices like ARRI WCU-4 may require a CTRL port interface with cable K2.0015758
pin1:GND, pin2:N/C, pin3:GPI

-TIME CODE (0B 5PIN)
Standard wiring of time code input/output
pin1:GND, pin2:LTC-IN, pin3:N/C, pin4:N/C,…
INCLUDED IN BOX
1 x RED KOMODO Breakout Box

B-Box (RED KOMODO) is connected to the BP-9 battery slot on the right side of the camera and provides a breakout cable for the EXT connector of the camera. Battery Slide Pro V-Mount or Gold Mount for RED KMODO can be used at the same time. Customized right-angle 360-degree rotating elbow connectors allow neat cable operation. When using the B-Box, the Canon BP-9 battery can also be installed in the slot on the left side of the camera, or fixed on the device with a 1/4 screw.

Available Ports Include:

-R/S (3PIN FISCHER)

Simple runop of the handle trigger box, simple 3-pin Fischer trigger cable, etc.
No power available
Devices like ARRI WCU-4 may require a CTRL port interface with cable K2.0015758
pin1:GND, pin2:N/C, pin3:GPI

-TIME CODE (0B 5PIN)

Standard wiring of time code input/output
pin1:GND, pin2:LTC-IN, pin3:N/C, pin4:N/C, pin5:LTC-OUT

-CTRL (00B 4PIN)

RED CTRL standard wiring
pin1:GND, pin2:UART-RX, pin3:GPO, pin4:UART-TX

-5V (USB)

5V available, maximum 500mA
May need to enable power in the camera menu

-GENLOCK (BNC)

Standard wiring for genlock
Center: signal, shell: GND

Compatibility RED KOMODO
