Vaxis Storm 3000 DV 1TX 1RX Kit

Vaxis Storm 3000 DV 1TX, 1RX Wireless Transmission Kit (P/N VS19-3000DV-TR01) vaxis-vs19-3000dv-tr01-storm-3000-dv-tx-rx-kit / VS19-3000DV-TR01

Category:

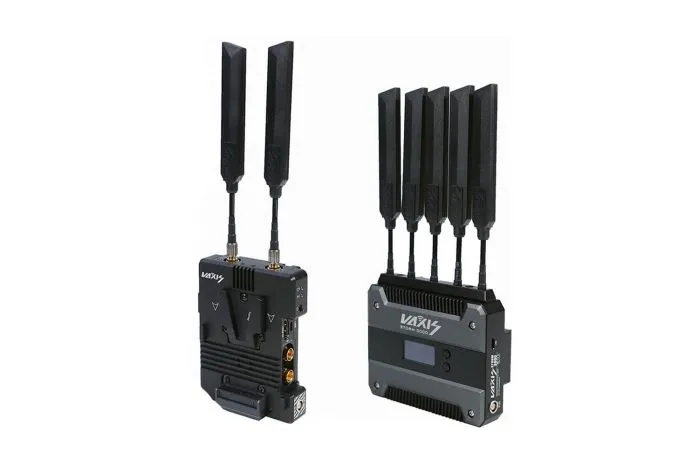

Vaxis Storm 3000 DV 1TX 1RX Wireless Transmission Kit
The Storm 3000 from Vaxis features a 3000′ range and supports up to 1080p60 uncompressed signal transmission with less than 1 ms of latency over the 5.1 to 5.9 GHz frequency.

The transmitter features 3G-SDI and HDMI inputs plus a 3G-SDI loop output, and the receiver has dual 3G-SDI simultaneous outputs and an HDMI output. Both units come with V-mount battery plates. Both also support continuous power via 2-pin LEMO power inputs. Two D-Tap to LEMO cables are included.

Other features include OLED displays, multicasting, timecode and metadata support, ARRI ALEXA Mini instant playback, and smart active cooling that allows for extended operation in hot environments. Both units are designed with a robust metal housing.

Key Features

Up to 1080p60 uncompressed transmission
3000′ range with less than 1 ms of latency over 5.1-5.9 GHz frequency
User-configurable frequency bands
Transmitter: SDI input, HDMI input, SDI loop output; V-mount battery plate
Receiver: 2 x SDI outputs, HDMI output; V-mount battery plate
2-pin LEMO power inputs
WHDI (MIMO/OFDM) technology
ARRI ALEXA Mini instant playback
Smart active cooling, allowing extended operation time in hot environments
OLED screens
Timecode and metadata support
Multicasting
All-metal housing
Less than 63mW radio power
1/4″-20 mounting thread on the bottom of each unit

Up to 1080p60 uncompressed transmission
3000′ range with less than 1 ms of latency over 5.1-5.9 GHz frequency
User-configurable frequency bands
Transmitter: SDI input, HDMI input, SDI loop output; V-mount battery plate
Receiver: 2 x SDI outputs, HDMI output; V-mount battery plate

Brand

Vaxis
