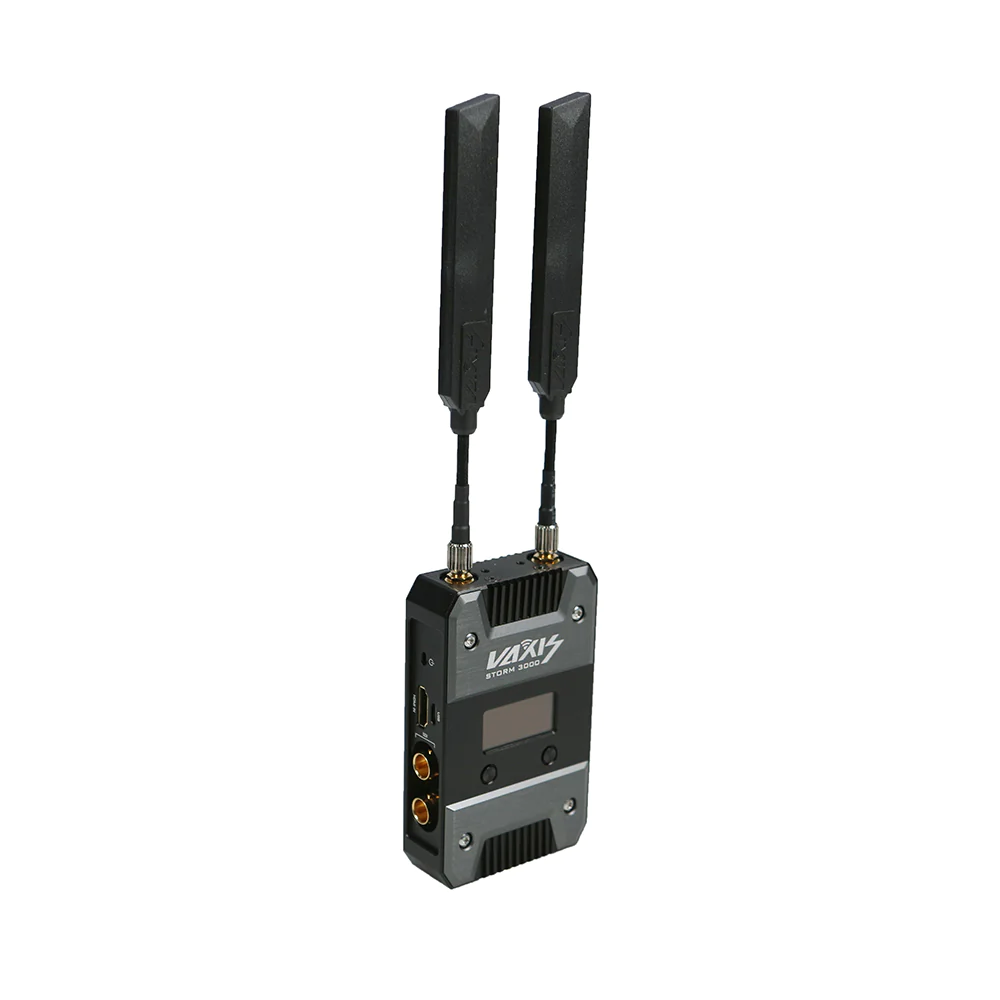

Vaxis Storm 3000 DV 1TX 2RX Kit

£7,694.10 Ex VAT

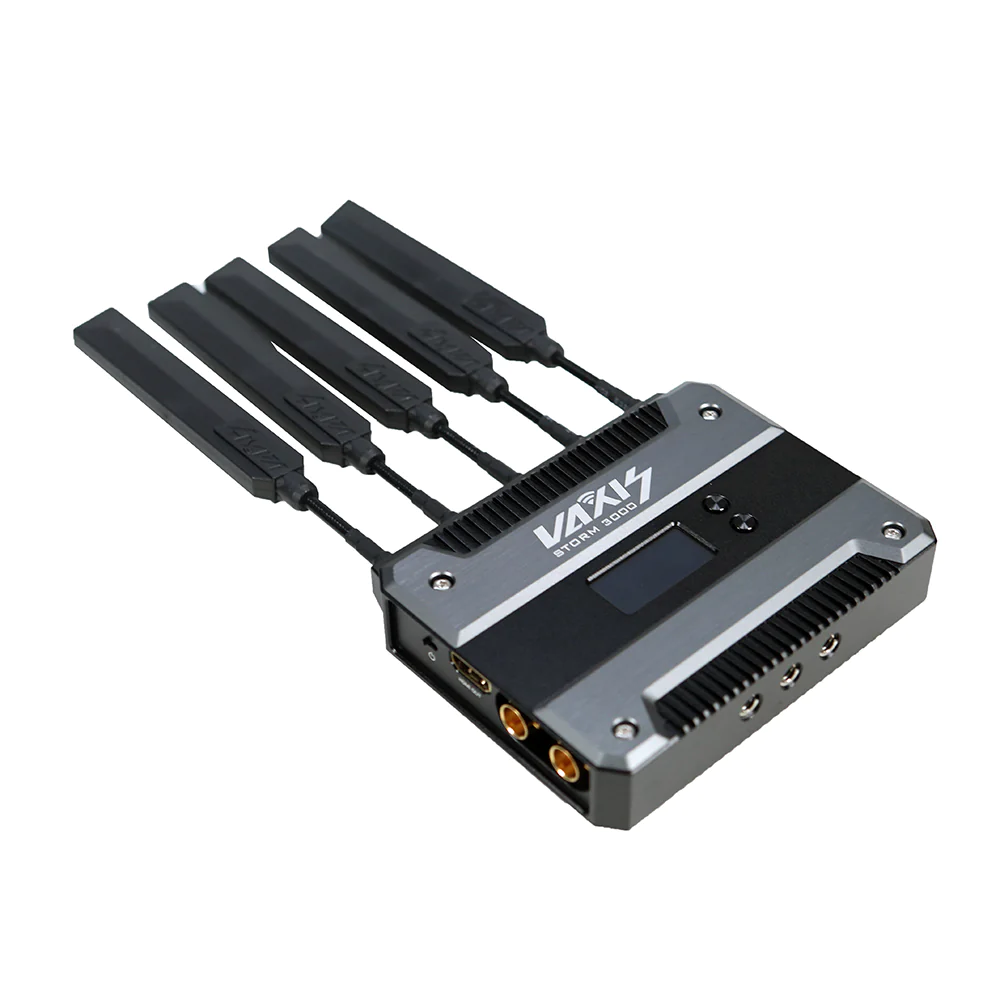

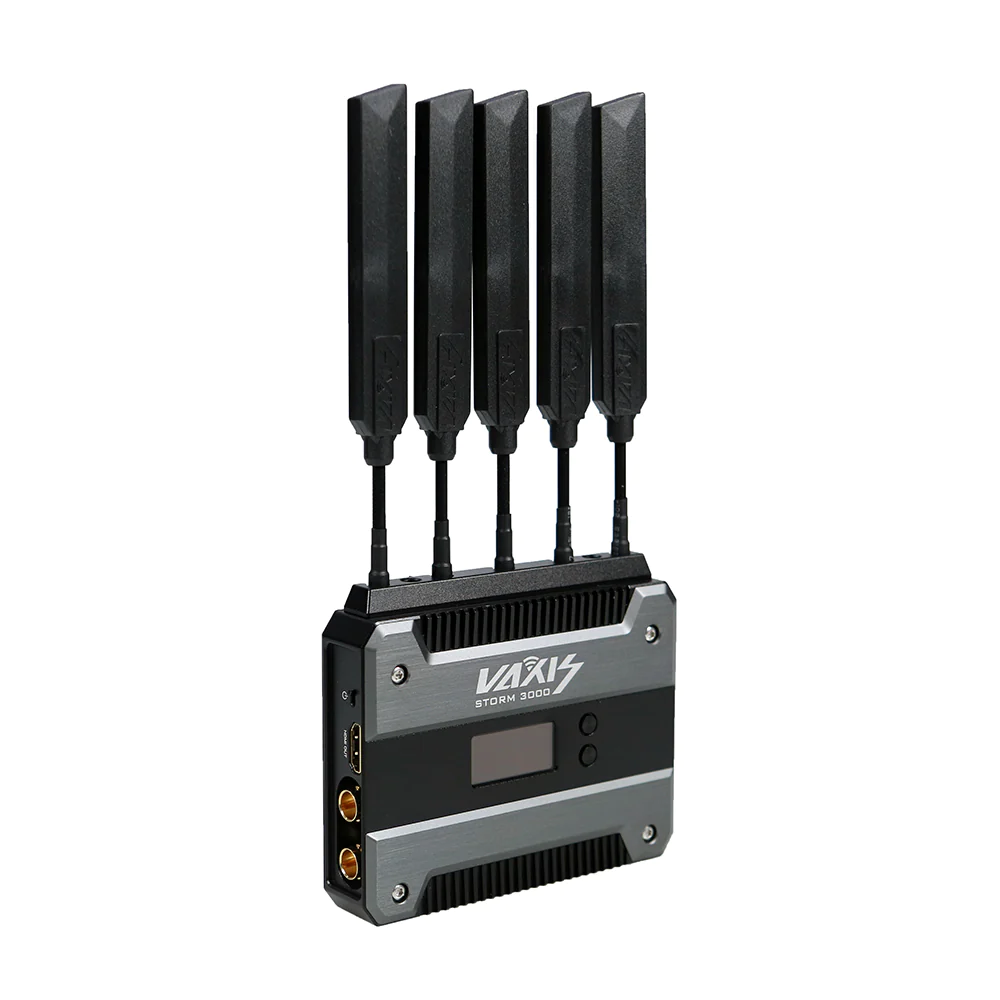

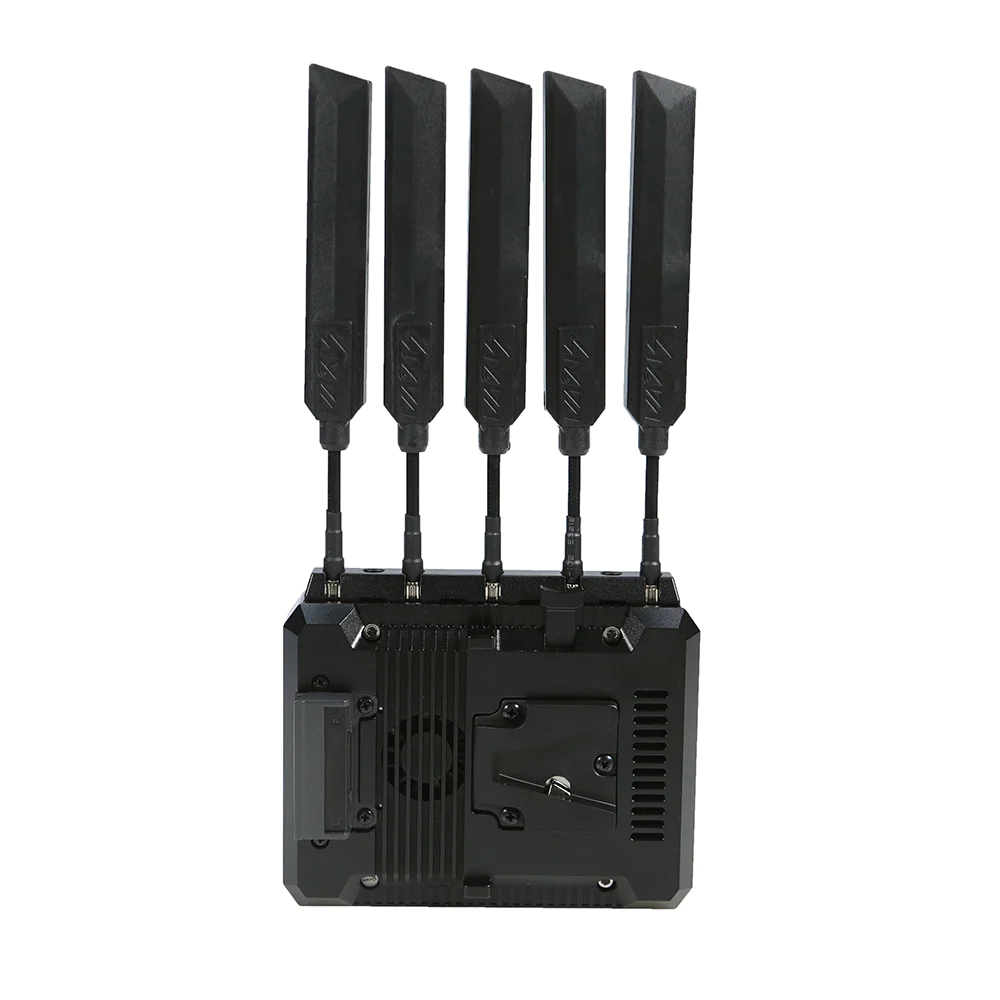

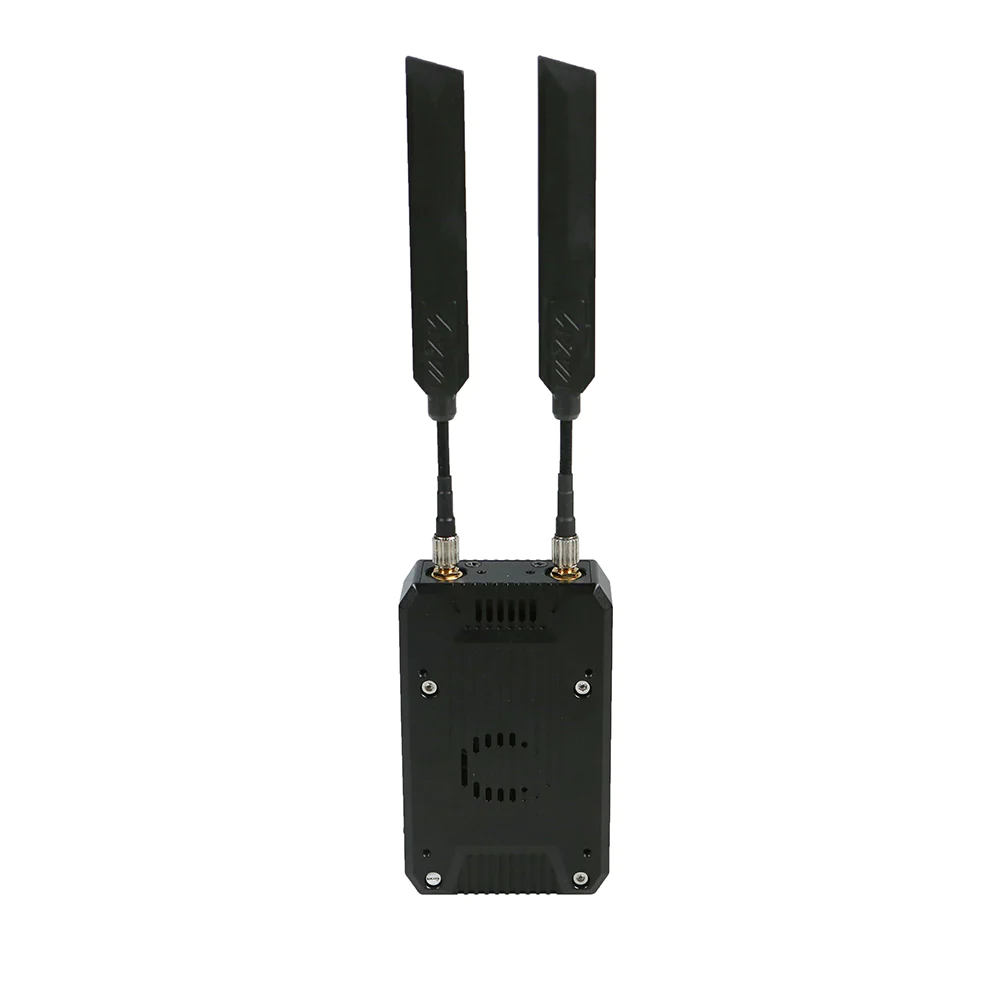

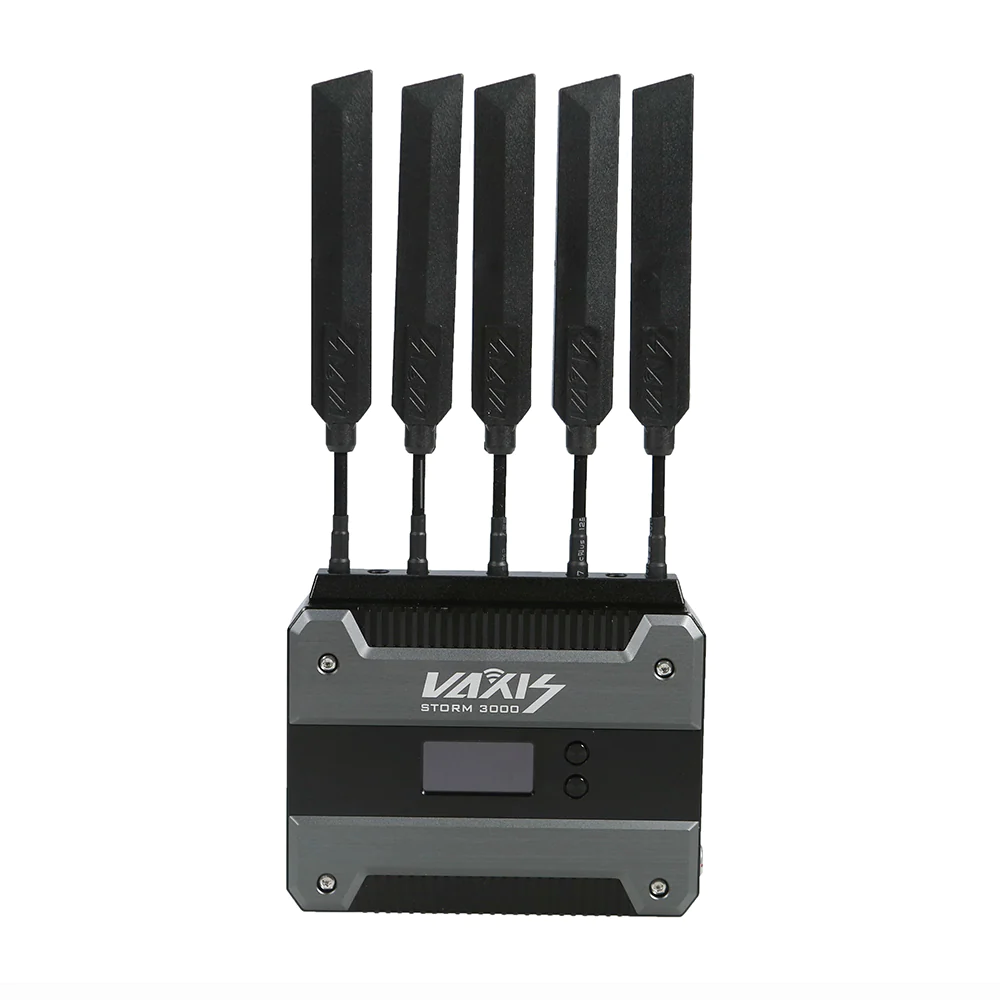

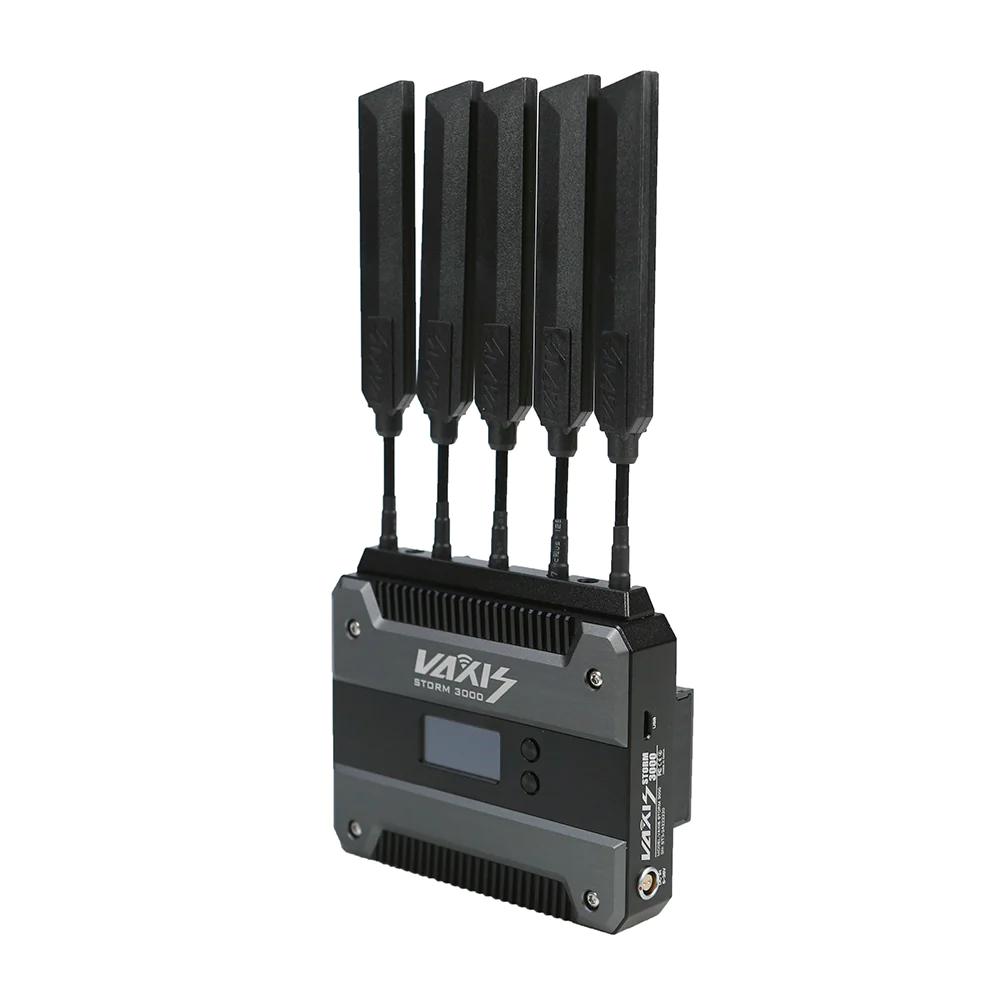

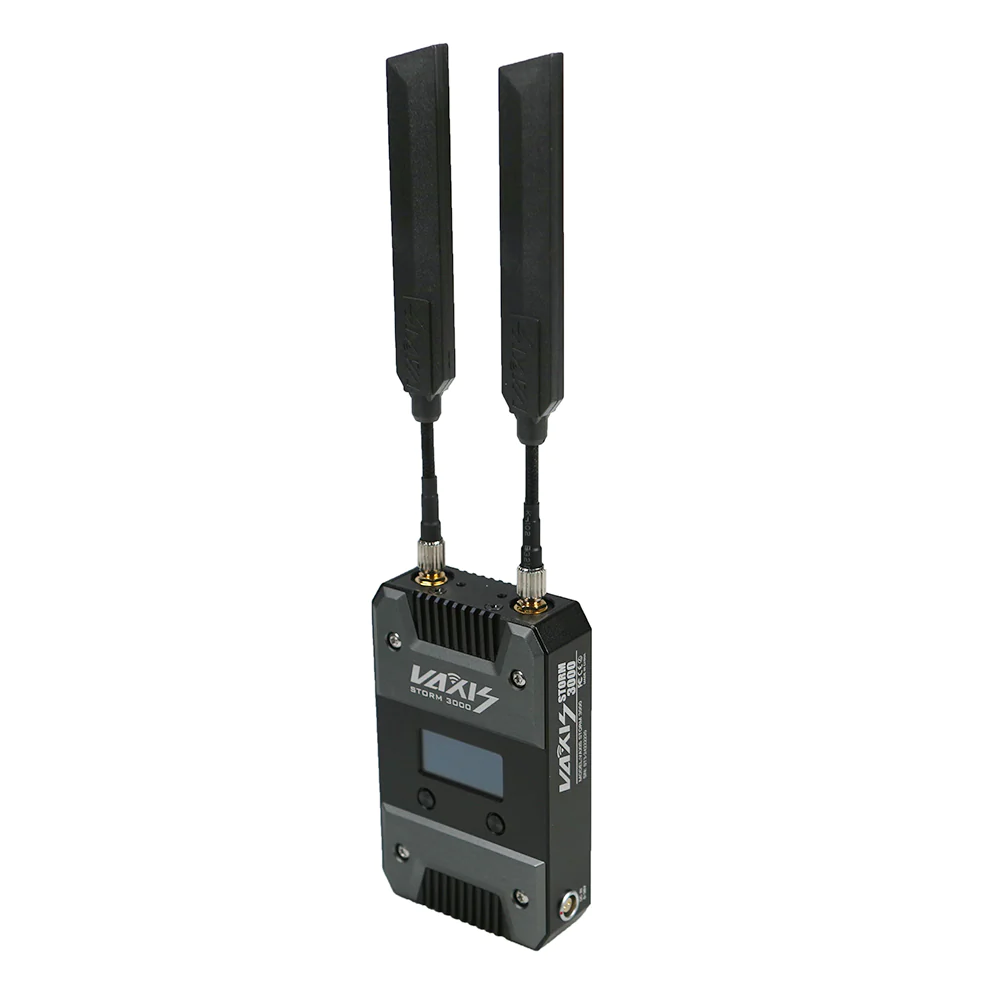

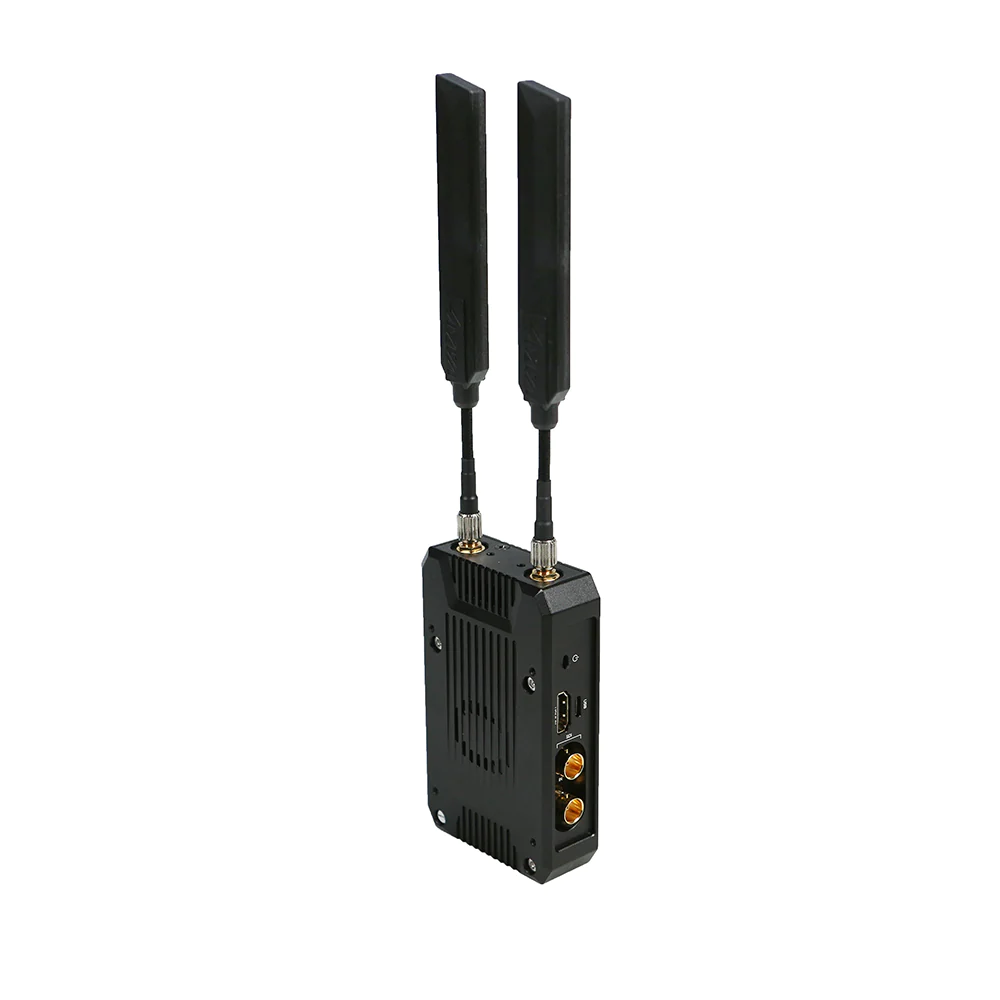

Vaxis Storm 3000 DV 1TX, 2RX Wireless Transmission Kit – VS19-3000DV-TRR01 (VS193000DVTRR01) vaxis-storm-3000-dv-tx-2-rx-kit-vs19-3000dv-trr01 / VS19-3000DV-TRR01

OVERVIEW
Exquisite side screen, intuitive info display
The Vaxis 3000DV has been thoughtfully designed all the way down to the new side panel display screen, which allows for easier access and viewing of the menu and functions.

Light,thin and fast
Storm 3000 DV has been integrated the most internally to compress the size, make it the thinnest and lightest among all the Storm series product and other same level product.

Os Mode
Os Mode perfectly solves playback delay problem of Arri Alexa Mini, and Storm 3000 DV can still be switched backto Normal Mode to fit other cameras.

INCLUDED IN BOX
1x Storm 3000 DV TX
2x Storm 3000 DV RX
1x Short SDI Cable
12x Blade Antenna
2x Short Antenna
2x D Tap Cable
1x Flight Case

Exquisite side screen, intuitive info display

The Vaxis 3000DV has been thoughtfully designed all the way down to the new side panel display screen, which allows for easier access and viewing of the menu and functions.

Light,thin and fast

Storm 3000 DV has been integrated the most internally to compress the size, make it the thinnest and lightest among all the Storm series product and other same level product.

Os Mode

Os Mode perfectly solves playback delay problem of Arri Alexa Mini, and Storm 3000 DV can still be switched backto Normal Mode to fit other cameras.

Line-of-sight distance 1000m
Delay 0 [<1ms] Frequency 5G ISM 40MHz Video format 1080p24/23.98,1080p60/59.94,1080p/50,1080I60/59.94, 1080i50,1080psf30/29.97,1080psf24/25/23.98,720p60/59.94, 720p50,576p60 Work temperature 0-40° Celsius Transmitter: Video interface SDI input(BNC female)/ SDI loopout HDMI input Antenna RP-SMA(x2) with 5bBi antenna Power Connector 2-pin Lemo(input) Voltage 6-36V Size(mm) 118x90x26 Weight 296 grams Up to 1080p60 uncompressed transmission 3000' range with less than 1 ms of latency over 5.1-5.9 GHz frequency User-configurable frequency bands Transmitter: SDI input, HDMI input, SDI loop output; V-mount battery plate Receiver: 2 x SDI outputs, HDMI output; V-mount battery plate 2-pin LEMO power inputs WHDI (MIMO/OFDM) technology ARRI ALEXA Mini instant playback Smart active cooling, allowing extended operation time in hot environments OLED screens Timecode and metadata support Multicasting All-metal housing Less than 63mW radio power 1/4"-20 mounting thread on the bottom of each unit

Brand

Vaxis
