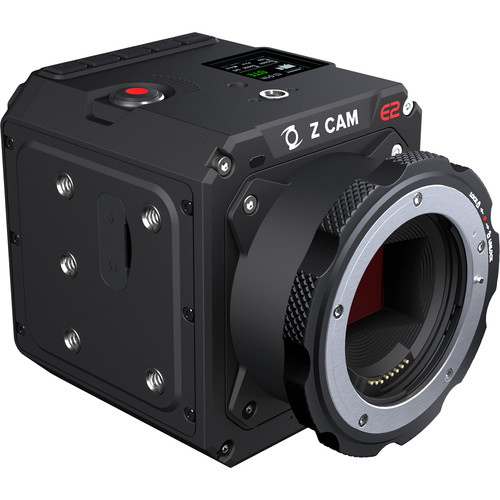

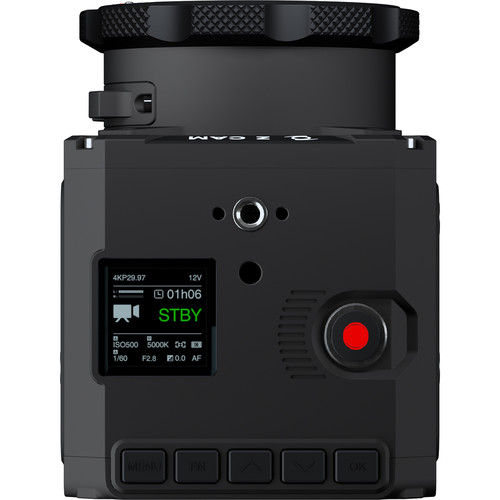

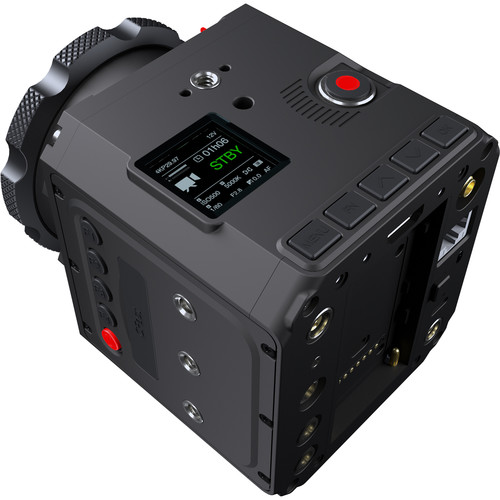

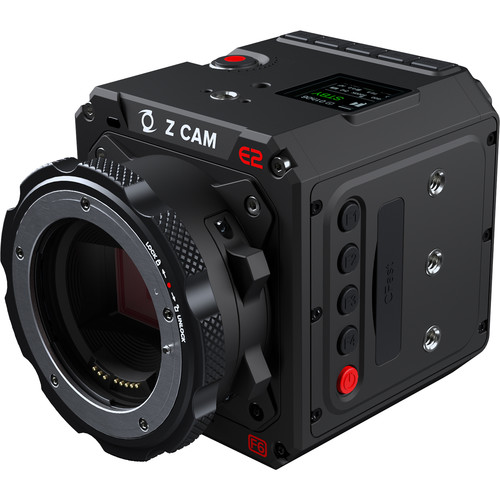

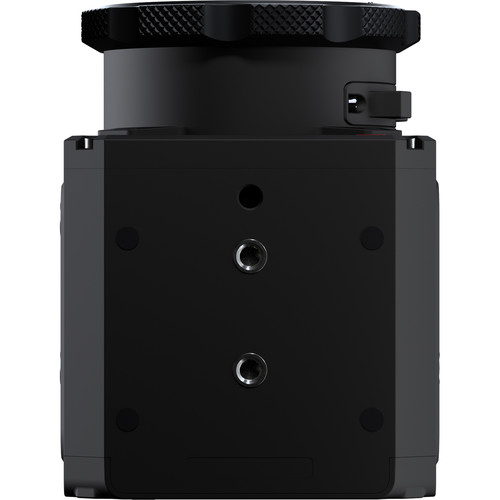

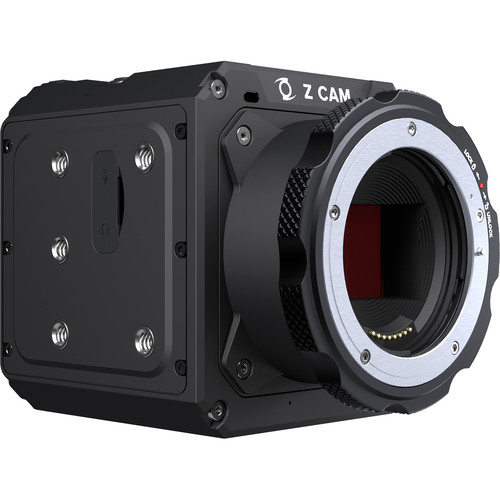

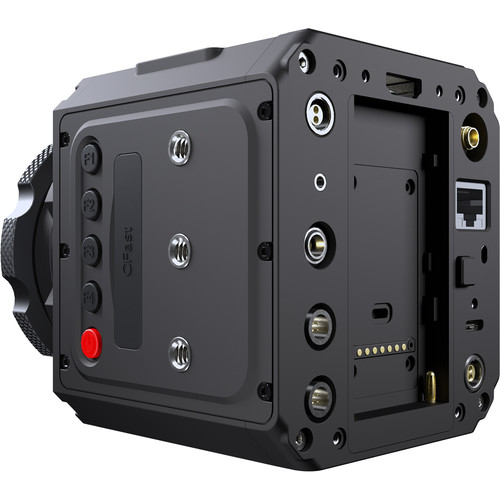

Z CAM E2 F6 6K FF Cine Camera – EF

£2,399.20 Ex VAT


Categories: ,

The Z Cam E2 F6 is a revolutionary Full Frame 6K Cinema Camera with an EF mount, perfect for professional filmmakers and videographers. With its impressive features and advanced technology, this camera is a game changer in the world of cinema.

Capture stunning footage with the ability to shoot 6K at 60 frames per second and 4K at 120 frames per second, delivering exceptional clarity and detail. The 10-bit colour depth ensures rich and vibrant colours, bringing your footage to life.

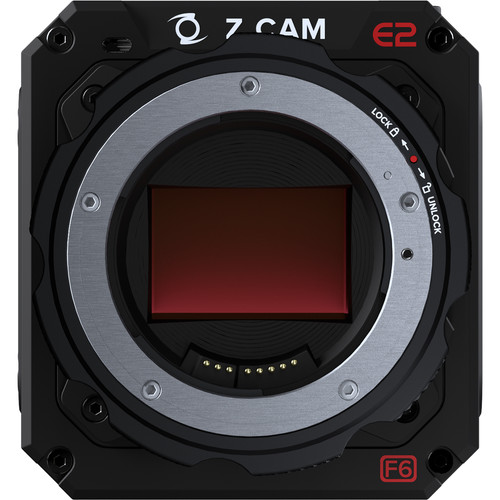

The Full Frame CMOS sensor provides superior image quality and low-light performance, allowing you to capture every moment with precision and clarity. With an impressive 15 stops of dynamic range, you can achieve a wide range of tones and colours in your footage.

ZRAW support gives you the flexibility to capture footage in a raw format, allowing for more control and flexibility in post-production. This feature is perfect for professional filmmakers who want to have full control over their footage.

The Z Cam E2 F6 features an EF lens mount, providing versatility and compatibility with a wide range of lenses. This allows you to achieve your desired look and style for every project.

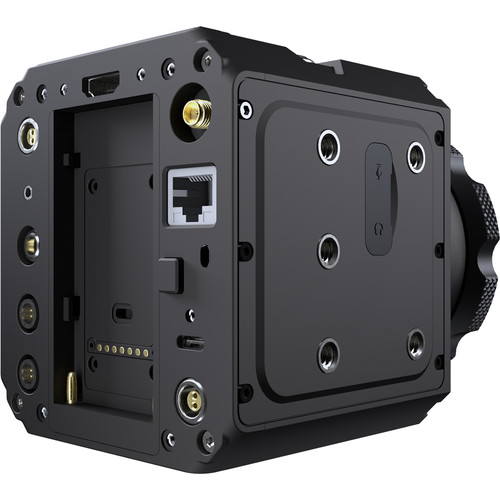

With Gigabit Ethernet, you can easily transfer data, control the camera, and even live stream your footage. This feature is perfect for live events and remote shooting, giving you the ability to control and monitor your camera from a distance.

Download the Z Cam App from the Apple App Store and take advantage of its advanced features for camera control and live preview. With Wi-Fi and USB cable connection, you can easily adjust camera settings and start/stop recording, making your filmmaking experience even more convenient and efficient.

Dynamic Range: 15 Stops
Native ISO: ISO 400
Lens Mount: Locking EF
Recording Formats: ProRes
Internal ND: No
Audio Inputs: 1x 5-Pin LEMO
Shutter: Rolling (Electronic)
Battery Mount / Type: Sony NP-F
Media Type: CFast 2.0
Resolution and Frame Rate: 6K 30p (Open Gate)
Sensor: Full Frame
Video Outputs: 1x HDMI (2.0)
Weight: 0-2kg
Wi-Fi: Yes
1x Z CAM™ E2-F6 6K Cinema Camera – EF Mount

About The Z CAM E2 F6 6K FF Cine Camera – EF
Z Cam E2 F6 Full Frame 6K Cinema Camera with EF Mount.

Z Cam App

Z Cam is a mobile application for camera live preview and control through Wi-Fi / USB cable connection. It can control the camera to start/stop recording and adjust the camera settings, also it has advanced features on camera live preview. It can be downloaded from Apple App Store.

Sensor Type Full Frame CMOS Sensor
Sensor Size 37.09 x 24.75 mm
Effective Pixels 26M
Dynamic Range 15 Stops
Lens Mount EF mount (with optional M, MFT, and PL mount accessory)
Microphone Built-in Stereo Microphone
Resolution & Max Frame Rate 6064×4040 @30fps max (Open Gate)
6064×3196 @48fps max (6K DCI)
6064×2560 @60fps max (6K 2.4:1)
5760×3240 @48fps max (6K UHD)
5376×4032 @30fps max (5K 4:3)
4848×4040 @30fps max (5K 6:5)
4096×2160 @72fps max (4K DCI) *
4096×1728 @120fps max (4K 2.4:1)
3840×2160 @72fps max (4K UHD) *
1920×1080 @120fps max (FHD)
* supersampling / cropping selectable, 4K supersampling is supported at the same frame rates as 6K DCI resolution mode
Video Encoder ZRAW* / H.265 main 10 profile / H.264 high profile**
* up to 4K @30fps
Bit Rate 300 Mbps max for H.265 & H.264 / 1.2 Gbps for ZRAW
Colour Bit-depth 12-Bit ProRes RAW / 12-bit ZRAW / 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
Audio Format 24-bit 48 kHz
Audio Encoder AAC / PCM (for MOV only)
File Format MOV / MP4
Record Mode Video / Time Lapse Video
ISO Auto, Manual (400 ~ 125000), Dual Native ISO: 400 / 2500
Shutter Shutter Speed: Auto, Manual (1”~ 1/8000”) or
Shutter Angle: Auto, Manual (1° ~ 360°)
White Balance Auto, Preset, Manual (2300K ~ 7500K)
Focus Mode MF / AF / CAF
Image Brightness / Contrast / Saturation / Sharpness
Image Config Rec.709 / Z-Log2 / FLAT / HLG
Audio Audio In / Out Level
Time Code Current Time / Manual Input
Storage Media CFAST 2.0
File System exFAT
HDMI HDMI 2.0 Type A (video output up to C4K @ 60fps, 10-bit 4:2:2)
USB USB 3.0 Type C for camera control & data transfer only
COM 2 x Serial Port
Remote Control 2.5 mm jack socket (Sony LANC compatible)
Audio-in 3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual channel XLR microphone (require additional XLR audio connector)
Audio-out 3.5 mm stereo jack socket
Wi-Fi 5G, 802.11n with external antenna port
Ethernet Gigabit Ethernet port for control, setting & live streaming
Battery Sony NP-F series compatible, 6.8V ~ 8.4V (Battery not included)
Power Input DC 6.8V ~ 16.8V (2-pin LEMO socket), with LEMO connector
Power Output (AUX) DC 12V (2-pin LEMO socket)
Material Aluminium Alloy
Weight 1090g (EF mount) / 1160g (PL mount)
Dimensions (W x H x D) 91.20mm x 99.25mm x 122.25mm (EF mount)
91.20mm x 99.25mm x 133.35mm (PL mount)
Storage Temperature -20 °C ~ 60 °C
Operation Temperature 0 °C ~ 40 °C

6K @60fps* & 4K @120fps* max, 10-bit color
Full Frame CMOS sensor
15 stops dynamic range
ZRAW supported
EF lens mount**
Gigabit Ethernet for data, control & live streaming***

* In 2.4:1 aspect ratio
** Different hardware variants
*** Requires Z CAM™ software running on PC
