Overview
Please Note: Control Box not included
Modular full-colour RGBWW LED mats with inflatable structural airbags and hook and loop diffusion cloths are available in various sizes ranging from 1×2 to 20×20 feet. Traditional rigid frame softbox options are also available for select sizes. The lamp heads are designed with easy tile replacements and can be powered and controlled using a single control box.
The Aputure INFINIMAT LED & Clear Softbox Pack 8×8 includes an INFINIMAT RGBWW LED 8×8 lamp head and a clear inflatable softbox pack with diffusion cloths and a light control grid. The pack is designed for use with existing INFINIMAT control boxes and allows users to expand their lighting setups by adding additional lamp heads. INFINIMATs are significantly brighter than competitors of the same size, offer pixel control at scale, and can be controlled using various methods such as Sidus Link Bluetooth and DMX/CRMX.
Included in box
1x INFINIMAT Lamp Head 8×8
1x INFINIMAT Clear Softbox 8×8
1x INFINIMAT 1-Stop Diffusion Cloth 8×8
1x INFINIMAT 2-Stop Diffusion Cloth 8×8
1x INFINIMAT Control Grid 8×8
1x INFINIMAT Control Grid Carrying Case 8×8
1x INFINIMAT Control Skirt 8×8
1x INFINIMAT Air Pump Max
1x INFINIMAT 7.5m Head Cable (1600W)
About the Aputure INFINIMAT Clear Softbox Pack 8×8 – UK
Please Note: Control Box not included

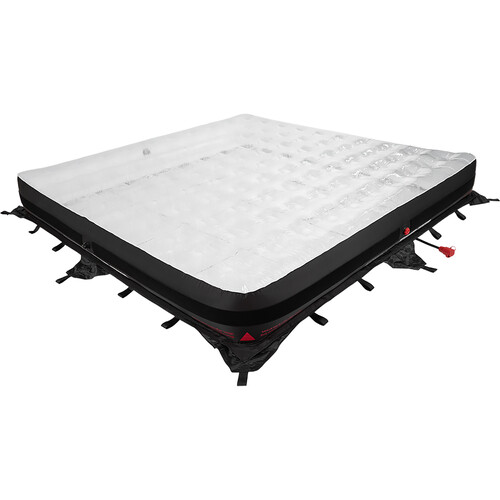

The Aputure INFINIMAT LED & Clear Softbox Pack 8×8 includes one INFINIMAT RGBWW LED 8×8 lamp head and one matching clear inflatable softbox pack complete with diffusion cloths and a light control grid. The clear inflatable softbox provides structural rigidity for the lamp head and can be used clear for maximum output or with the included diffusion cloth for a softer source.
This pack is designed for use with existing INFINIMAT control boxes and allows users to expand their lighting setups by adding additional lamp heads. Control boxes can power multiple lamp heads at once:
400W Control Box: 3 × low-output ports for sizes 2×4 and smaller.
1600W Control Box: 2 × high-output ports for sizes 4×4 and larger, plus 3 × low-output ports for sizes 2×4 and smaller.
Each lamp head connects to the control box using the appropriate high- or low-output INFINIMAT head cable.
Double the Output
INFINIMATs are significantly brighter than competitors of the same size, up to double the intensity. The increased output makes INFINIMAT a production workhorse, even in daylight. INFINIMATs offer a clear airbag with interchangeable diffusion for a smooth surface and selectable softness.
Pixel Control at Scale
All INFINIMATs are colour tuneable and are designed to be configured with other INFINIMATs in pixel arrays. The INFINIMAT 8×8 is a 16-pixel mat. INFINIMAT pixels can be controlled over Sidus Link Bluetooth and DMX/CRMX for active motion effects.
One Controller, Infinite Options
INFINIMAT Control Boxes are universal to the family, making swapping sizes or powering arrays on set simple and quick. Control up to 3 INFINIMATs with a 400W Control Box, and up to 5 mats with the 1600W box.
Infinite Shapes, Minimal Size
INFINIMAT can be used with or without the airbag, strapped in place, or mounted to its frame. The airbag quickly inflates and takes up less space on set than traditional diffusion rigs. When not in use, the INFINIMAT packs down small for storage or travel.
Rental Grade Construction
INFINIMATs are designed to last. IP65 weather protection means a sealed system, which also includes metal backing plates for heat dispersion, rigidity, and physical protection for the LEDs. The internal design of the mats and control box are modular for easy service.
Ultra Low Dimming
The INFINIMATs utilize a dual-dimming internal control system which allows them to dim to extremely low levels without color shift and with fine gradients for a smooth transition. Dimming to as low as 0.1% is possible, up to ten times dimmer than the competition.
Portable Travel Kits
INFINIMATs can store inside their travel cases for shipping and when on set can be staged in their included zipper bags, taking up little space while ready for use. On the 4×4 and smaller sizes the airbag stores deflated on the mat, saving setup time and storage space.
COLOUR SPECIFICATIONS
CCT 2,000K – 10,000K
CRI ≥96
TLCI ≥97
CQS ≥95
SSI (Tungsten) 84
SSI (D56) 73
TM-30 RF (Average) 92
TM-30 RG (Average) 100
HARDWARE FEATURES
Pixel Count 16 pixels
Pixel Module 2×2
Softbox Inflation Time (Air Pump Max) 2 min
Full-Inflation Duration 2 days
POWER SPECIFICATIONS
Max Power Consumption 2,000 W
Max Power Output 1,600 W
Operating Voltage DC1 & DC2 12 V–16.8 V, 22 V–33.6 V
Operating Voltage AC 100 V ~ 264 V
CONTROL AND FIRMWARE
Control Methods On-board, Sidus Link App, DMX/RDM, CRMX, etherCON
Firmware Upgradeable Sidus Link, USB Drive
Wireless Range (Bluetooth & CRMX) ≤100 m / ≤328.1 ft
Control Box Type INFINIMAT Control Box 1600W
ENVIRONMENTAL SPECIFICATIONS
Weather Resistance Rating IP65
Operating Temperature -20 ºC ~ 50 ºC
Storage Temperature -20 ºC ~ 85 ºC
Control Box Noise Levels High Speed Mode 35.9 dBA
Control Box Noise Levels Medium Speed Mode 34.2 dBA
WEIGHT
INFINIMAT 8×8 32.00 kg
70.55 lbs
INFINIMAT Air Pump Max 3.75 kg
8.27 lbs
Control Box 1600W 19.38 kg
42.73 lbs
Inflatable Clear Softbox 8×8 10.34 kg
22.8 lbs
1-Stop Diffusion Cloth 601 g
1.32 lbs
2-Stop Diffusion Cloth 739 g
1.63 lbs
Light Control Skirt 8×8 3.45 kg
7.61 lbs
Light Control Grid 8×8 3.50 kg
7.72 lbs
Flight Case (INFINIMAT LED & Clear Softbox 8×8) 40.00 kg
88.18 lbs
Rolling Case (Control Box 1600W Pack) 7.50 kg
16.53 lbs
DIMENSIONS
INFINIMAT 8×8 239.0 x 239.0 cm
7.8 x 7.8 ft
INFINIMAT Air Pump Max 34.8 x 17.8 x 17.8 cm
13.7 x 7.0 x 7.0 in
Control Box 1600W 27.3 x 26.2 x 55.0 cm
10.8 x 10.3 x 21.7 in
Inflatable Clear Softbox 8×8 239.0 x 239.0 x 27.0 cm
7.8 x 7.8 x 0.9 ft
1-Stop or 2-Stop Diffusion Cloth 236.5 x 236.5 cm
7.8 x 7.8 ft
Light Control Skirt 8×8 235.0 x 234.0 cm
92.5 x 92.5 in
Light Control Grid 8×8 230.0 x 230.0 cm
7.6 x 7.6 ft
Flight Case (INFINIMAT LED & Clear Softbox 8×8) 73.0 x 65.0 x 73.0 cm
28.7 x 25.6 x 28.7 in
Rolling Case (Control Box 1600W Pack) 68.0 x 45.0 x 40.7 cm
26.8 x 17.7 x 16.0 in
Modular full-colour RGBWW LED mats with inflatable structural airbags and hook and loop diffusion cloths
1×2, 1×4, 2×4, 4×4, 8×8, and 20×20 (ft) options available
Traditional rigid frame softbox options separately available for 1×2, 1×4, 2×4, and 4×4 sizes
400W and 1600W control boxes available (depending on size of INFINIMAT)
Multiple mounting/rigging methods (carbon fibre bracket with K-Mount ball head for 1×2, 1×4, 2×4, & 4×4; butterfly frame for 4×4 & 8×8; truss and speed-rail frame for 8×8 & 20×20)
Lamp heads designed with 1×2 foot or 2×2 foot tiles for easy tile replacements
Power and control multiple INFINIMATS using a single control box (400W and 1600W control boxes available)
AC power passthrough enables multiple 400W power supplies to be daisy chained via Neutrik PowerCon cables
INFINIMAT 400W control box features dual V or Gold Mount battery mounts for mobile power
INFINIMAT 1600W control box supports battery operation via dual 48V DC inputs
Head-to-toe IP65 dust & water-resistant rating for lamp head and control box
Inflatable airbag provides Structural Support for lamp head, diffusion, light control grid, and light control skirt
Automatic pressure release valves on inflatable airbags to prevent overfilling of air
Included airbag repair patches to ensure continued operation of airbag even when punctured
Included light control grid and light control skirt
>90% of colours within Rec.2020 colour space
Fully tuneable CCT from 2,000K to 10,000K
Fully tuneable green-magenta adjustment
0.1-100% stepless dimming with improved low-end dimming performance
Advanced HSI with white point CCT control
Industry-standard xy (CIE 1931), RGB, Light Source, and 300+ Gel presets
Multiple control methods: Sidus Link App, Sidus Link Pro, CRMX, Art-net & sACN via etherCON, 16-bit 5-Pin DMX512 In & Out
2 output modes: Max & Constant
