BirdDog 3x X5U and PTZ Controller – White

Overview
BirdDog X5 Ultra features next-level image quality with the latest Sony image sensor, ensuring stunning visuals for every production. It also sports the most visible and effective Tally system available, with a large, daylight-visible border keeping talent looking directly at the camera.

X5 Ultra steps up AI capabilities with advanced motor control and subject tracking for more natural and predictable movement. It also has the highest possible NDI® HX3 performance, even in 4K60, and combines NDI HX and SRT/RTMP protocols for seamless connectivity, making it a versatile and high-performance tool for streaming and distribution.

Summary
Focal Length: 5.4mm – 104mm
Max Aperture: f/1.6
Lens Zoom: 20x Optical Zoom
Resolution and Frame Rate: 4K
Sensor: CMOS
Video Outputs:
12G-SDI
Ethernet
HDMI
USB-C
Weight: 2-5kg

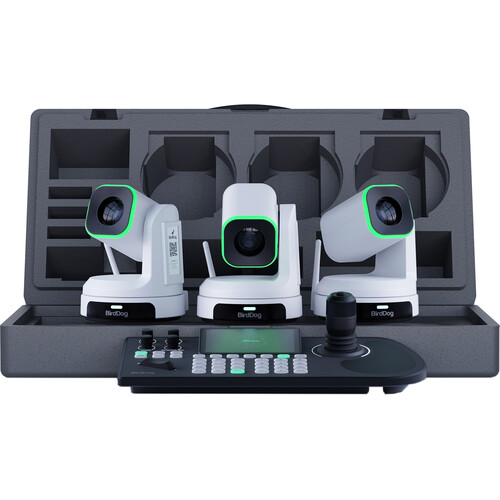

Included in box
3x BirdDog X5 Ultra
1x BirdDog KBD PTZ Controller With Integrated Screen

About the BirdDog 3x X5U and PTZ Controller – White
X5 Ultra. In every way.

Productions are demanding; the X5 Ultra makes demanding a walk in the park. Featuring unparalleled capability, quality, and performance – take your PTZ game up a notch with X5 Ultra.

Imagine next-level robotic controls with ultra-fine and precise movement thanks to its category-busting advanced motor drive system. Movements on air are a breeze, and acceleration/deceleration of moves look natural and slick. Sporting BirdDog’s signature Halo tally system for true audience engagement, revolutionary built-in NDI® decoding*, all the video connectors, including 12G-SDI, dual e-ink displays make branding and maintenance a snap, all wrapped up with a stunning Sony 4K60 image sensor delivering the highest performance NDI® | HX3 possible. X5 Ultra. In every way.

*NDI – HX2 and NDI – HX3 supported.

Halo Tally. A higher order of visual queue

Professional results need professional tools. The X5 Ultra sports the most visible and effective Tally system available. Up front, with a large, daylight-visible border keeping talent looking directly at the camera. Your cast and crew will always know where to look, keeping your audience engaged.

AI Tracking. Built for now and the future

We aren’t playing catch-phrase bingo here. X5 Ultra takes AI auto-tracking and framing to the next level. Featuring an order of magnitude more neural processing capabilities, the out-of-the-box X5 Ultra has incredible AI powers but also the headroom to grow as AI progresses. Magic.

NDI – HX3. Performance meets convenience

The X5 Ultra delivers superior network performance via our implementation of NDI® | HX3. Significantly reducing network impact while maintaining excellent image quality, meaning it is more friendly in more network environments. BirdDog’s NDI® | HX3 surpasses certification parameters, delivering quality and performance you can count on.

Connectivity for days

Video productions all look different. We love NDI® because it allows a single network cable to operate everything, but sometimes it makes sense to take a different path. X5 Ultra makes this a snap. In a world of compromise, the X5 Ultra stands proud. With 12G-SDI output, dual HDMI outputs, multiple network formats, including NDI® | HX3, SRT, RTMP and RTSP, Webcam connectivity over USB, however you work and whatever demand in quality you have, X5 Ultra has got your back for today’s production… and tomorrow’s!

Integrated NDI – HX Decoder. It can’t get much more convenient!

The X5 Ultra is part of the family of PTZ cameras featuring the first simultaneous NDI® | HX* Decoder designed specifically for confidence monitoring, return feeds, or teleprompter usage. We’ve pulled all this connectivity into a single cable, radically simplifying how you interface with your equipment. Less gear. Less hassle. Less complexity. Whether you’re broadcasting live or delivering a CEO address, the integrated NDI® | HX decoder enables more engagement with less setup.
*NDI® | HX2 and NDI® | HX3 supported.

E-ink Label. Get Inked.

The dual, always-on e-ink labels on the X5 Ultra are a game-changer. From network addresses for easy access to controls to customisable logos* to complement your brand image, this cool feature ensures that your set-up is clear and each camera is easily identifiable even when the power is off.

One Ring. To Filter them all.

Adding an ND Filter or Polariser to X5 is a cinch with its 49mm filter ring. Get rid of pesky reflections, dial in your highlights and make your next production feel more ‘Hollywood’.

Hobbit TikTok filter not supported. Sorry.

Advanced features in BirdUI.

BirdUI gives complete access to every function of your X5 Ultra, all within a beautiful and intuitive interface. As a browser-based application, it can be accessed from anywhere on the same network as the X5 Ultra.BirdUI adds features including a dashboard for monitoring the camera and light/dark modes to suit your production environment.

BirdDog KBD PTZ Controller With Integrated Screen

Built for Seamless Control and Comfort

KBD is crafted for those who rely on precision and ease in their workflow. With a rugged, ergonomic design, it’s built for comfort, featuring a hand-rest area and tactile controls for all-day use.

Super-fine Control Mode

When it’s time to fine-tune, you can easily shift the camera joystick into ‘fine-tune’ mode, increasing the sensitivity of the joystick by 10x, making reframing shots on air more artistic flair than nail-biting scare.

Expanded Screen. Instant Camera Control

The big screen allows you to monitor up to four cameras at once or focus on one full screen. Pairing and switching between cameras is just a single press away, with a tactile button that gives instant feedback under your finger, making transitions smooth and intuitive.

The KBD’s screen offers live previews for NDI-HX2/HX3 cameras and key text-based details for others, ensuring seamless compatibility and clarity across your workflow.

Built-in Tally Borders

Pairing and switching between cameras is just a single press away, with tactile buttons providing instant feedback under your finger for smooth, intuitive transitions. When integrated with mixers like TriCaster or vMix, KBD’s built-in tally border shows the live camera directly on the keyboard, so you can stay focused without looking at other screens.

Camera Setting Sync

An industry-first feature, you can tune one camera to look exactly how you like, and then simply copy those settings directly to another camera of the same model (BirdDog X series function). Making it easy to dial your cameras in and take your production quality to the next level.

Direct Access to Key Functions

No more endless menu diving! KBD brings you straight to the essentials. With its streamlined layout, operators can access camera pairing, switching, and configuration in seconds. It’s all there, clear and accessible, thanks to user feedback that’s shaped a truly friendly experience.

Ultimate Connectivity in an Eco-Friendly Design

BirdDog KBD connects seamlessly through NDI, VISCA, ONVIF, RS-232, and RS-422, making it versatile for any setup. And with a commitment to sustainability, it’s made using ocean-bound plastics, reducing environmental impact.

Affordable Innovation

With enhanced features and a lower price than its predecessor, KBD is refined through user insight, offering unmatched comfort, control, and eco-consciousness for the modern PTZ camera operator.

X5 Ultra
Image Sensor
Sony 1/2.8” CMOS -ULTRA HD
Lens f=5.4mm – 104mm
Optical Zoom 20x
Video Format 2160p @ 60, 59.94, 50, 30, 29.97, 25fps
1080p @ 60, 59.94, 50, 30, 29.97, 25fps
720p @ 60, 59.94, 50fps
Horizontal angle of view 56.6º (W) – 3º (T)
Vertical angle of view 32.5º (W) – 1.7º (T)
Diagonal angle of view 64.7º (W) – 3.5º (T)
Aperture F1.6 ~ 3.6
Focus Auto, Manual
Exposure Auto, Shutter Priority, Iris Priority,
Manual, BLC, WDR
Shutter Speed 1/1 – 1/10000s
Backlight Compensation YES
Digital Noise Reduction 3D Noise Reduction
SNR >50dB
Effective Pixels 8.46MP
Filter Ring Ø49mm
AI Tracking Present
MECHANICAL
Pan/Tilt Rotation ±170º, -30º ~ +90º
Pan Control Speed 0.1 -200º/sec
Tilt Control Speed 0.1 -200º/sec
Preset Number 128 Presets, Speed
Adjustable
Integrated Tally Light Halo Style, RGB
Pan/Tilt Drive System Ultra-fine Drive
Quietness Max 28dB at full speed pan
I/O INTERFACE
Video Output Interfaces 12G-SDI, HDMI 2.0, HDMI 1.4,
USB-C UVC 1.1, 1Gb Network
Video Compression Formats H.264, H.265
Network Interfaces 1GbE adaptive Ethernet port;
POE+ IEEE 802.3a
Encoder Network Protocols NDI®-HX2, NDI®-HX3, SRT, RTSP, RTMP
HDMI Decoder Network Protocols NDI®-HX2, NDI®-HX3
Decoder supported resolutions 1080p @ 60 / 59.94 / 50 /30 / 29.97 / 25fps
720p @ 60 / 59.94 / 50fps
Control Interfaces 1GbE Ethernet, RS232 (input & output),
RS422, TYPE-C(UVC1.1)
Control Protocols VISCA Baud Rate: 38400/9600/4800/2400,
RS422, TYPE-C(UVC1.1)
Control Protocols VISCA Baud Rate: 38400/9600/4800/2400,
VISCA-IP, NDI®
Analogue Audio 3.5mm (1/4″) Mic In / Line In (Stereo)
Digital Audio Embedded with Main & Secondary HDMI,
12G-SDI, Network Video, USB (UVC)
GENERAL PARAMETER
Environmental Operation Internal
Input Voltage DC 12V, PoE+ IEEE802.3at
Input Current 2.0A (Max.)
Power Consumption 18W (Max.)
Working Temperature 0ºC ~ +40ºC
Working Humidity 20% ~ 80%
Dimension (W*H*D) mm 185.7*171.9*200.90mm (before packing)
271*275*245mm (after packing)
Dimension (W*H*D) in 7.31*6.76*7.90in (before packing)
10.6*10.8*9.6in (after packing)
Net and Gross Weight 2.31kg/3.76kg (Net/Gross weight)
KBD PTZ Controller With Integrated Screen
CAMERA CONTROL
PTZ Control: VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D
Fine PTZ Control: VISCA-IP, NDI
Focus Control: Auto Focus, Manual Focus buttons
Auto Exposure: Direct button
Manual Exposure: Toggle Dial Adjust. Brightness/Shutter/Gain/Iris
Auto White Balance: Direct button
Manual White Balance: Toggle Dial Adjust. R-Gain, B-Gain, Color Temp.
Auto Focus: Direct button
Manual Focus: Direct button (Near/Far)
BLC (Backlight Compensation): Direct button
Zoom ring on Joystick: Adjustable
Programmable Trigger on Joystick: One-Push Focus, AI Tracking, One-Push AWB
AI Camera mode control: Camera Dependent, supported
Copy/Paste Camera settings: Supported on selected BirdDog Cameras (VISCA-IP, NDI)
CAMERA ACCESS
Max. Cameras support: 255
Direct Camera access keys: 6
Direct Preset access keys: 10
Max Preset support: 255 per camera
OSD Camera Menu: Menu button / interaction with Joystick
DISPLAY
Display Resolution: 1280×720
Multiview IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
Full Screen IP Video: Supported, NDI HX (Proxy), RTSP (max. 30 fps)
IP Video CODEC support: h.264, h.265
Tally Borders: Selectable, Multiview and Full Screen mode
On Screen Menu: Fully configurable
Light/Dark Mode: Yes
NDI SUPPORT
NDI Control: NDI HX2, NDI HX3, High Bandwidth NDI
NDI Multiviewer: NDI HX3, NDI HX3
NDI Router: Yes, follows current active camera
NDI Discovery: Supported
NDI Access Manager: Supported
NDI PTZ Sensitivity: Standard (NDI); Superfine (BirdDog Specific)
SETUP/CONFIGURATION
WebUI: BirdUI for setup and firmware updates
Light/Dark Mode: Yes
API-based Camera Selection: Yes
SERIAL CONNECTIONS
RS-232: D-Sub connector (9-pin)
RS-422: Phoenix connector
MECHANICAL
Joystick Type: 4D (Integrated Trigger button)
Keys: 37 Keys; Backlit, Individual Contact, Silicon Pad
Toggle Dials: 4 knobs; Press Button, Graduated, 360° adjust.
Zoom Rocker: Spring loaded, adjustable
Dimensions: 377×177×118mm; 14.84×6.96×4.64in (L×W×H including Joystick)
Construction Material: Aluminium; OBP Ocean-Bound Plastic
Integrated Carry Handle: Yes
Operating Temperature: -10°C to +55°C; 14°F to 130°F
Storage Temperature: -10°C to +55°C; 14°F to 130°F
Operating Humidity: 20% to 80% (Non-condensing)
Storage Humidity: 0% to 90% (Non-condensing)
Power Supply: PoE (802.3af), DC12V
Power Consumption: ≤5W
Packaging Dimensions: 390×215×165mm; 15.35×8.46×6.49in

BirdDog X4 Ultra

4K Brilliance: X5 Ultra features next-level image quality with the latest Sony image sensor, ensuring stunning visuals for every production.
Halo Tally: X5 Ultra sports the most visible and effective Tally system available. Up front, with a large, daylight-visible border keeping talent looking directly at the camera.
AI Tracking: X5 Ultra steps up AI capabilities with advanced motor control and subject tracking for more natural and predictable movement.
NDI – HX3: X5 Ultra has the highest possible NDI® HX3 performance, even in 4K60. Superior image quality and low latency are guaranteed.
NDI – HX Decoder: A simpler, integrated solution that makes it so much easier to incorporate a teleprompter, return feed, or confidence monitoring.
Always-on dual e-ink label: Easily load camera details, name, and IP address for faster set-up, in-production management, and crew communication.
Dual Network Output: X5 Ultra combines NDI HX and SRT/RTMP protocols for seamless, on-premises and remote/CDN connectivity, ensuring ultimate flexibility in both streaming set-ups and distribution.
Serial Control: Take control effortlessly with older control protocols, seamlessly integrating with your existing infrastructure.
USB Webcam: X5 Ultra features USB-C for connecting directly to Zoom, Teams, and most apps that support a USB UVC input.
Control support. The X5 Ultra ships with its own IR remote, plus hardware control support for BirdDog PTZ Keyboard, Skaarhoj, and more.
BirdDog Apps. X5 Ultra is compatible with BirdDog Central and BirdDog Cloud.

BirdDog KBD PTZ Controller With Integrated Screen

The Ultimate Tool for PTZ Camera Control
All-Day Comfort Built with a rugged, ergonomic design, including a hand-rest area and tactile controls for seamless, extended use
Super-Fine Control Mode Switch to ‘fine-tune’ mode for l0x joystick sensitivity, perfect for precise, on-air reframing with ease
Expanded Screen Control Monitor up to four cameras simultaneously or focus on one in full-screen mode*. Pair and switch cameras with a single press
Integrated Tally Borders Effortlessly switch cameras with tactile feedback and built-in tally borders showing live feeds directly on the keyboard, integrated with TriCaster and vMix
Effortless Camera Settings Sync An industry first! Copy settings from one XSeries camera to another in seconds
Streamlined Access No more menu diving! Access essentials like pairing,switching, and setup instantly for a user-friendly experience
Ultimate Connectivity Supports NDI®, VISCA, ONVIF, RS-232, and RS-422,ensuring versatility across workflows
Affordable Innovation Refined through user insight, KBD offers unmatched precision, comfort, and eco-conscious design-all at an accessible price
Crafted with ocean-bound plastics and recyclable aircraft-grade aluminium, it reflects a commitment to sustainability
