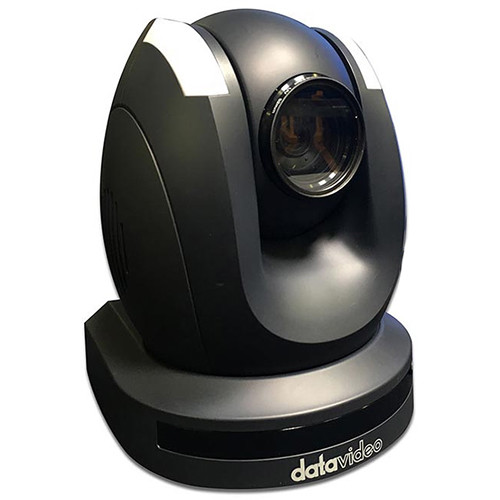

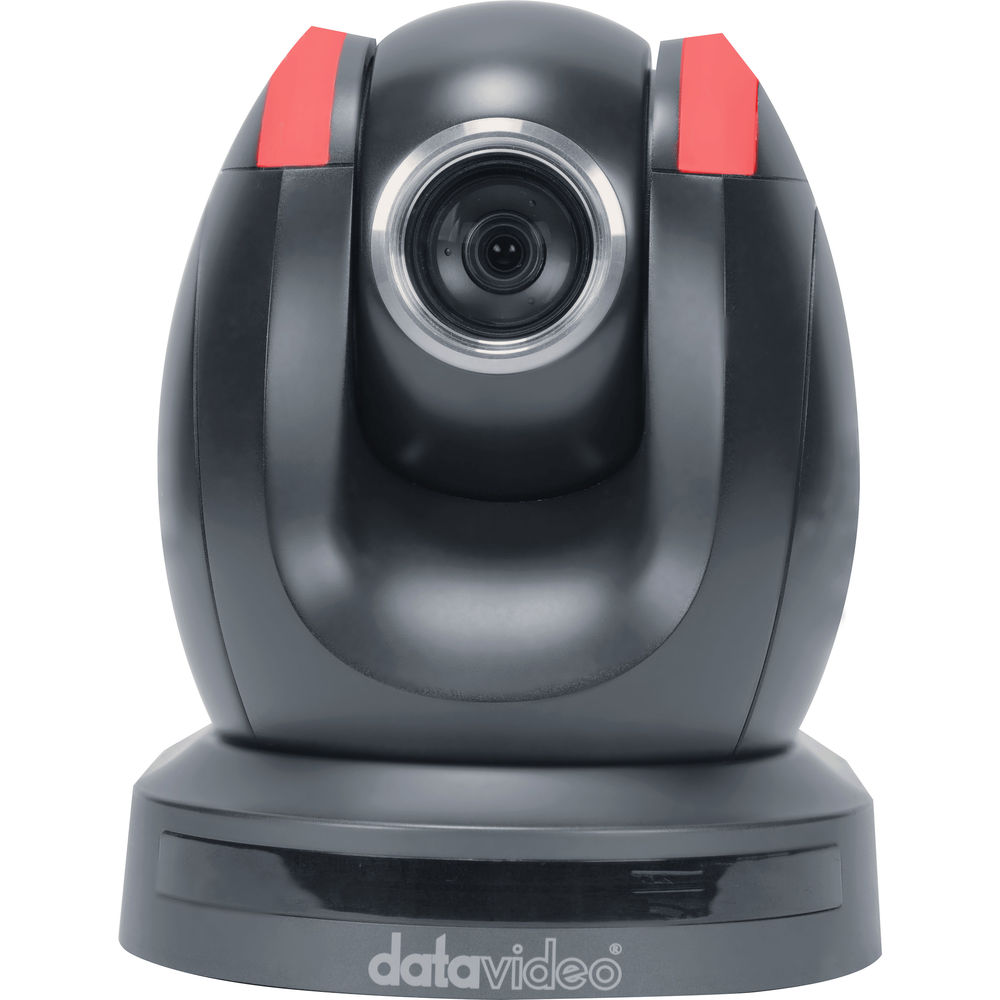

Datavideo PTC-150TL PTZ Camera – Black

£1,638.00 Ex VAT



The Datavideo PTC-150TL PTZ Camera in black is a versatile and high-quality camera perfect for studio use. With its 30x zoom capability, this camera allows for clear and close-up shots of your subject, whether it’s positioned near or far from the camera.

Featuring HDBaseT Technology, this camera only requires a single Ethernet cable for video, power, control, and tally, making setup and operation a breeze. The camera also has digital noise reduction for smooth and beautiful image quality, even in low lighting conditions.

For precise control, the PTC-150TL offers both auto and manual options for iris control and white balance, allowing for fine-tuning and calibration of multiple cameras. It also has built-in tally lights that work seamlessly with Datavideo Switchers, with a red light indicating live and a green light for up-next.

Compatible with the RMC-180 Controller, this camera is easy to operate and can be mounted on a wall, ceiling, floor, or tabletop. It is specifically designed for use with the HS-1500T Portable Video Studio, making it the perfect addition to your studio setup.

The PTC-150TL captures HD video at 1920 x 1080 resolution and has a wide dynamic range with backlight compensation. It also has a motorized 30x optical zoom and image mirror and rotation functions for adjusting the image orientation. With 50 programmable presets, you can easily switch between camera positions using the remote or a PTZ controller.

In addition, this camera supports the Sony VISCA protocol for PTZ control using an RS-422 interface over the RJ-45 port. It also has a built-in IR cut filter for low-light shooting and real-time position reporting for virtual studio applications.

Focal Length: 4.3-129mm
Max Aperture: f/4.7
Lens Zoom: 30x Optical Zoom
Resolution and Frame Rate: 1080p @ 60fps
Sensor: CMOS
Video Outputs: 1x HDMI
Weight: 2-5kg
1x PTC-150TL Unit
1x IR Remote Controller
1x Ceiling Mount Bracket A
1x Ceiling Mount Bracket B
1x Ceiling Mount Bracket Screw M3x4mm
1x DC 12V Power Adaptor
1x Power Cord
1x Tightrope

About The Datavideo PTC-150TL PTZ Camera – Black
The PTC-150TL HD/SD Video Camera is a PTZ camera that can be mounted on a wall, ceiling, floor, or a tabletop. It’s the most suitable for using with HS-1500T Portable Video Studio.

The camera is equipped with HDBaseT Technology (HBT-11 Receiver Not Included) for remote control purpose, video image conveyance, power transmission and Ethernet connection.

The camera captures HD video at 1920 x 1080 resolution and features wide dynamic range with backlight compensation. The camera features a motorised 30x optical zoom capability and its image mirror and image rotation functions allow you to electronically adjust the image and deliver a correctly orientated image. In addition to the basic camera functions, the PTC-150TL also uses an HBT-11 receiver box (sold separately) that allows the user to control the camera at a remote location with just one Ethernet cable.

50 programmable presets including pan, tilt, and zoom positions, allow the camera to quickly move between predetermined camera positions using the remote, or an available PTZ controller.

For multi camera shoots, the built in tally light can identify active camera. The camera features a built in IR cut filter in the image path for low light shooting and then returns for daytime shooting. Also, PTC-150TL supports real time position report on a per frame basis; this is helpful in a virtual studio application.

The camera supports Sony VISCA protocol for PTZ control using RS-422 interface over the unit’s RJ-45 port.

Video format 1080p 59.94/50/29.97/25
1080i 59.94/50
720p 59.94/50
480i, 576i (on CVBS)
Image Sensor 1/2.8” type progressive scan CMOS sensor
Effective Pixels (approx.) 2.14 Mega pixels
S/N Ratio 50dB
Min. Illumination Colour: 0.4 lx
B/W: 0.03 lx (F1.6, 1/30 sec, 50IRE, Gain: High)
Electronic Shutter 1/25 (1/30), 1/50 (1/60), 1/75(1/90), 1/100, 1/120 (1/125), 1/150(1/180), 1/215( 1/250), 1/300(1/350), 1/425(1/500), 1/600(1/725), 1/1000, 1/1250(1/1500)
Zoom Ratio 30x Optical Zoom
Gamma Contro l Off / Normal / Standard Mode 1-4
Iris Control Auto / Manual
Digital Noise Reductions Yes
On-Screen Display (OSD) English
White Balance AWB / MWB / One push WB / Outdoor / Indoor / Fluorescent
AGC / Gain Control Auto / Manual
Max. Gain Limit
Mirror / Flip Image Yes
Focus Mode Auto / Manual
Panning/Tilting Range Pan: 270°, Tilt: +90° to -20°
Panning/Tilting Speed Manual: 1~150°/Sec
Swing: 1~150°/Sec
Preset 50 Position
Focal Length f=4.3 mm (WIDE) to 129 mm (TELE)
F1.6 to F4.7
Field of View (Horizontal, Wide) Approx. 63.7° (WIDE END) / 2.3° (TELE END)
Image Compensation Day & Night function
Video Output HDMI (V1.3) x 1
3G-SDI x 1
CVBS x 1
HDBaseT x 1 to PTC-150T Receiver Box
Tally LED Dual color (Red, Green)
Filter M52.0 x 0.75 Thread with UV Protection
RoHS Compliant
Protoco l VISCA, DVIP
Remote Control Interface and Transmit Distance RS-422: Transmit up to 1000m
HDBaseT (RJ-45) / DVIP on Receiver Box:
Transmit up to 100m
F/W Update USB
IR Control Yes
Camera Control Unit RMC-180

30x zoom allows cameras to be positioned near the action or far away while still obtaining good clarity and close-ups of the subject.
HDBaseT Technology (HBT-11 Receiver Sold Separately) means only needing a single Ethernet cable to carry video, power, control, and tally.
Digital noise reduction for beautiful smooth image quality, even in low lighting conditions.
Auto / Manual options for Iris Control and White Balance allows fine tuning for calibrating multiple cameras together.
Built-in Tally Lights that interface natively with Datavideo Switchers. (Red for Live / Green for up-next)
RMC -180 Controller compatible.
