Overview
The Blackmagic Design ATEM Mini Pro is a compact live production switcher that supports up to 4 cameras or computers. Its USB output can function as a webcam and is compatible with all video software. The ATEM Mini Pro also allows for live streaming via Ethernet and recording to USB flash disks in H.264 format. It features two stereo audio inputs for microphones, as well as automatic standards conversion and re-syncing for HDMI inputs. The switcher comes with ATEM Software Control for Mac and Windows and has internal media for 20 RGBA graphics. It also includes advanced chroma key for green/blue screen work and a multiview function for monitoring all cameras.
Blackmagic Design has recently released the ATEM Mini Pro, an upgraded version of their ATEM Mini switcher. The new model has additional features such as a hardware streaming engine for direct streaming to YouTube Live, Facebook, and Twitch, as well as the ability to record streams to multiple USB flash disks. It also has a multiview function on the HDMI output, allowing users to monitor all inputs on a single screen. The ATEM Mini Pro is designed for creating professional multi-camera productions and is compatible with various streaming software. It has a compact design with a control panel and connections on the front, and HDMI, microphone, and USB ports on the rear. ATEM Software Control unlocks the full potential of the switcher, while the built-in media pool allows for the use of graphics and still frames for titles and logos.
Included in box
1x ATEM Mini Pro
1x External 12V DC power supply with international socket adapters
12 Months Limited Manufacturer’s Warranty
About the Blackmagic ATEM Mini PRO
Introducing low cost, multi camera, live production with advanced broadcast features.
ATEM Mini Pro is fast to set up and easy to use. It includes 4 standards converted HDMI inputs, USB webcam out, HDMI out, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control. ATEM Mini Pro also includes direct recording to USB flash disks in H.264 and direct streaming via Ethernet to YouTube Live and more. There’s also a multiview with 4 cameras, media, preview and program plus status of recording, streaming and audio.
ATEM Mini switchers make it easy to create professional multi camera productions for live streaming to YouTube and innovative business presentations using Skype or Zoom. Simply connect ATEM Mini and customers can switch live between 4 high quality video camera inputs for dramatically better quality images. Or connect a computer for PowerPoint slides or gaming consoles. The built in DVE allows exciting picture in picture effects, perfect for commentary. There are loads of video effects too. All ATEM Mini models have USB that works like a webcam so customers can use any streaming software while the ATEM Mini Pro model adds live streaming and recording to USB disks.
There’s also HDMI out for projectors. Microphone inputs allow high quality desktop and lapel mics for interviews and presentations.

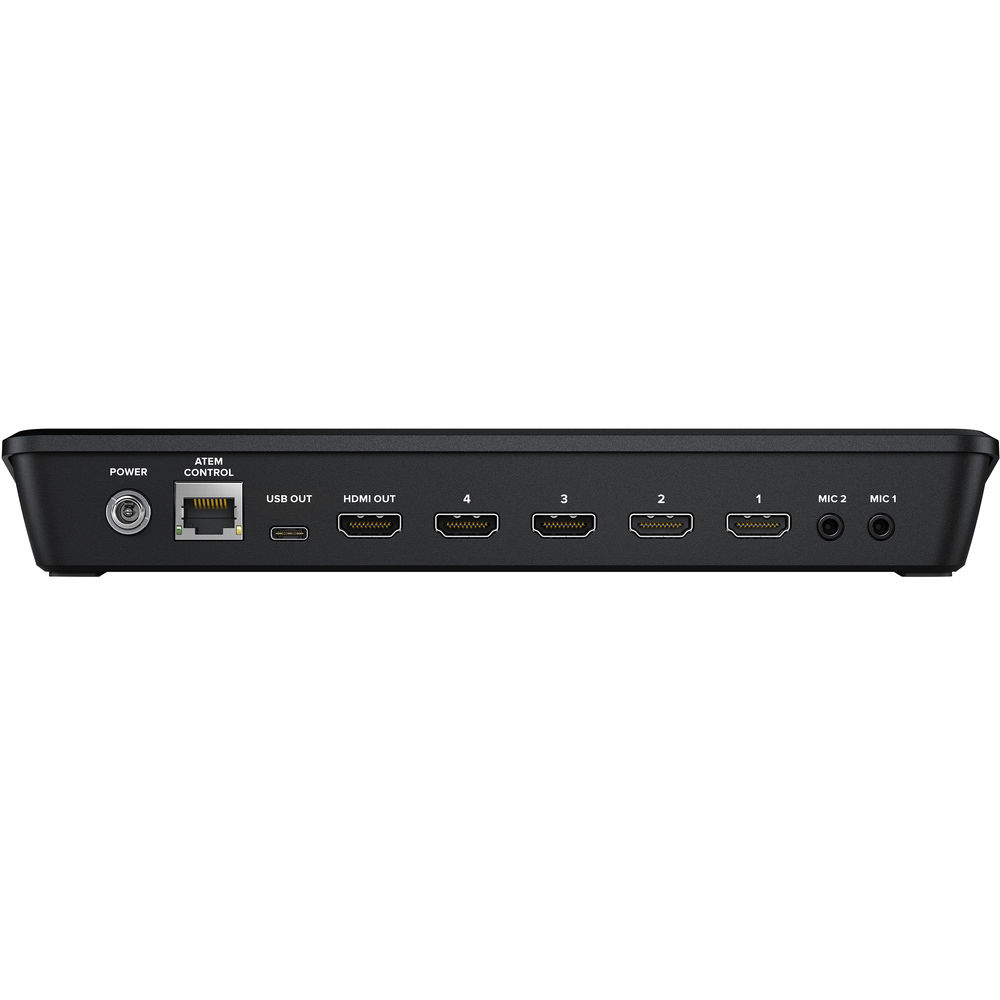

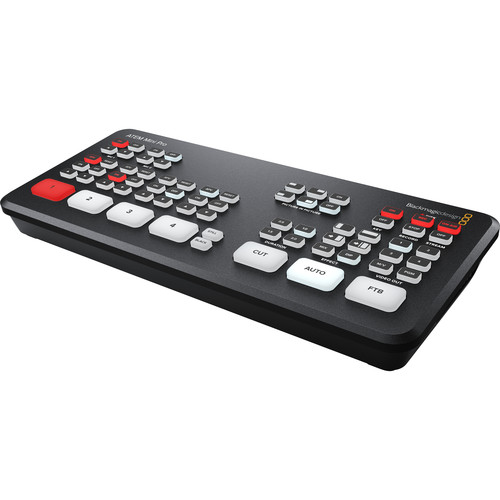

ATEM Mini’s compact all in one design includes both a control panel as well as connections. The front panel includes easy to use buttons for selecting sources, video effects and transitions. The source buttons are large so it’s possible to use it by feel, letting the presenter do the switching. Customers even get buttons for audio mixing. On the ATEM Mini Pro model customers also get buttons for record and streaming control as well as output selection buttons that let customers change the video output between cameras, program and multiview. On the rear panel there are HDMI connections for cameras or computers, extra microphone inputs, USB for webcam out plus an HDMI “aux” output for program video.
Each of the 4 HDMI inputs feature their own dedicated standards converter. That means ATEM Mini will automatically convert 1080p, 1080i and 720p sources to the video standard of the switcher. The HDMI output is a true “aux” output so customers can clean switch each HDMI input or program to this output. If users are using program/preview switching, the HDMI out can be selected to preview, or on the ATEM Mini Pro model, it can be selected to display a full multiview.
The ATEM Software Control app unlocks the hidden power of ATEM Mini and allows access to every feature in the switcher. ATEM Software Control features a visual switcher user interface with parameter palettes for making quick adjustments. Although customers can normally connect via USB, if customers connect using Ethernet it’s possible for multiple users to connect to ATEM Mini using separate copies of ATEM Software Control on different computers. Customers can even save the switcher state as an XML file. If customers need clip playback, customers can even control HyperDeck disk recorders via Ethernet.
The built in “media pool” allows the loading of up to 20 separate broadcast quality RGBA graphics for titles, opening plates and logos. Customers can even use still frames for complex effects such as graphic wipes. ATEM Mini can even grab stills from the video output and add them to the internal media pool. Graphics can be loaded via ATEM Software Control or downloaded directly from Photoshop using the ATEM Photoshop plug-in. The Photoshop Plug-in is perfect for graphics that change often, such as scoreboards, as customers can download directly into the media player.
For news or on-set presentation work, ATEM Mini is perfect as it has an upstream ATEM Advanced Chroma Key plus an additional downstream linear keyer. Customers can even use it for title overlays by creating graphics with a green or blue background and the keyer will knock out the green and make the background transparent.
When doing larger live productions with multiple cameras, it’s very useful to see all their video sources at the same time on a single monitor. The ATEM Mini Pro model includes a professional multiview that lets customers see all 4 video inputs, plus preview and program on a single HDMI television or monitor. Each camera view includes tally indicators so customers know when each source is on-air, and each view also has custom labels and audio meters. Customers can also see the media player so customers know what graphic is selected. Plus multiview even includes status for recording, streaming and the Fairlight audio mixer.
With a built in Fairlight audio mixer, ATEM Mini makes it possible to do complex live sound mixing. The internal mixer features a total of 12 channels so customers can mix audio from all sources. That’s audio from all HDMI sources and the 2 stereo mic inputs. Each input channel features the highest quality 6 band parametric EQ and compressor, limiter, expander and noise gate as well as full panning.
For a more broadcast style workflow, customers can remote control their cameras from ATEM Mini. Blackmagic Pocket Cinema Camera 4K and 6K models can work as studio cameras with control sent via the HDMI connection to ATEM Mini. That means customers can control the camera settings as well as the camera’s colour corrector from ATEM Software Control. Imagine changing ISO and tint, plus lens iris, focus and zoom, so camera operators can focus on the shot. There are two types of control interface, CCU layout for traditional tint colour control and a DaVinci colour corrector interface allowing the camera’s built in DaVinci colour corrector to add incredible digital film “looks” to their live production.
