CoreSWX Helix Teradek LT TX Caddy – VM

Overview

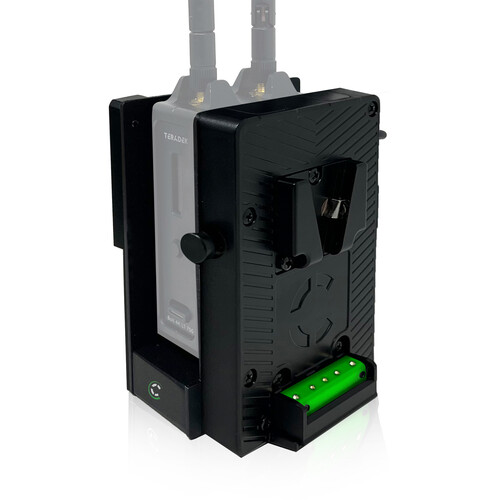

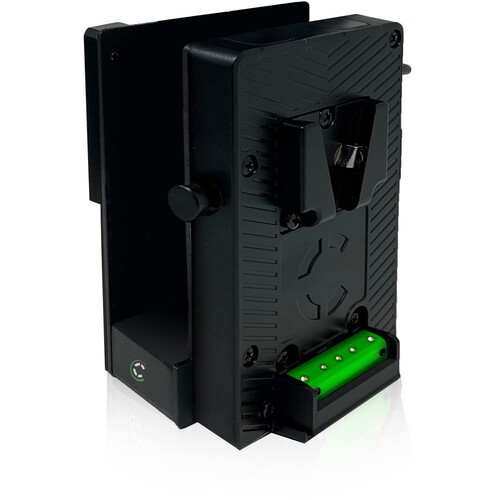

Core SWXs Helix caddy for Teradek Bolt LT transmitters allows you to easily mount the Teradek transmitter on your camera. This caddy is compatible with Helix V-Mount, G-mount, and B-mount on-board battery power. The Teradek LT TX has a maximum voltage limit of 28v, which can be a challenge for high voltage camera builds. However, with the Helix caddy, the TX can safely receive power from a 2pin DC 12v 2pin Lemo connection while still powering the camera with high voltage. The caddy also features a ¼-20 screw on the bottom to securely hold the TX in place and side openings for full access to I/O ports and the TXs LCD and buttons/switches.

Summary
Battery Mount:
Gold Mount
V Mount

Included in box
1 x CoreSWX HLX-CATK-V (HLXCATKV) Helix High Voltage Caddy for Teradek LT Transmitter – V Mount

About the CoreSWX Helix Teradek LT TX Caddy – VM

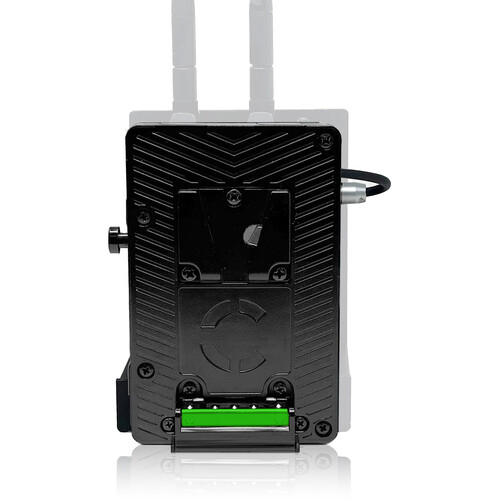

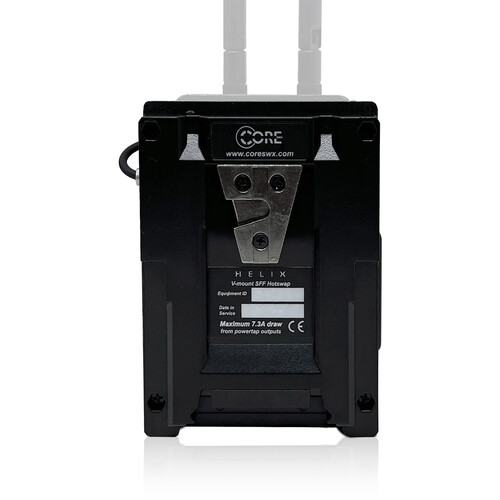

Core SWX’s Helix caddy for Teradek Bolt LT transmitters allows you to mount the Teradek transmitter in-line with Helix V-Mount, G-mount or B-mount on-board battery power.

As the Teradek LT TX can only accept up to 28v, high voltage camera build scenarios become a challenge as high votlage packs exceed 28v. With the Helix caddy, the TX is provided a 2pin DC 12v 2pin Lemo connection to safely power the Teradek TX while seamlessly powering the camera with high voltage.

A ¼-20 on the bottom of the unit secures the TX in place. Side openings provide full access to I/O ports as well as full view of the TX’s LCD and buttons/switches.

Input DC 11-34v
Output for Camera DC 11-34v (dependent on on-board battery connected to mount plate)
Output to transmitter 12v
Dimension 4.7″ x 2.3″ x 3.6″
Weight .8 lbs.
Compatibility Supports both standard 14v V-mt and G-mt. For High Voltage, only supports Helix V-mt and G-mt, and B-mt*
Note *please contact Core SWX if you intend to use any other make of battery pack besides Core B-mount for compatibility questions.
