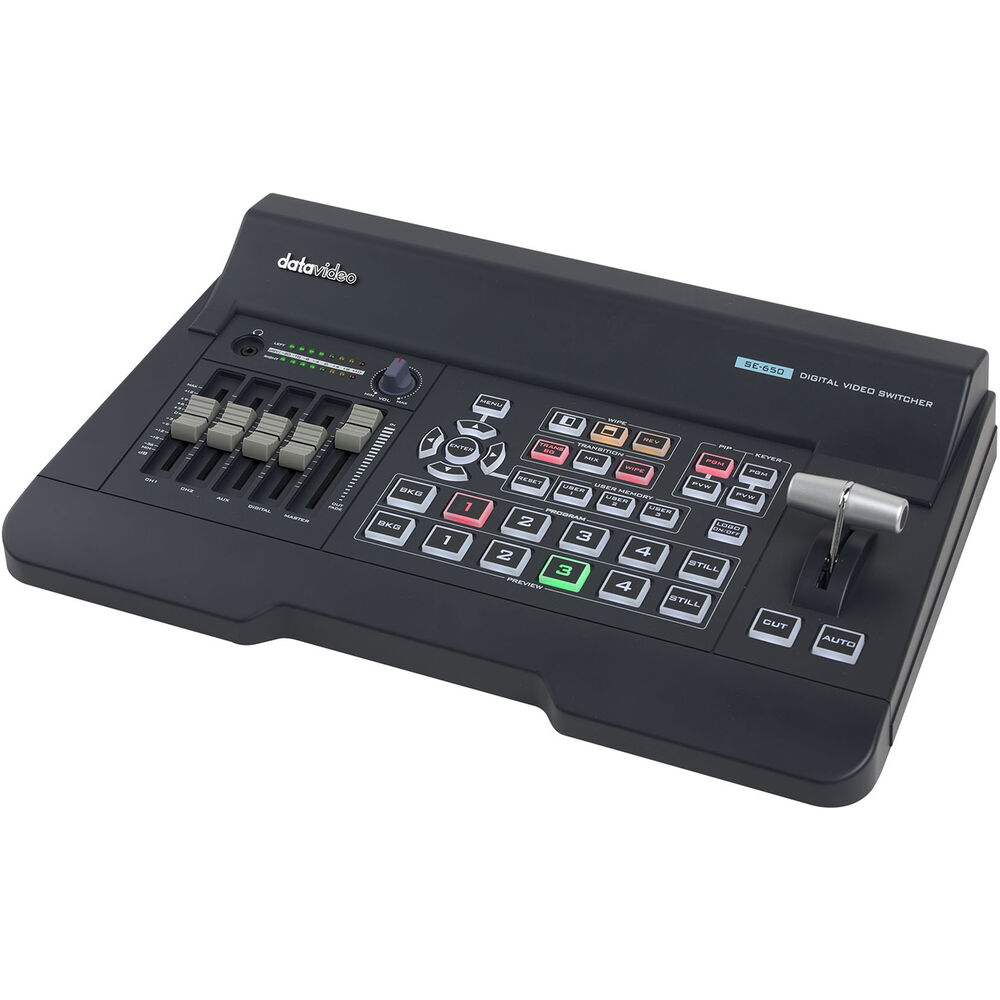

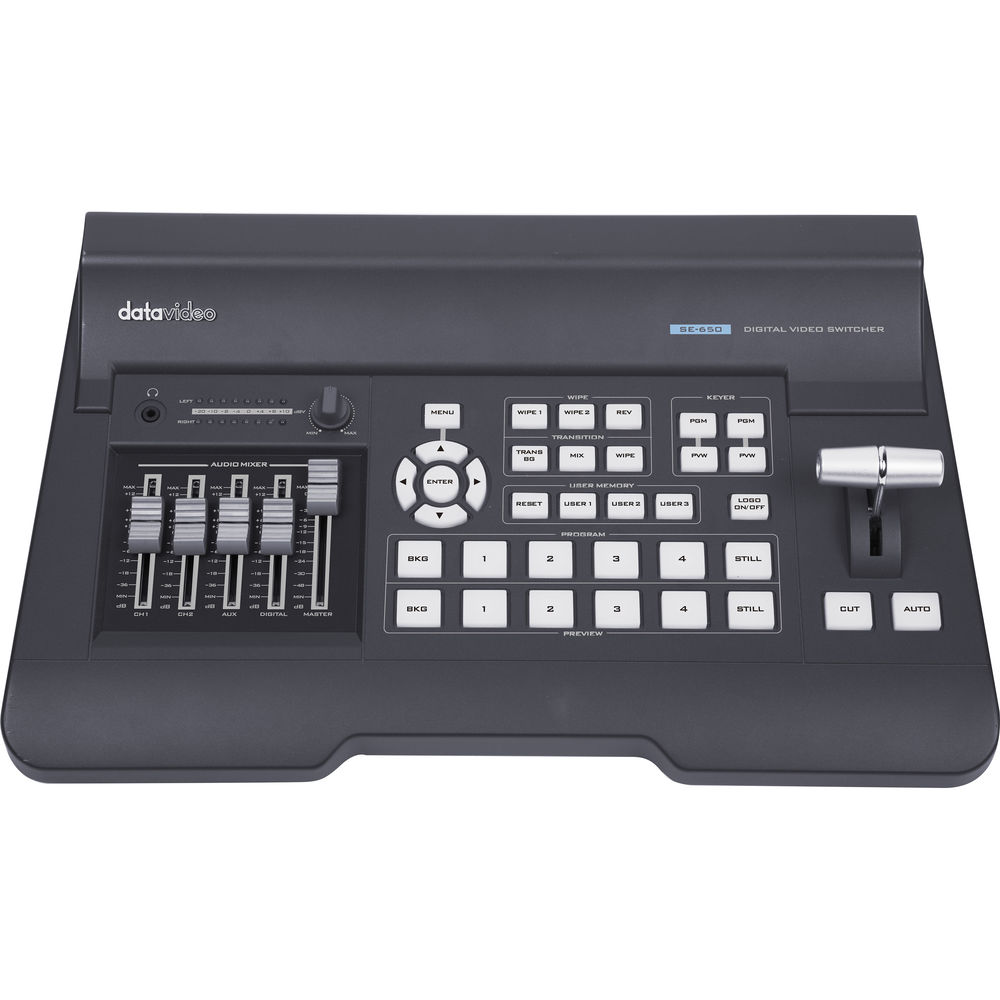

Datavideo SE650 Digital Video Switcher

£925.00 Ex VAT

SE-650

OVERVIEW
The Datavideo SE650 Digital Video Switcher is a powerful and versatile tool for live video production. With 4 inputs, including 2 HD-SDI and 2 HDMI, this switcher is compatible with both professional and consumer-grade cameras. It also offers a variety of features to enhance your production, making it ideal for events, sports, and other live productions.

One of the standout features of the SE650 is its flexible mix/effects processor, which includes 1 upstream keyer and 1 upstream PIP. These features support chromakey and luma key, allowing you to easily add logos, graphics, and other visual elements to your production. Additionally, the switcher offers 32 wipe patterns, including circle and heart shapes, with border and softness control.

The SE650 also includes a built-in audio mixer, eliminating the need for a separate external mixer. This makes it a cost-effective choice for most productions. Plus, with its user memories, you can save complex processes and easily access them with just one touch.

Designed with both experienced users and beginners in mind, the SE650 has an intuitive control panel that makes switching seamless. It also offers professional 10-bit processing, ensuring high-quality video output.

In addition to its impressive features, the SE650 is budget-friendly, making it a great option for those looking for an affordable switcher without compromising on quality. And with its plug-and-play design, there’s no need to install drivers when connecting to a laptop, making it easy to use on the go.

Overall, the Datavideo SE650 Digital Video Switcher is a top choice for those looking for a versatile, budget-friendly, and professional switcher for their live video productions. With its advanced features and user-friendly design, it’s sure to enhance any production and help you create stunning visuals.

INCLUDED IN BOX
1x SE-650 Video Switcher
1x AD Switch DC 12V with AC Cord

About The Datavideo SE650 Digital Video Switcher
Please note: Image is for illustration purposes only. Monitor pictured not included.

SDI and HDMI inputs on a budget

The SE-650 is Datavideo’s most affordable SDI+HDMI switcher available.

With 2 SDI inputs and 2 HDMI inputs, the SE-650 is compatible with both professional and consumer-grade cameras while being one of the least expensive switchers in our catalog.

Easy on the outside. Professional on the inside.

The SE-650’s intuitive control panel makes switching a piece-of-cake for experienced users, as well as for beginners such as volunteers and students.

Though it’s geared for novice users, the SE-650 is packed with advanced features such as lumakey and chromakey.

Built-in audio mixer

The SE-650’s built-in audio mixer means that you’ve got everything you need to control your audio input levels.

For most productions, this means that there’s no need to buy a separate external audio mixer.

Stunning video effect enrich the scene and Built-in animations and backgrounds.

Down stream keyers(DSK) , up stream keyers(USK) and picture-in-picture(PIP) generators combined with a dual chromakeyer give you enough freedom to be creative.

Choose between a variety of pre-saved animated stinger transitions and virtual set backgrounds.

User memories

You can save a complex process into a user memory, turning multiple tasks into a one-finger job.

Plug-and-Play

There is no need to install the driver to connect with the laptop. The images and videos can be directly input to the switcher through the HDMI interface of the laptop.

Professional 10-bit processing switcher

Providing you the best and professional quality of video processing.

Model Name SE-650
Product Name HD 4-Channel Digital Video Switcher
Video Inputs 2x HDMI
2x HD-SDI
Video Outputs 2x HDMI (1 is MV, 1 is Assignable)
1x HD-SDI (Assignable)
Audio Inputs 2x RCA Analogue (L/R)
2x Mono Microphone De-embedded Digital Audio (2CH)
Audio Outputs 2x RCA Analogue (L/R)
1x Stereo headphone (mini jack with volume control)
Embedded Digital Audio (2 CH / Channel 1 & 2)
Tally Yes, D-Sub – 15 Male connector
Software Update USB Port
Audio Mixer
Audio Fader 5 VR, 6 CH (3 Pair) Audio Mixer
Audio LED Meter 2 Rows (Left/Right)
Standards
Supported Resolution 1080i/50, 1080i/59.94, 1080i/60, 720p/50, 720p/59.94, 720p/60
Internal Processing YUV 4:2:2, 10-bit
Extras
Keyers 2 Keyers (2 Chroma Keyers)
Linear as well as Luma Keying is supported
Upstream Keyers 2 (M/E Keyer & PIP)
Chroma Keyers 2 High Quality Chroma Keyers
PIP 1x Full PIP, full size, position, crop control
Border with variable size & colour
Wipe 32 Wipe Patterns including Circle, Heart
Full Softness control. Variable width Border with softness
Stills Any unused channel can also be used as a still buffer
Can store stills internally.
Stinger Transitions Yes
Operating Temperature 0°C to 50°C (32°F to 122°F)
Humidity 10% to 80%
Power Consumption 12V / 29W
Dimensions (mm) 400 x 264 x 72
Weight 1.72 Kg
4 Input HD digital video switcher
Inputs: 2 x HD-SDI x 2 | 2 x HDMI
Outputs: 1 x HD-SDI | 2 x HDMI
Any Input can be used as a Frame store (Stills Store)
Assignable Outputs: Program (w/ DSK) | Clean Program (w/o DSK) | Clean Preview (w/o DSK) | Multiview
Frame Sync on each input
Flexible Mix/Effects Processor with 1 Upstream Keyer, supporting Chromakey & Linear/ Luma Key
1 Upstream PIP, supporting Chromakey & Luma Key
Wipe Generator: 32 Wipe Patterns, including Circle & Heart – Borders & Softness Control
Full M/E Preview function
Logo insertion (Animation logo, X/Y size)
XPT (Cross Point Assignment)
Tally Output
6 Channel Audio Mixer
Audio inputs: 2 x RCA Analogue (L/R) | 2 x Microphone
Audio outputs: 2 x RCA Analogue (L/R) | 1 x Stereo headphone mini Jack
Audio embedded function
Multi-language support

Brand

Datavideo
