Overview
The DAD directional antenna is a revolutionary transceiver that is the first of its kind. It has the unique capability of simultaneously sending IEM signals while receiving mic/line signals and managing all bidirectional system data. This advanced technology also includes features such as continuous interference management, remote control, and a rugged RJ45 connector. Additionally, the DAD directional antenna has IP54 protection and is equipped with PoE, making it a reliable and durable choice for any audio system.
With its cutting-edge design and versatile capabilities, the DAD directional antenna sets a new standard for transceivers. Its ability to handle multiple tasks at once, along with its advanced features and rugged design, make it a top choice for professionals in the audio industry. Whether for live performances, recording studios, or other audio applications, the DAD directional antenna is a reliable and efficient solution for managing signals and data in any setting.
Included in box
1x Sennheiser Spectera DAD Antenna (UHF)
1x Quick Guide
1x Safety Guide

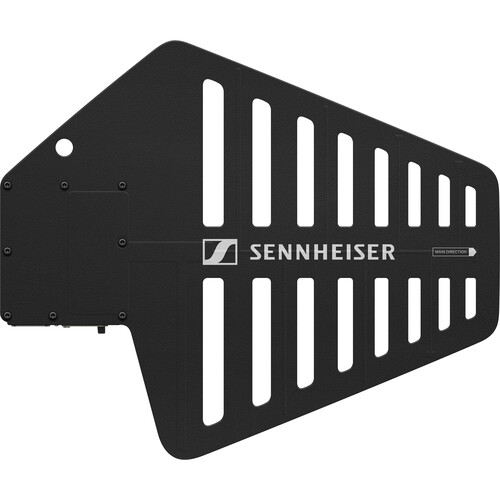

About the Sennheiser Spectera DAD Antenna (UHF)
The transceiving Spectera Digital Antenna Directional (DAD) manages IEM signals, mic/line signals and data simultaneously.
It provides continuous interference management and remote control, and is equipped with a rugged RJ45 connector, IP54 protection and PoE.
Product
Colour Black
Gain 5 dB
Min. Channel Spacing (kHz) Matches to used bandwidth mode
RF Sensitivity TBD per ALM
Warranty AMER (years) 2
Connectivity
Connection Wireless
Connectors RJ45 1Gbps PoE
Ambient Conditions
Storage Relative Humidity 25 – 95% (non-condensing)
Storage Temperature Range -25°C to +80°C (-13°F to 176°F)
Operating Relative Humidity 25 – 95% (non-condensing)
Operating Temperature (C) -10°C to +60°C (14°F to 140°F)
Battery & Power
Battery Included No
Power Consumption (Amp) PoE class 2 (< 6.5 W)
Electrical Properties
Transmission Power (mA) Up to 100 mW (countrywise limited)
Technology
Encryption AES 256 CTR Mode exp. >10k years
Transmission Method Multicarrier, TDMA, TDD
Dimensions
Product Height 60 mm
Product Length 400 mm
Product Weight (g) 1069
Product Width 330 mm
Transceiving antenna manages IEM signals, mic/line signals, and data simultaneously
Integrated RF components eliminate the need for additional dedicated RF gear such as combiners, splitters, or boosters
Directional antenna
Ruggedized RJ45 connector for standard network cable CAT 5e or higher (point to point)
Continuous interference management and remote control
IP54 protection
Fiber extension capabilities (supported converters in technical documentation)
Optional use as dedicated fast and high-quality scanning device
Powered over ethernet (standard POE)
