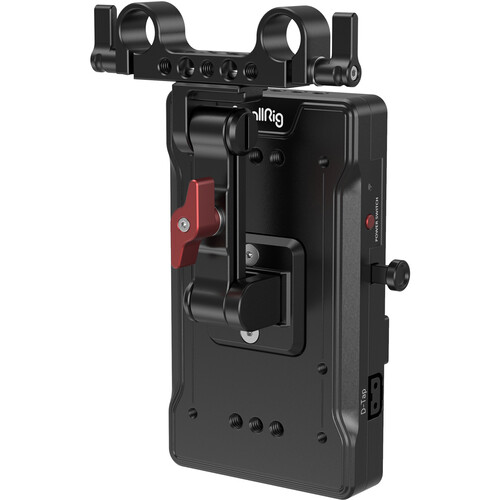

SmallRig V Mount Battery Adapter Plate

Overview
The SmallRig V Mount Battery Adapter Plate with Adjustable Arm 3204 is specifically designed to provide longer battery life for your camera rig. This plate, which is compatible with most V mount batteries, offers various output ports including an 8V DC port, two 12V DC ports, a 14.8V D-Tap port, and a 5V/2A USB port. These ports can power your camera and other external accessories such as a monitor or phone using a V mount battery. Additionally, the plate features a power switch that controls all output ports for quick and convenient powering on and off. It also comes with a dual 15mm rod clamp and an adjustable arm for easy mounting and positioning on a 15mm LWS rod system.

Summary
Battery Mount: V Mount
Included in box
1x V Mount Battery Adapter Plate
1x Dual 15mm Rod Clamp with Adjustable Arm
2x Allen Wrench
2x Mounting Screw

About the SmallRig V Mount Battery Adapter Plate
SmallRig V Mount Battery Adapter Plate with Adjustable Arm 3204 is designed to provide greater battery life to your camera rig via a V mount battery. The plate utilising a standard V mount fits most V mount batteries. It gives an 8V DC output port, two 12V DC output ports, a 14.8V D-Tap output port, and a 5V/2A USB output port to power your camera and other external accessories like a monitor, a phone, etc. via a V mount battery. It features a power switch that controls all of the output ports to power-on or power-off your rig more quickly and conveniently. It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system, and an adjustable arm for quick adjustment of the V mount battery position.

Compatibility The plate fits most V mount batteries but PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.
Product Dimensions 168.7 x 108 x 61.3mm
Package Dimensions 158 x 166 x 93.5mm
Net Weight 404g±5g
Package Weight 554g±5g
Material(s) Aluminium Alloy

The plate utilising a standard V mount fits most V mount batteries to provide greater battery life for your camera rig
The plate provides different output ports, including an 8V DC output port, two 12V DC output ports, and a 14.8V D-Tap output port
The plate provides a 5V/2A USB output port to power a phone or a wireless video transmitter via a V mount battery
It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system
It features an adjustable arm for quick adjustment of the V mount battery position
