Sony DWM-02N Microphone – 21-29

Overview
The Sony DWX N series system offers three codec modes designed for a wide variety of applications. MODE1 is compatible with DWX series applications, MODE2 provides higher quality sound and low latency ideal for theatre, tour, and broadcast applications, and MODE3 offers more reliable RF transmission, making it ideal for speech applications. The system utilizes Sonys original codec, delivering a wide dynamic range of more than 106 dB, a wide frequency response of 20 Hz to 22 kHz, and an excellent transient response.

The DWX N series also boasts stable and secure transmission and reception, thanks to its improved digital modulator and digitally modulated and encrypted data. It allows for large-scale multi-channel operations, with up to 16 channels of simultaneous operation possible in an 8-MHz operating band. The system also offers flexibility with its interchangeable microphone heads and third-party support, as well as remote control of transmitter functions from the receiver and smartphone control using Wireless Studio Mobile software.

Summary
Channel: TV Channel 21-29
Included in box
1x DWM-02N Microphone
1x Identification ring (1 set)
1x Microphone holder
1x USB adapter cable
1x Carrying case
1x Stand adaptor
1x PF1/2 to W3/8 type
1x CD-ROM

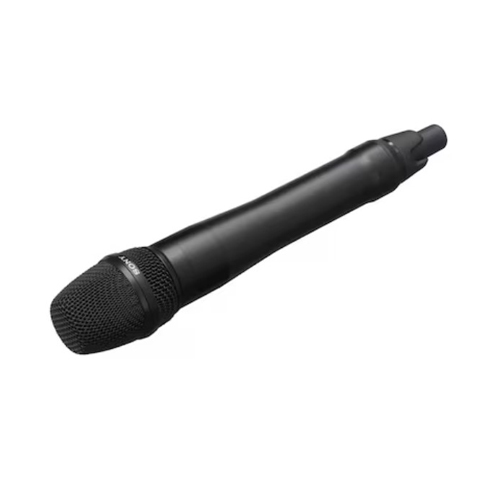

About the Sony DWM-02N Microphone – 21-29
The DWM-02N digital wireless microphone forms part of the DWX N series system that offers high-quality full-digital operation shorter audio latency and more reliable RF transmission mode – ideal for a variety of high-quality applications, including broadcast studio, theatre and live sound.

Maximising flexibility for users, the DWM-02N is not supplied with a microphone capsule as the DWM-02N Interchangeable head mechanism supports Sony and other third party capsules. Sony offers three microphone heads – the CU-C31, CU-F31 and CU-F32 – and there are also a wide variety of third-party capsules to choose from – ensuring whatever your requirements, the DWM-02N wireless handheld microphone is an ideal choice.

The DWX N series system, which consists of the DWT-B01N body-pack transmitter, DWM-02N microphone and DWR-R02DN receiver, delivers superb-quality wireless transmission of 24-bit digital audio. Thanks to its improved codec and new hardware, it can provide higher sound quality with lower audio latency.

The DWX N series works with Sony control software Wireless Studio 4.2 or later for PC and Wireless Studio Mobile for smartphones* to give users flexible control of the system. Remote control of up to 82 transmitters can be achieved using the Cross Remote™ function combined with the RMU-01 remote control unit.

Wireless Interface WiDIF-HP
Oscillator Type Crystal-controlled PLL Synthesizer
Antenna Type λ/4 flexible wire
Type of Emission G1E or G1D
Carrier Frequencies – UC U14: 470.125 MHz to 541.875 MHz (TV-14 to TV-25 channels), 25 kHz steps
U30: 566.125 MHz to 637.875 MHz (TV-30 to TV- 41 channels, except TV-37channel), 25 kHz steps
U42: 638.125 MHz to 697.875 MHz (TV-42 to TV- 51 channels), 25 kHz steps
Carrier Frequencies – CE7 CE21: 470.025 MHz to 542.000 MHz (TV-21 to TV-29 channels) 25 kHz steps
CE33: 566.025 MHz to 630.000 MHz (TV-33 to TV- 40 channels), 25 kHz steps
CE42: 638.025 MHz to 710.000 MHz (TV-42 to TV- 50 channels), 25 kHz steps
Carrier Frequencies – J WL: 470.150 MHz to 542.000 MHz (TV-13 to TV-24 channels), 25 kHz steps
WM: 566.025 MHz to 638.000 MHz (TV-29 to TV-40 channels), 25 kHz steps
WH: 638.025 MHz to 713.850 MHz (TV-41 to TV-52 and 53 channels), 25 kHz steps
G: 1240.150 MHz to 1251.825 MHz, 1253.175 MHz to 1259.850 MHz, 25 kHz steps
RF Power 1 mW/10 mW/50 mW (e.r.p) selectable
Maximum Input Level –16 dBu (with 0 dB attenuator)
Audio Attenuator Adjustment Range 0 dB to 21 dB (in 3-dB steps)
Frequency Response Transmission: 20Hz to 22kHz (typical)
Audio Delay MODE1: 1.5 msec (total: 3.4msec) /MODE2: 1.0 msec (total: 1.5msec)/MODE3: 2.1 msec (total 4.0msec)
Wireless Remote Control Cross Remote (2.4-GHz IEEE802.15.4 compliant)
Display OLED
Power Requirements DC 3.0 V (with two AA-size alkaline (LR6) batteries)
Battery Operating Time Approx. 5 hours with Sony’s AA-size alkaline (LR6) batteries at 25℃(77°F) at 10-mW output
(with the wireless remote control function off and DIMMER MODE set to AUTO OFF)
Operating Temperature 0°C to 50°C / 32°F to 122°F
Storage/Transport Temperature -20°C to +60°C / -4°F to +140°F
Dimensions Φ37.1 x 194 mm
Mass Approx. 235 g (including batteries)

Three codec modes designed for wide variety of applications
MODE1 for compatibility with DWX series applications, MODE2 with higher quality sound and low latency ideal for theatre, tour and broadcast applications, and MODE3 with more reliable RF transmission ideal for speech applications.

Superb quality wireless transmission and reception
The digital wireless microphone system transmits and receives high-quality 24-bit digital audio in a specific frequency bandwidth that meets the Wireless Communication Regulations of each country. Utilising the Sony original codec based on Sony’s years of experience in engineering audio products, the system delivers a wide dynamic range of more than 106 dB, a wide frequency response of 20 Hz to 22 kHz, and an excellent transient response.

Stable and secure transmission and reception
Incorporating the improved digital modulator, the digital wireless microphone system allows highly stable wireless transmission that is extremely tolerant to unwanted interference.
In addition, the system transmits and receives digitally modulated and encrypted data to minimize the risk of interception, providing highly secure transmission and reception.

Simultaneous multi-channel operation
The digital wireless microphone system allows for large-scale multi-channel operations. Thanks to the digital modulator, the system realises an intermodulation-free, equally spaced channel allocation. The digital wireless transmission technology used in this system enables a significant increase in the number of simultaneous operations in comparison with current analogue wireless systems. For example, up to16 channels of simultaneous operation is possible in an 8-MHz operating band

Three interchangeable heads and third party support
The DWM-02N operates with three heads. The CU-F31 microphone head with dynamic capsule has a super cardioid pick-up and range from 60 Hz to 18 kHz. The CU-F32 microphone head with wide dynamic capsule has a wide cardioid pick-up and range from 70 Hz – 18 kHz. The CU-C31 microphone head with condenser capsule has a cardioid pick-up and range from 60 Hz to 20 kHz. The DWM-02N also supports a wide variety of third party heads.

Quick open/closed mechanism for microphone heads
A robust 31.3mm/pitch 1.0mm threading interchangeable mechanism allows microphone heads to be changed easily and quickly.

Selectable output power
Output power selectable between 1/10/50 mW. Chose the minimum power necessary for a venue, lengthening battery life, and reducing the already low possibility of interference. Allows the microphone to work effectively in a very wide range of venues.

Remote control of transmitter functions from the receiver
Input attenuation, RF frequency selection, RF power output, Audio Low-pass cutoff frequency and transmitter Sleep Mode can all be controlled remotely from the digital wireless receiver. Remote control of up to 82 transmitters can be achieved using the Cross Remote™ function and RMU-01 remote control unit.

Smartphone control using Wireless Studio Mobile software
The DWX N series works with Sony control software Wireless Studio 4.2 or later for PC and Wireless Studio Mobile for smartphones* to give users flexible control of the system.
