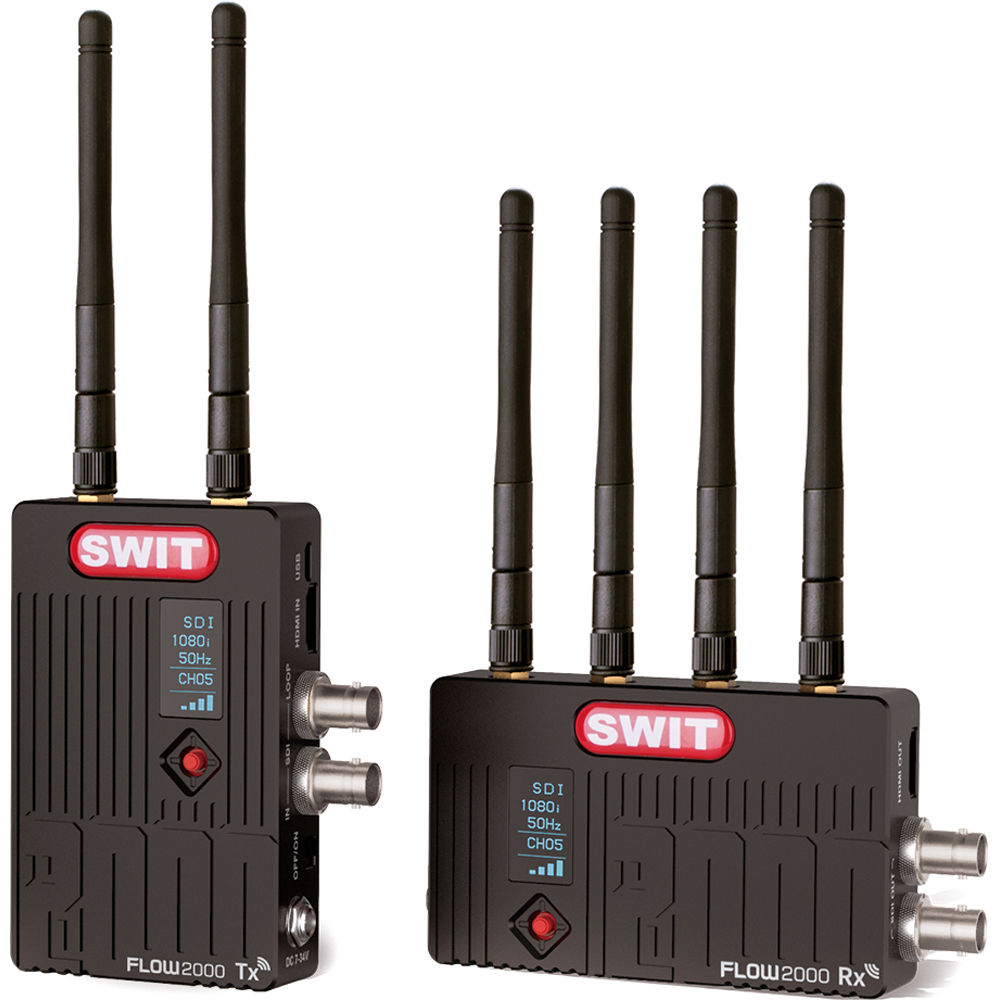

SDI&HDMI 2000ft / 600m (LOS)FLOW2000 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 200 feet (600 meters) Line-of-Sight distance. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.
Input & Output

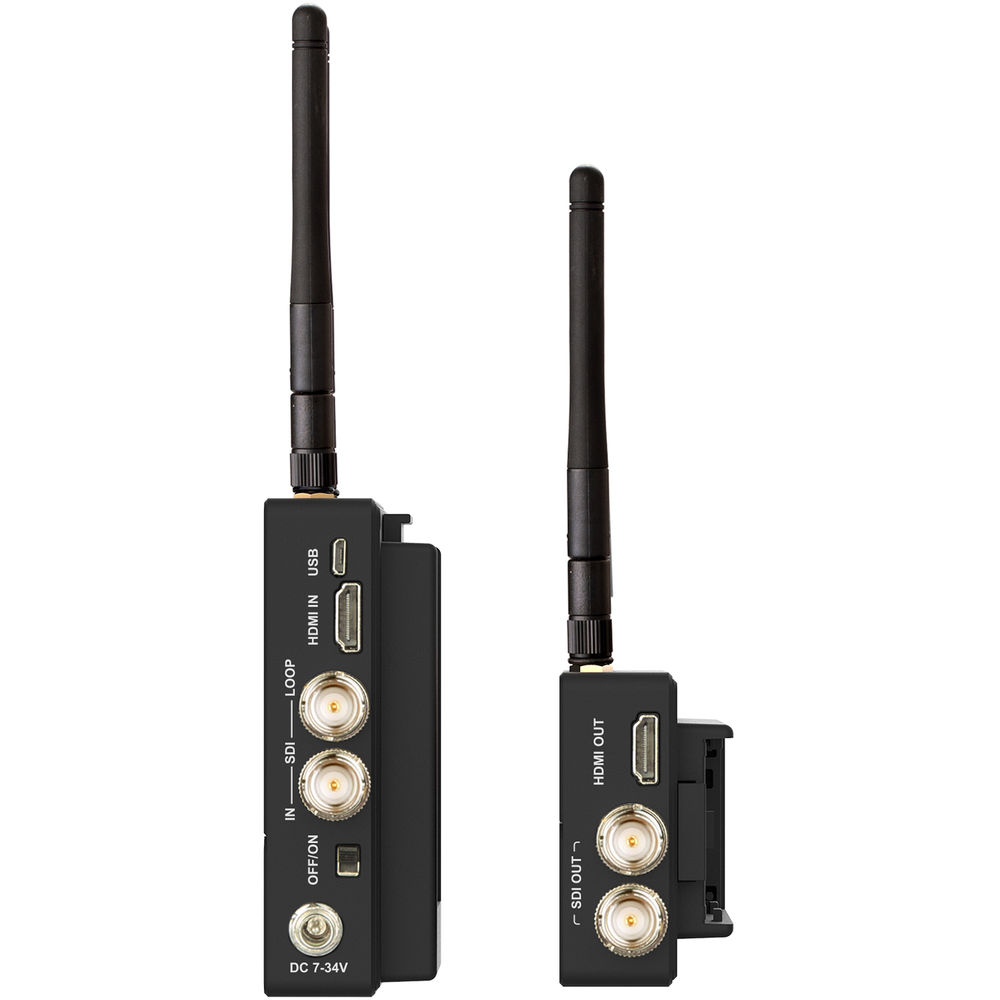

The Transmitter (Tx) has 2 omni antennas, supports:
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x HDMI 1.3 input
The Receiver (Rx) has 4 omni antennas, supports:
1x 3G/HD-SDI output
1x HDMI 1.3 output
SDI & HDMI formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50
600 meters Transmission
Strong Wall-cross PerformanceFLOW2000 wireless supports 2000ft/600m (Line-of-sight) reliable wireless transmission, and featured stronger…
- 1x Transmitter
- 1x Receiver
- 1x Articulating Arm Trestle (Cold shoe and 1/4”)
- 1x D-tap to Pole-tap DC cable
- 1x AC-DC Power Adaptor
- 1x Carrying Case
KUWI Wireless Technology
SDI&HDMI 2000ft / 600m (LOS)FLOW2000 wireless system is based on SWIT latest KUWI wireless technology, 5.1-5.9GHz license free bands, DFS comply, supports 3G/HD-SDI and HDMI (Max 1080p60) to transmit 200 feet (600 meters) Line-of-Sight distance. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.
Input & Output
The Transmitter (Tx) has 2 omni antennas, supports:
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x HDMI 1.3 inputThe Receiver (Rx) has 4 omni antennas, supports:
1x 3G/HD-SDI output
1x HDMI 1.3 outputSDI & HDMI formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50600 meters Transmission
Strong Wall-cross PerformanceFLOW2000 wireless supports 2000ft/600m (Line-of-sight) reliable wireless transmission, and featured stronger wall-cross performance due to both RF optimize and image quality optimize, so that will keep video transmission without date lost or crash comparing to regular 5GHz wireless transmitters.* Supports SDI & HDMI embedded audio (CH1&2) transmission.

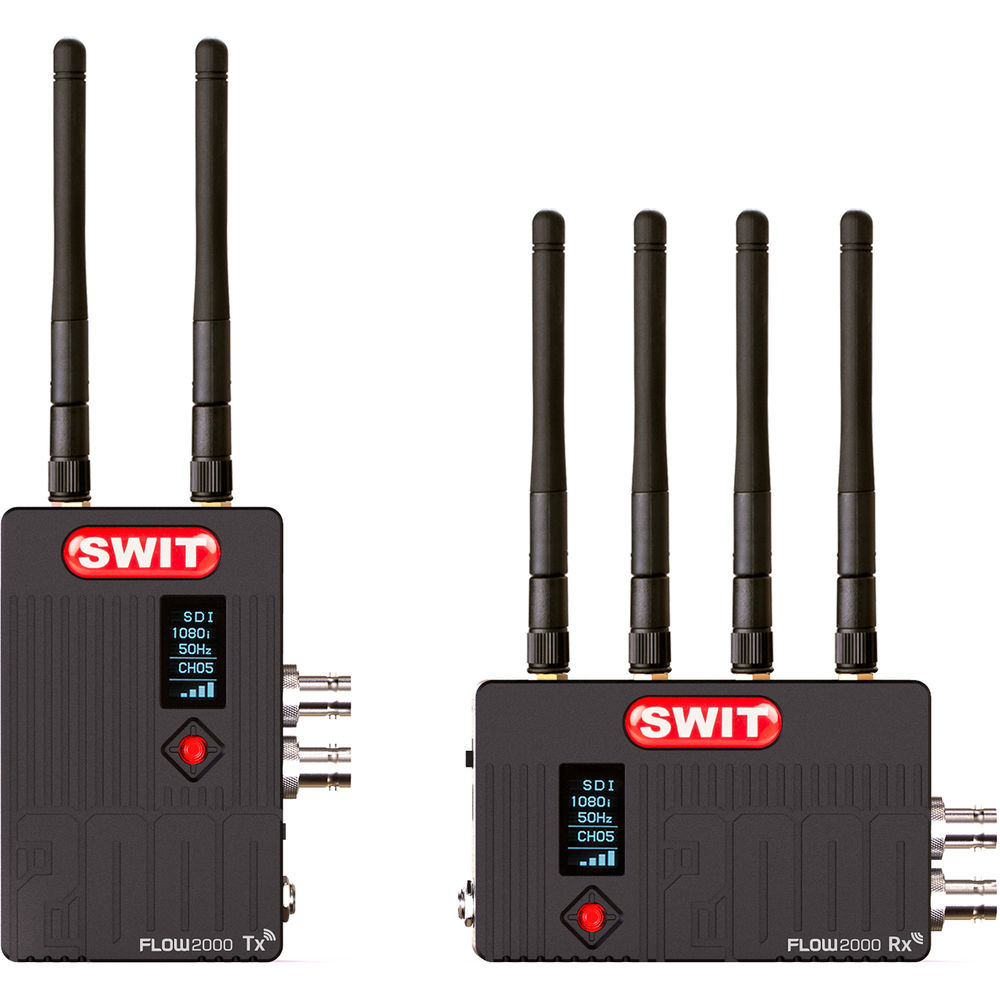

OLED Display & Channel Switch
DFS complyThe FLOW wireless works under 5.1-5.9GHz, with built-in wireless scanner, and detect wireless condition of all frequencies, automatically jump to the best wireless channel to keep reliable connection and transmission, and DFS comply.You can also switch the wireless channels manually from 7 Non-DFS restricted channels.Both Tx and Rx are equipped with OLED to display signal format, wireless channel number and signal strength.
Multicast and Double Encryption
Support 1 transmitter to 4 receivers reliable multicast mode. The transmitter and receivers are paired and double encrypted by private transmission protocol and by AES128, in order to protect the footages.
Reclock & Color Reproduction
To ensure the quality of black level, signal noise and color reproduction of the wireless received signal, the FLOW series wireless receiving supports signal re-clock and accurate color reproduction.
USB Firmware Updates
The FLOW series wireless provides a Micro USB port, supports OTG USB Firmware update for future more functions.
Power Supply
The power consumtion of Tx and Rx are less than 8W.Both Tx and Rx provide NP-F DV battery plate, and 7-34V lockable DC input.
- KUWI 5.1-5.9GHz Wireless Technology
- DFS Comply
- 3GSDI & HDMI, with 3GSDI loop out
- 2000ft/600m (Line-of-Sight) distance
- Strong Wall-Cross Performance
- 2-ch SDI/HDMI audio transmission
- OLED info and channel switching
- Support 3-4 pairs working in one location
- Multicast – 1 transmitter to Max 4 receivers
- Wireless protocol & content double encryption
- Reclock and accurate color reproduction
