3km Long Range Wireless Video
Panel Receiver, Professional RF, NOT WIFI
The new generation CREW wireless system, upgraded with twice longer transmission distance, enhanced reliable image quality, and uncompromised multicast capabilities. The CREW system continues to deliver the same rock-solid transmission stability as FLOW series, for professional broadcast and film productions.
KUWI 2.0 Pro wireless tech, NOT WIFI
Proprietary anti-interference RF
5.1-5.9GHz License-Free DFS Comply
Auto scan and select optimal channel
High gain panal antenna with Rx built-in
3km / 10000ft (Line-of-Sight) distance
3GSDI & HDMI® HD video transmission
USB-C Video Capture out for PC/Mac
H.265 up to 26.8Mbps visual lossless
Consistent 32ms ultra low latenty
Uncompromised 1T to 4R Multicast
MetaData & TC trigger transmission
High bright OLED display & configuration
AES-256 dual encryption protection
Dual Sided V-mount Tx and V-mount Rx
2-pin LEMO / USB-C Power Supply
Input / Output

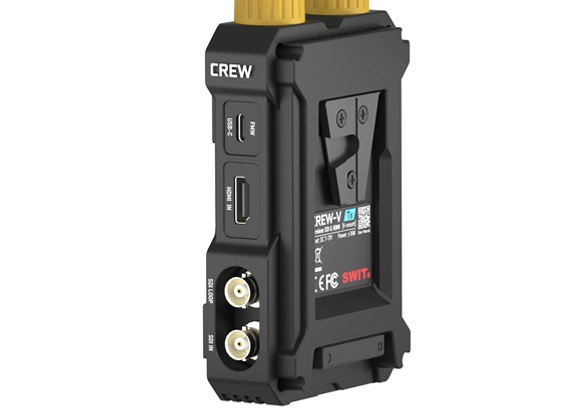

Transmitter
SDI input×1, loop output ×1
HDMI® input×1

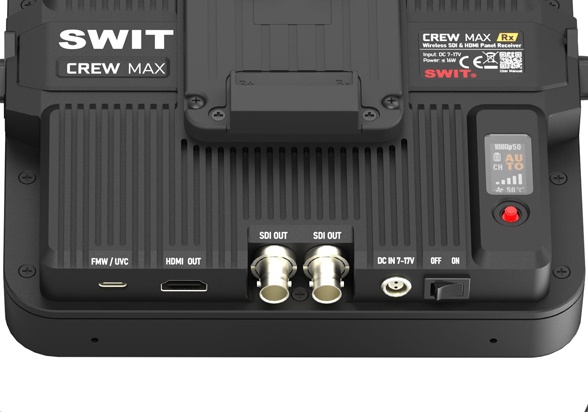

Receiver
SDI output×2
HDMI® output ×1
USB-C Video capture output ×1
Video Formats
SDI / HDMI®
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24; 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24, 1080psf25, 1080psf29.97, 1080psf30
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p50
Compression
H.265 up to 26.8M bit-rate
Embedded Audio
2-ch
Metadata
Yes
Timecode & Trigger
Yes
Wireless
Frequency
5.17GHz-5.69GHz and 5.75GHz-5.83GHz
RF Modules
OFDM 16QAM, 64QAM, QPSK, BPSK
RF Power
23dbm
Distance
3km / 10000ft (Line of sight)
Latency
32ms
Multicast
1 Tx up to 4 Rx
Encryption
AES-256
Power
Battery Plate
Tx: NP-F type; Rx: V-mount
DC Input
Tx & Rx: 2-pin LEMO 7-17V
USB-C Input
Tx: 9V/2A; Rx: 5V/2A
Power Consumption
Tx: 16W, Rx: 6W
General
Environmental
-10°C to 40°C
Dimension
Tx: 130×85.9×44.8mm
Rx: 190×190×50mm
Weight
Net: Tx:399g, Rx: 1511g
Box

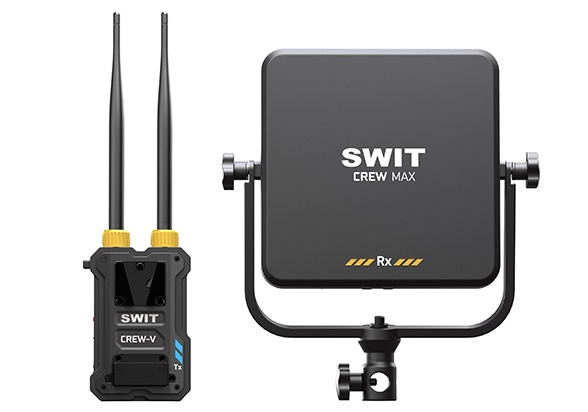

CREW-V Tx + CREW MAX Rx
Tags white×2 & Yellow×2
D-tap to 2-pin LEMO cable ×2
USB-C to C cable ×2
USB-A to C OTG
Carrying Case
