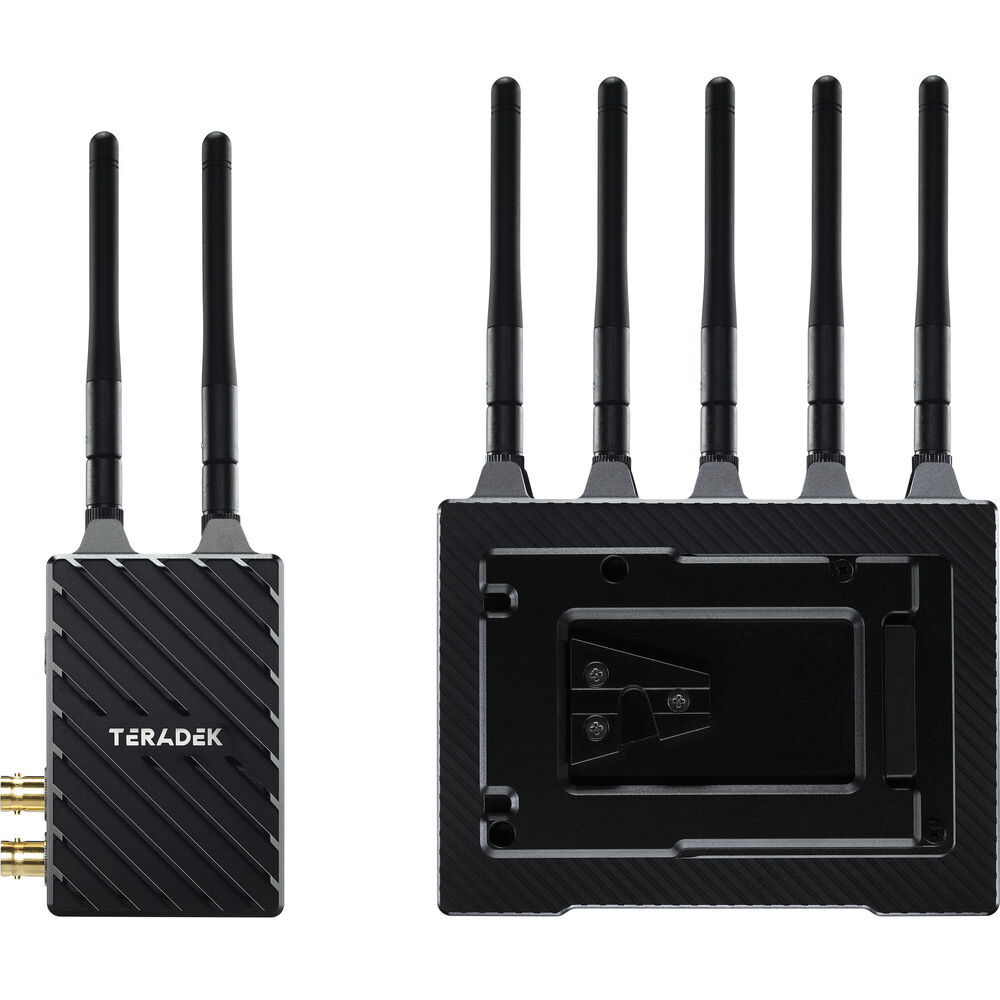

Teradek Bolt 6 LT 750 TX/RX Deluxe VM

£2,675.00 Ex VAT

10-2260-V

OVERVIEW
Introducing the Teradek 10-2260-V (102260V) Bolt 6 LT 750 TX/RX Deluxe V-Mount Kit, the latest addition to the Bolt 4K family. With the new Bolt 6 Series, experience improved performance and expanded bandwidth with the newly-unlocked U-NII 5 frequency spectrum. This deluxe kit includes everything you need for a seamless wireless video transmission experience.

The Bolt 6 Series boasts the XT range, making it smaller, lighter, and quieter compared to its predecessors. With a built-in 5-pin USB for camera control, you can easily manage your camera settings without any additional cables or devices. Plus, the Bolt 6 is backwards compatible with Bolt 4K, making it a versatile and cost-effective upgrade option.

Experience long-range video quality improvements with the Bolt 6 Series. With 12 new frequency channels, this wireless solution offers a wealth of untapped bandwidth for a smoother and more reliable video transmission. The SDI Eye pattern ensures accurate and stable signal transmission, while the 6GHz frequency band eliminates any interference from DFS channels.

The Bolt 6 Series is also included in the new Ultra 5 Bolt, offering even more advanced features at the same price as the Bolt 4K. With the Bolt 6, you can enjoy the benefits of the 6GHz frequency band without breaking the bank.

As the industrys first 6GHz wireless solution, the Bolt 6 Series sets a new standard for wireless video transmission. With its cross-compatibility across all Bolt 4K devices, you can seamlessly integrate the Bolt 6 into your existing setup. Keep an eye out for the projected release of the 6GHz frequency band in the EU in Q1 2023.

INCLUDED IN BOX
1 x Bolt 6 LT 750 TX V-Mount
1 x Bolt 6 LT 750 RX V-Mount
2 x Bolt 4K LT RX Battery Cover
1 x Lightstand Adapter ¼-20in
1 x Hot Shoe Adaptor
2 x Screw Flat Head Phillips
2 x Ultra Thin HDMI Male Type A (Full) – HDMI Male Type A (Full) 18in/46cm Cable
1 x (Bit 118) 2pin Conn. to PowerTap – 18in/46cm Cable
1 x (Bit 718) 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable
2 x SDI – BNC to BNC Cable, 10in
1 x PSU 2pin Conn. to 18W AC Adapter (Int) – 6ft Cable
1 x Wooden Camera – Teradek Offset Mount for Bolt 4K LT TX
1 x USB Male Type A (Full) – USB Male Type B (Micro) -3ft Cable

About The Teradek Bolt 6 LT 750 TX/RX Deluxe VM
Bolt 4K hits new frequencies

The Bolt 6 Series expands the power and performance of the zero-delay Bolt 4K family into the recently-unlocked U-NII 5 frequency spectrum, offering users a wealth of untapped bandwidth while remaining fully-compatible with Bolt 4K on traditional 5GHz bands

The industry’s first 6GHz wireless solution.

The Bolt 6 transmits and receives over the newly-available 6GHz frequency band as well as the industry-standard 5GHz, dramatically reducing signal congestion in challenging RF environments while remaining fully cross-compatible across all Bolt 4K devices.*

*6Ghz projected release in EU Q1 2023

BOLT 6 LT 750 TX
Video Inputs 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
1 x HDMI 1.4b Type-A receptacle
Video Outputs 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1)
Sdi Ancillary Data Support Supports reading metadata, timecode, and start/stop flags from most camera manufacturers.
Colour Sampling SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit
Delay Tx To Rx <0.001sec Input Cross Conversion Yes, HDMI to SDI (4Kp23.98-30 HDMI input is scaled and looped out as 1080p23.98-30 on SDI loopout) Supported Resolutions 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL) Video Compression Visually Lossless Colour Correction None Audio Compression 48kHz 24-bit PCM Audio Input Embedded SDI/HDMI Audio Input (2 Channel) Dimensions 60mm x 103mm x 33mm Weight 206g (7.3oz) Construction Milled Aluminium(Chassis) and regulation-compliant PCB Mountability Multiple mounting options with 1/4"x20 and M3 holes Configuration Interfaces OSD with Menu, Joystick Navigation Switches On/Off Switch Mobile App Bolt App Desktop App Bolt Manager application for OSX & Windows Usb Interface Functionality Upgrade via Micro-USB Bluetooth 2.4 GHz Antennas 2 External 2dBi antennas (included) Wireless Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz Rf Channel Selection Auto, Manual Encryption AES-256, RSA-1024 key exchange Rf Power 23 dbm EIRP Range Up to 750 ft, line of sight Unicast Multicast Can connect one Transmitter to up to 6 Receivers Noise Rejection Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location Interoperability Can transmit wireless video to all ranges of Bolt 4K XT and Bolt 4K LT receivers (limited by shortest range device) Power Input 2-Pin Circular locking Connector 6-28 VDC Battery None, optional Sony/Canon dual battery plate Nominal Power Consumption 9 Watts Operating Temperature 0-40℃ Ghz Support Yes Compatible With Bolt4k Yes Available Ranges 750 ft / 1500 ft / 5000+ ft Maximum Sdi Resolution 1920x1080p60 Maximum Hdmi Resolution 3840x2160p30 Smallhd Wireless Camera Control Port Requires Adaptor Transmitter Weight 7.3 oz / 206 g Receiver Connectivity 6/Unlimited* Zerodelay Yes BOLT 6 LT 750 RX Video Outputs 3G-SDI SMPTE 424M standard / 75 Ω (BNC x 1) 1 x HDMI 1.4b Type-A receptacle Sdi Ancillary Data Support Supports reading metadata, timecode, and start/stop flags from most camera manufacturers. Colour Sampling SDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB/YCbCr 4:4:4 8-bit, 4:2:2 10-bit Output Video Scaling No manual settings, but all signals above 4K30 for HDMI and 1080p60 for SDI are scaled down to 1080p for corresponding output Supported Resolutions 4Kp23.98/24/25/29.97/30 (HDMI only) 1080p23.98/24/25/29.97/30/50/59.94/60 1080psf23.98/24/25/29.97/30 1080i50/59.94/60 720p50/59.94/60 480p59.94 576p50 480i(NTSC)/576i(PAL) Video Compression Visually Lossless Test Pattern Generator Support Yes Spectrum Analyzer Yes Colour Correction 17x17x17 3D LUT (supports 10-bit colour) Audio Compression 48kHz 24-bit PCM Audio Output Embedded SDI/HDMI Audio Output (2 Channel) Dimensions 122mm x 94mm x 27mm Weight 292g (10.3oz) Construction Milled Aluminium(Chassis) and regulation-compliant PCB Mountability Multiple mounting options with 1/4"x20 and 3/8"x16 holes Configuration Interfaces OSD with Menu, Joystick Navigation Switches On/Off Switch Mobile App Bolt App Desktop App Bolt Manager application for OSX & Windows Usb Interface Functionality Upgrade via Micro-USB Bluetooth 2.4 GHz Antennas 5 External 2 dBi antennas (included) Wireless Non-DFS Frequencies: 5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz DFS Frequencies: 5.270 ~ 5.670 GHz Rf Channel Selection Auto, Manual Encryption AES-256, RSA-1024 key exchange Rf Power 21 dbm EIRP Range Up to 750 ft, line of sight Unicast Multicast Can connect one Transmitter to up to 6 Receivers Noise Rejection Can coexist with WiFi and 5GHz cordless phones Can operate up to 6 sets in same location Interoperability Can receive wireless video from all ranges of Bolt 4K XT and Bolt 4K LT transmitters (limited by shortest range device) Power Input 2-Pin Circular locking Connector 6-28 VDC Battery None, optional Gold or V mount battery plate Nominal Power Consumption 11 Watts Operating Temperature 0-40℃ XT range smaller, lighter & quieter Built in 5-pin USB for camera control Backwards compatible with Bolt 4K** 12 new frequency channels Long range video quality improvements SDI Eye pattern 6GHz has no DFS channels Included in new Ultra 5 Bolt Same price as Bolt 4K Bolt 6 uses different antennas for 6GHz

Brand

Teradek
