Overview
Please Note: Camera not included, images are for illustrative purposes only.

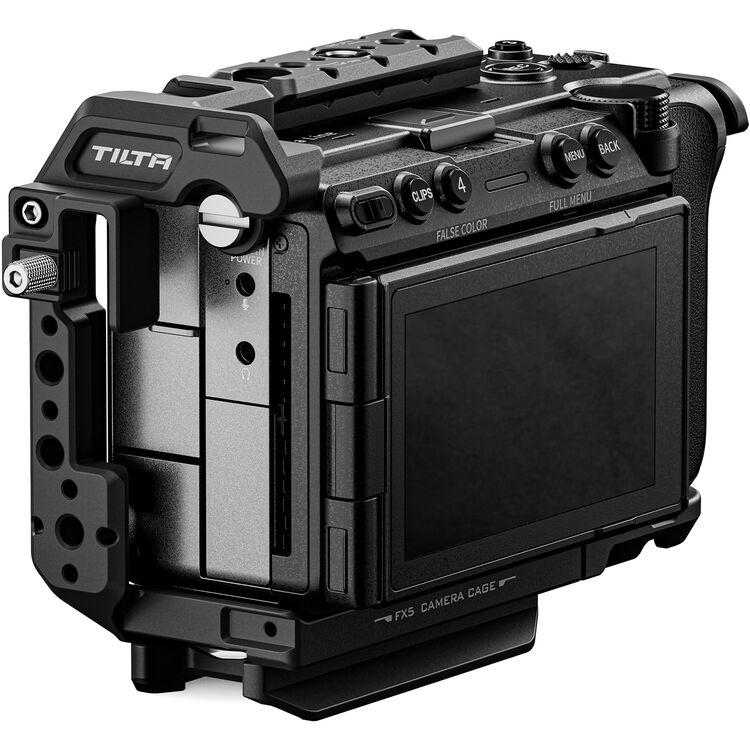

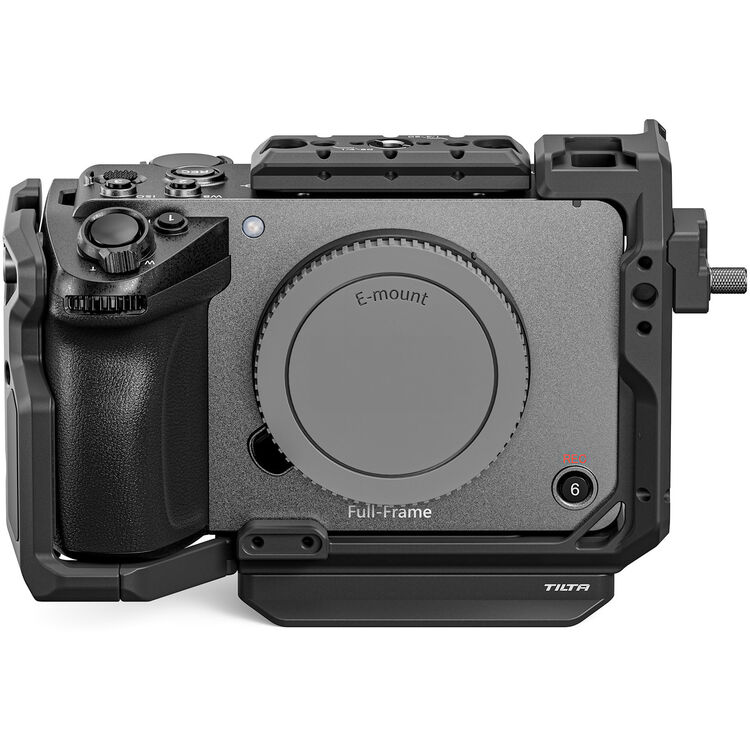

Tilta Full Camera Cage for Sony FX5 is a full camera cage designed specifically for the Sony FX5, available in Black or Titanium Grey, supplied with an ARCA quick-release plate, HDMI cable clamp, and combined slotted and Allen key for installation and adjustment.
Included in box
1x Full Camera Cage for Sony FX5
1x Slotted and Allen Key
1x ARCA Quick Release Plate for Sony FX5
1x HDMI Cable Clamp for Sony FX5
About the Tilta Full Camera Cage for Sony FX5
Please Note: Camera not included, images are for illustrative purposes only.
Introducing the Tilta Camera Cage System for Sony FX5, designed to protect, expand, and adapt your cinema camera for a wide range of shooting scenarios.
Custom designed for the Sony FX5 camera body, the Full Camera Cage uses three points of contact to provide a stable, twist-free connection. For lighter builds, users can remove the two bottom screws and handle-side bracket to convert the Full Cage into a more compact Half Cage while retaining essential mounting functionality.
The cage provides multiple options for mounting accessories, including 1/4″-20 and 3/8″-16 threads with locating points, a Cold Shoe Receiver, a NATO Rail for Top Handles, and mounting points for a Single Rod Holder.
The standalone top plate features an integrated NATO Rail and additional 1/4″-20 and 3/8″-16 threads, expanding accessory mounting options while maintaining compatibility with the camera’s original XLR Top Handle.
A bi-directional ARCA bottom plate slides in from either direction for faster transitions between compatible tripods and gimbals. A DJI gimbal center-positioning point helps reduce balancing time, while an additional center-positioning point supports balanced baseplate configurations.
Reinforced corners help protect the camera from accidental bumps during active filming, while the included locking HDMI cable clamp secures the connected cable for a more stable signal.
The precision-fitted design maintains full access to the camera’s buttons, dials, screen, battery compartment, and other native functions. A dedicated magnetic latch adds extra security to the battery compartment without slowing down battery changes.
The cage is also designed to integrate seamlessly with the Tilta Nucleus Autofocus Adapter, allowing the adapter to be installed and operated without interference.
The reshaped cage grip follows the natural curve of the palm and includes a dedicated pinky rest, providing a more comfortable and secure grip during handheld operation.
Choose from four configurations depending on your production needs:
The Full Camera Cage includes the core protective cage, an ARCA Quick Release Plate, an HDMI Cable Clamp, and the required installation tool. This option is ideal for users who want the essential cage platform and prefer to build their rig with accessories they already own.
The Base Kit adds the Tilta Xeno Top Handle and Xeno Side Handle. Both handles connect through NATO rails and provide additional mounting points, improved stability, and more flexible handling for handheld and low-angle shooting.
The Power Kit pairs the Full Camera Cage with an Adjustable ARCA Receiver and a 100W Tilta Mini PD V-Mount Battery Plate. This lightweight power solution eliminates the need for a traditional baseplate and 15mm rod setup.
The Adjustable ARCA Receiver can extend to position the battery plate closer to or farther away from the camera body, while its swivel hinge allows the battery angle to be adjusted up to 180 degrees.
The Mini PD V-Mount Battery Plate supports higher-capacity V-Mount batteries for extended camera and accessory runtime. Power outputs include a 60W PD USB-C port, P-Tap, and 2-Pin LEMO connection. Integrated strap slots support the included security strap to help prevent accidental battery disconnection.
The Pro Kit combines the Full Camera Cage with the Xeno Top Handle, Xeno Side Handle, an ARCA Height-Adjustable 15mm LWS Baseplate, and two 15mm rods.
The height-adjustable baseplate allows users to position the camera relative to the rods and maintain the 85mm LWS standard between the rods and the center of the sensor. This improves compatibility with matte boxes, lens supports, follow focus systems, and other rod-mounted accessories.
Full or Half Cage, Swap As Needed
Three-point locking keeps Full Cage stable and prevents twisting. Remove the two bottom screws to switch to the lightweight Half Cage.
Standalone Top Plate, Flexible Expansion
Top NATO rail with built-in 3/8″-16 and 1/4″-20 threads adds more flexible accessory options.
Bi-Directional ARCA, Improved Compatibility
The bi-directional slide-in design is compatible with mainstream ARCA quick-release systems.
Multi-Directional Expansion
The full cage is equipped with ¼-20, 3/8-16, and NATO mounting points. Supports the original XLR handle and a wide range of accessories.
A new DJI gimbal centre-positioning point has been added to the bottom. Significantly reduces balancing time and speeds up mounting.
Native Controls, Zero Interference
Precisely designed to maintain full access to camera functionality, so the cage never gets in the way of the camera’s native controls.
A Dedicated Magnetic Latch
Magnetic latch adds extra security to the battery compartment.
Designed for Seamless Auto Focus Integration
Engineered to work perfectly with the Tilta Auto Focus Adapter, the top plate provides a secure fit without obstructing installation or operation.
Power & Mount with Ease
With the Mini PD V Mount Battery Plate with an Adjustable ARCA Receiver for flexible mounting and reliable power
Landscape or Portrait Full Support
Whether shooting landscape or portrait, the lens centre stays perfectly aligned with the gimbal for more precise framing.
Remove the ARCA quick release plate for additional mounting points on the bottom. Add other baseplate styles, arms, or accessories to build out the perfect configuration.
A Better Grip
The right side grip has been enhanced to follow the natural cure of the palm, reducing fatigue during long shooting sessions.
Dedicated Pink Rest
A pinky rest improves stability and comfort during extended handheld shooting sessions.
The HDMI cable clamp’s locking design securely holds the cable in place, preventing it from coming loose or losing signal.
Increased Protection
Corner-guards have been added to the upper left and right of the cage body,, reducing the risk of accidental damage during use.
