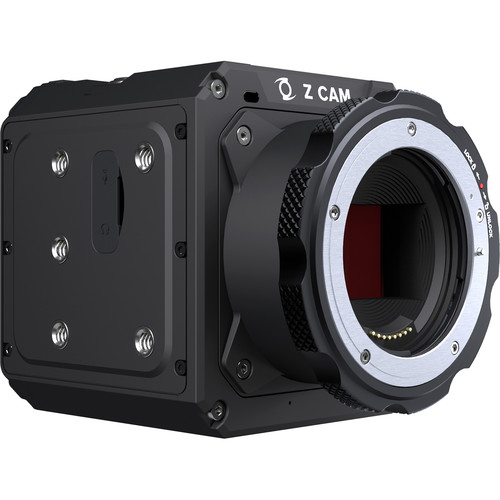

Z CAM E2 F8 8K Cine Camera – EF

£4,796.00 Ex VAT

Z-CAM-E1902

Categories: ,

OVERVIEW
The Z Cam E2 F8 is a top-of-the-line cinema camera that boasts impressive features such as 8K resolution, dual native ISO, and ZRAW support. With its EF lens mount, this camera is perfect for professional filmmakers looking for unparalleled image quality and versatility.

One of the standout features of the Z Cam E2 F8 is its 8K resolution, providing stunningly detailed images that are perfect for the big screen. Additionally, the camera has dual native ISO, allowing for superior low-light performance and reduced noise in high ISO settings.

For those looking to take their footage to the next level, the Z Cam E2 F8 also supports ZRAW recording format, providing greater flexibility in post-production and preserving the highest quality of your footage.

The EF lens mount on the Z Cam E2 F8 offers compatibility with a wide range of lenses, giving filmmakers the freedom to choose the best lens for their specific needs. This mount is available in different hardware variants, providing even more options for customization.

But the Z Cam E2 F8 is not just a powerhouse in terms of image quality. It also features Gigabit Ethernet for data, control, and live streaming capabilities. This allows for seamless connectivity and control, making it easier for filmmakers to capture their vision.

In addition to its impressive hardware, the Z Cam E2 F8 also comes with the Z Cam App, a mobile application that allows for camera control and live preview through Wi-Fi or USB cable connection. This app can be downloaded from the Apple App Store and offers advanced features for a seamless shooting experience.

Overall, the Z Cam E2 F8 is a top choice for professional filmmakers looking for a full-frame 8K cinema camera with advanced features and unmatched image quality. Upgrade your filmmaking game with the Z Cam E2 F8 and capture every detail with stunning clarity and precision.

SUMMARY
Dynamic Range: 14 Stops
Native ISO: ISO 400

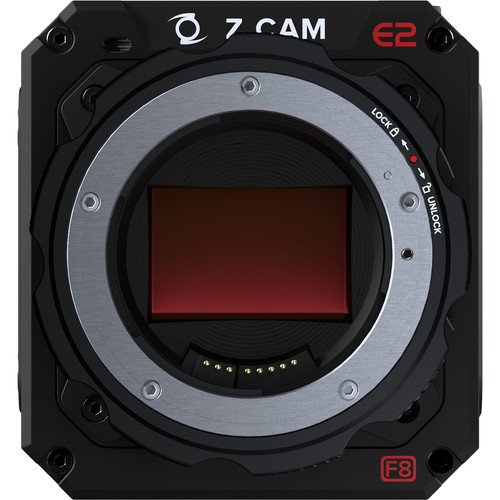

Lens Mount: Locking EF
Recording Formats: ProRes
Internal ND: No
Audio Inputs: 1x 5-Pin LEMO
Shutter: Rolling (Electronic)
Battery Mount / Type: Sony NP-F
Media Type: CFast 2.0
Resolution and Frame Rate: 8K 30p
Sensor: Full Frame
Video Outputs: 1x HDMI (2.0)
Weight: 0-2kg
Wi-Fi: Yes
INCLUDED IN BOX
1x Z CAM E2-F8 8K Full Frame Cinema Camera – EF mount

About The Z CAM E2 F8 8K Cine Camera – EF
Z Cam E2 F8 Full Frame 8K Cinema Camera with EF lens mount. The camera has 10:bit 4:2:2 colour support sensor. Its has a 14 Stop dynamic range and has a recording format of ZRAW, MOV, MP4.

Z Cam App

Z Cam is a mobile application for camera live preview and control through Wi-Fi / USB cable connection. It can control the camera to start/stop recording and adjust the camera settings, also it has advanced features on camera live preview. It can be downloaded from Apple App Store.

Camera Features
Sensor Size 35.97 x 23.98 mm
Effective Pixels 61M
Dynamic Range 14 Stops
Lens Mount EF / PL (different hardware variants)
Microphone Built-in Stereo Microphone
Recording
Resolution & Max Frame Rate 8192×3456 @30fps (DCI 8K 2.4:1)
7680×4320 @30fps (8K UHD)
6144×3240 @30fps max (DCI 6K)*
5760×3240 @30fps max (6K UHD)*
3840×2160 @30fps max (4K UHD)*
* Cropping / Supersampling selectable
Max Bit Rate 300 Mbps for all resolutions (H.265 & H.264)
Colour Bit-depth 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)
Video Encoder H.265 main 10 profile / H.264 high profile
ZRAW 12-bit & 14-bit
Audio Format 24-bit 48 kHz
Audio Encoder AAC / PCM (for MOV only)
File Format MOV / MP4
Record Mode Video / Time Lapse Video
Settings
ISO Auto, Manual (400 ~ 125000), Dual Native ISO: 400 / 2500
Shutter Shutter Speed: Auto, Manual (1”~ 1/8000”) or Shutter Angle: Auto,
Manual (11.25° ~ 360°)
White Balance Auto, Preset, Manual (2300K ~ 7500K)
Focus Mode MF / AF / CAF
Image Brightness / Contrast / Saturation / Sharpness
Image Config Rec.709 / Z-Log2 / FLAT / HLG
Audio Audio In / Out Level
Time Code Current Time / Manual Input
Storage
Media CFAST 2.0
File System exFAT

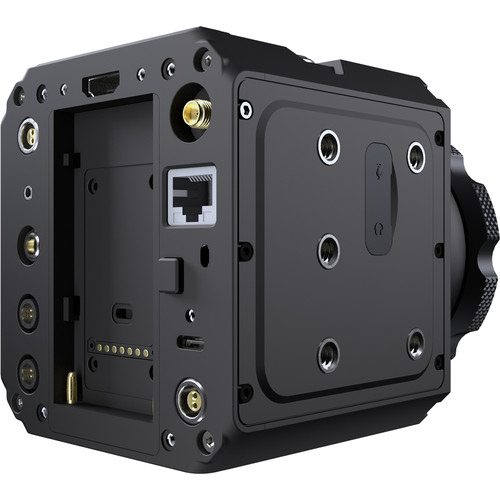

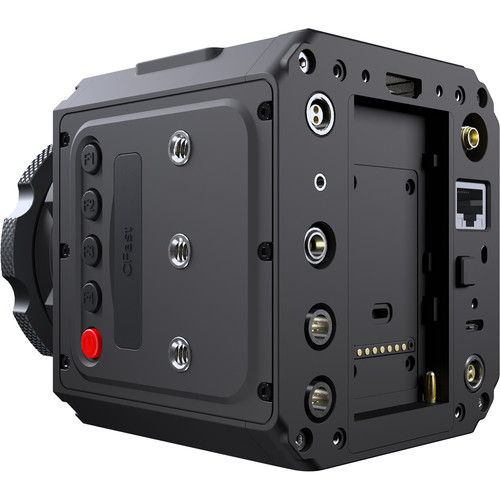

Connectivity
HDMI HDMI 2.0 Type A (video output up to C4K @ 60fps, 10-bit 4:2:2)
USB USB 3.0 Type C for camera control & data transfer only
COM 2 x Serial Port
Remote Control 2.5 mm jack socket (Sony LANC compatible)
Audio-in 3.5 mm stereo jack socket (TRS) or 5-pin LEMO port for dual
channel XLR microphone (require additional XLR audio connector)
Audio-out 3.5 mm stereo jack socket
Wi-Fi 5G, 802.11n with external antenna port
Ethernet Gigabit Ethernet port for control, setting & live streaming
Power
Battery Sony NP-F series compatible (Battery not included)
Power Input DC 12V (2-pin LEMO socket), with LEMO connector
Power Output (AUX) DC 12V (2-pin LEMO socket)
Physical
Material Alluminium Alloy
Weight TBD
Dimensions (W x H x D) 91.2 mm x 99.2 mm x 99.1 mm (without lens)
Environment
Storage Temperature -20 °C ~ 60 °C
Operation Temperature 0 °C ~ 40 °C

8K resolution
Dual native ISO
ZRAW supported
EF lens mount*
Gigabit Ethernet for data, control & live streaming**

* Different hardware variants

** Requires Z CAM™ software running on PC

Brand

Z Cam
