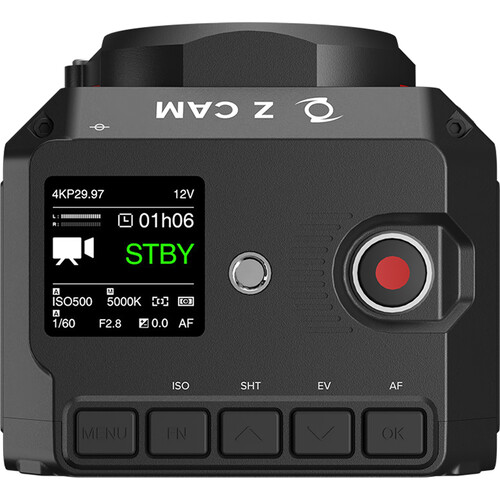

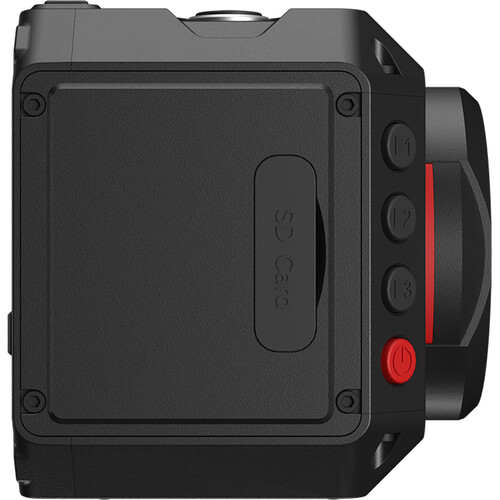

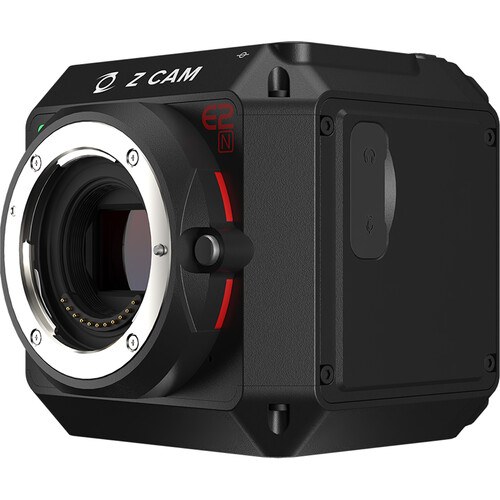

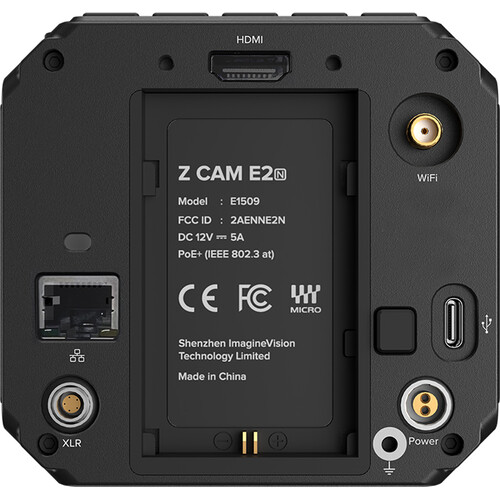

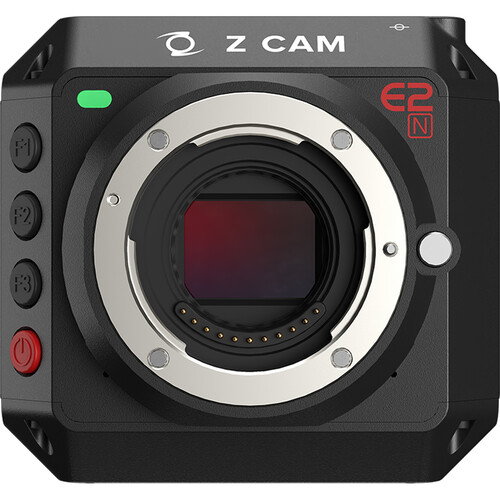

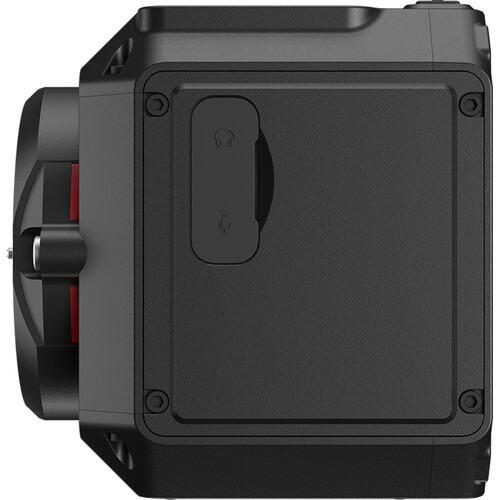

Z CAM E2N 4K NDI Camera – MFT

£799.16 Ex VAT


Categories: ,

The Z CAM E2N is a powerful 4K cinematic camera that is equipped with advanced features to take your filming to the next level. With its NDI HX3 enabled technology, you can capture stunning footage at up to 4K 60fps, providing endless possibilities for high quality shooting.

The camera features a 4/3″ CMOS sensor and a Micro Four Thirds mount, allowing you to use a variety of lenses to achieve the desired cinematic effect. It also comes with multi-cam synchronisation, making it easier to capture footage from multiple angles.

One of the standout features of the Z CAM E2N is its NDI HX3 support, which allows for seamless integration with other NDI-enabled devices. It also supports H.265/264 via NDI HX and H.265/264 via SSP, giving you more flexibility in your workflow.

In addition to its impressive video capabilities, the Z CAM E2N also offers a mini-XLR audio input for professional audio recording. It also has PoE+ and Tally support via NDI, making it easier to control and monitor your filming process.

With the Z CAM E2N, you can also take advantage of its SD card internal recording and HDMI output options. This gives you the ability to record footage directly onto an SD card while also outputting to an external monitor for live viewing.

For even more control and customization, the Z CAM E2N comes with a full set of open API and a web-based user interface. This allows you to easily adjust camera settings and monitor your footage remotely.

To make things even more convenient, the Z CAM E2N also has a mobile app called Z Cam App. This app allows for live preview and control of the camera through a Wi-Fi or USB connection. It also has advanced features for camera live preview, making it easier to get the perfect shot.

Experience the cinematic capabilities of the Z CAM E2N with its NDI HX3 technology, multi-cam synchronisation, and advanced features. Upgrade your filming game with the Z-CAM-E1509, also known as the ZCAME1509, Cine, Cinema, NDI, HX3, Capture, and Z Cam App.

Dynamic Range: 11.5
Native ISO: 500 / 2500
Lens Mount: MFT
Audio Inputs: 1 x 3.5mm
Battery Mount / Type: LPE6
Media Type: SD/SDHC/SDXC
Resolution and Frame Rate: 1080p
Sensor: CMOS
Weight: 0-2kg
Wi-Fi: Yes
1x Z CAM E2N Camera Unit
1x Wi-Fi Antenna
1x Quick User Guide

About The Z CAM E2N 4K NDI Camera – MFT
Z CAM E2N – 4K Cinematic Camera with 4/3″ CMOS Sensor with Micro Four Thirds Mount. The camera comes with multi-cam synchronisation, NDI HX3, an iOS app for control setting and live preview options, and gigabit ethernet for data, control and live streaming. It has 11.5 stops of dynamic range and its 4K @60fps for endless high quality shooting.

Z Cam AppZ Cam is a mobile application for camera live preview and control through Wi-Fi /USB cable connection. It can control the camera to start/stop recording and adjust the camera settings, also it has advanced features on camera live preview. It can be downloaded from Apple App Store.

Camera model Z CAM E2N
Sensor Type 4/3″ CMOS sensor
Effective Pixels 10.71 mega pixels
Dynamic Range 11.5 Stops
Lens Mount Micro Four Thirds
Mircrophone Built-in Stereo Microphone
Recording Resolution 4K, 3696×2772, 1080p
Recording Frame Rate 59.94 / 50 / 29.97 / 25 / 24 / 23.98 fps
Colour Bit-depth 8-bit
Video Encoder H.265 / H.264
Streaming Protocol NDI_HX3, SSP
Audio Format 16-bit 48 kHz
Audio Encoder AAC / PCM (for MOV only)
File Format MOV / MP4
Record Mode Video / Time Lapse Video / Still Image Capture
ISO Auto, Manual (500 ~ 102400), Native ISO: 500 / 2500
Shutter Shutter Speed: Auto, Manual (1” ~ 1/8000”) or Shutter Angle: Auto, Manual (1° ~ 360°)
White Balance Auto, Preset, Manual (2300K ~ 7500K)
Focus Mode MF / AF / CAF
Image Profile Rec.709 / Concert / Vivi 0 / Vivi 1 / Vivi 2
Audio Audio In / Out Level
Time Code Current Time / Manual Input
Recording Media SDXC Class 10 SD card, recommend to use UHS-I Speed Class 3 (U3) type for 4K recording.
File System exFAT
HDMI HDMI 2.0 Type A, up to 4K 60fps
USB USB 3.0 Type C
Audio-in 3.5 mm stereo jack socket
Audio-out 3.5 mm stereo jack socket
Wi-Fi 5G band, 802.11n, external antenna port
Ethernet Gigabit Ethernet port for control, setting & live streaming
Power Input DC 12 5A (2-pin LEMO socket), PoE+ (IEEE 802.3 at)
Battery LP-E6 series compatible (Battery not included)
Weight 610g
Dimensions 85.8 x 91.2 x 84.9 mm (Height x Width x Length)
Storage Temperature -20 °C ~ 60 °C
Operation Temperature 0 °C ~ 40 °C

NDI HX3 enabled
Capture up to 4K 60fps
Supports NDI HX3, H.265/264 via NDI HX, H.265/264 via SSP
4/3″ CMOS Sensor
MFT Lens Mount
Mini-XLR Audio Input
PoE+, Tally (via NDI)
SD card internal recording + HDMI output
Full set open API & web-based user interface for control & monitoring


Z Cam
