Hawk-Woods Sony FX9 V-Lok Camera Mount

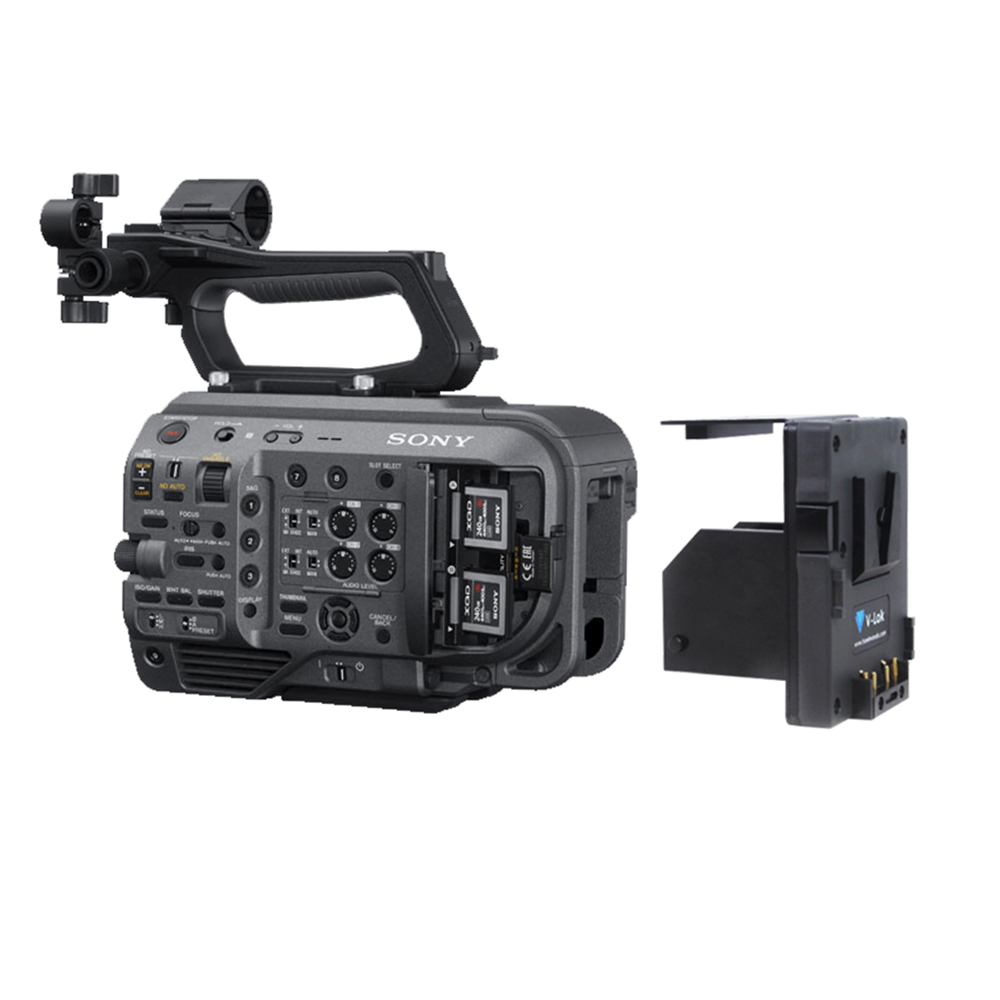

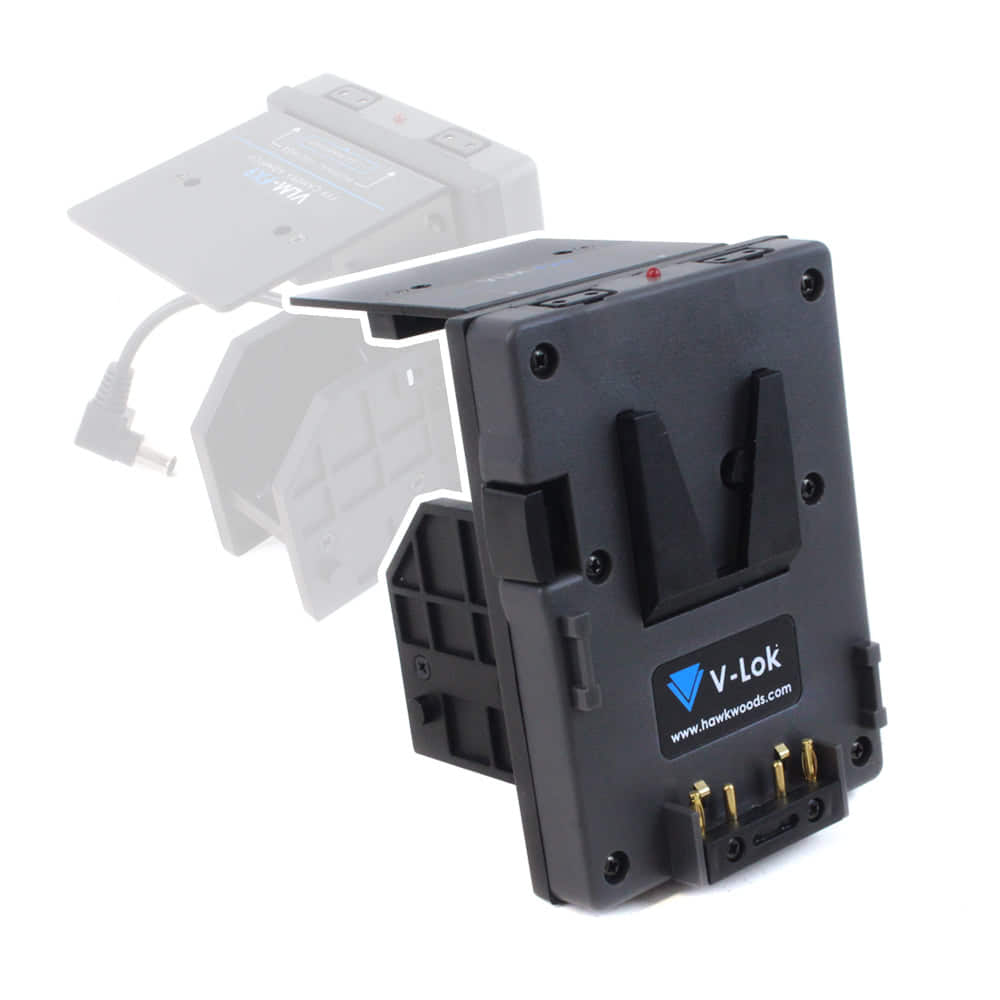

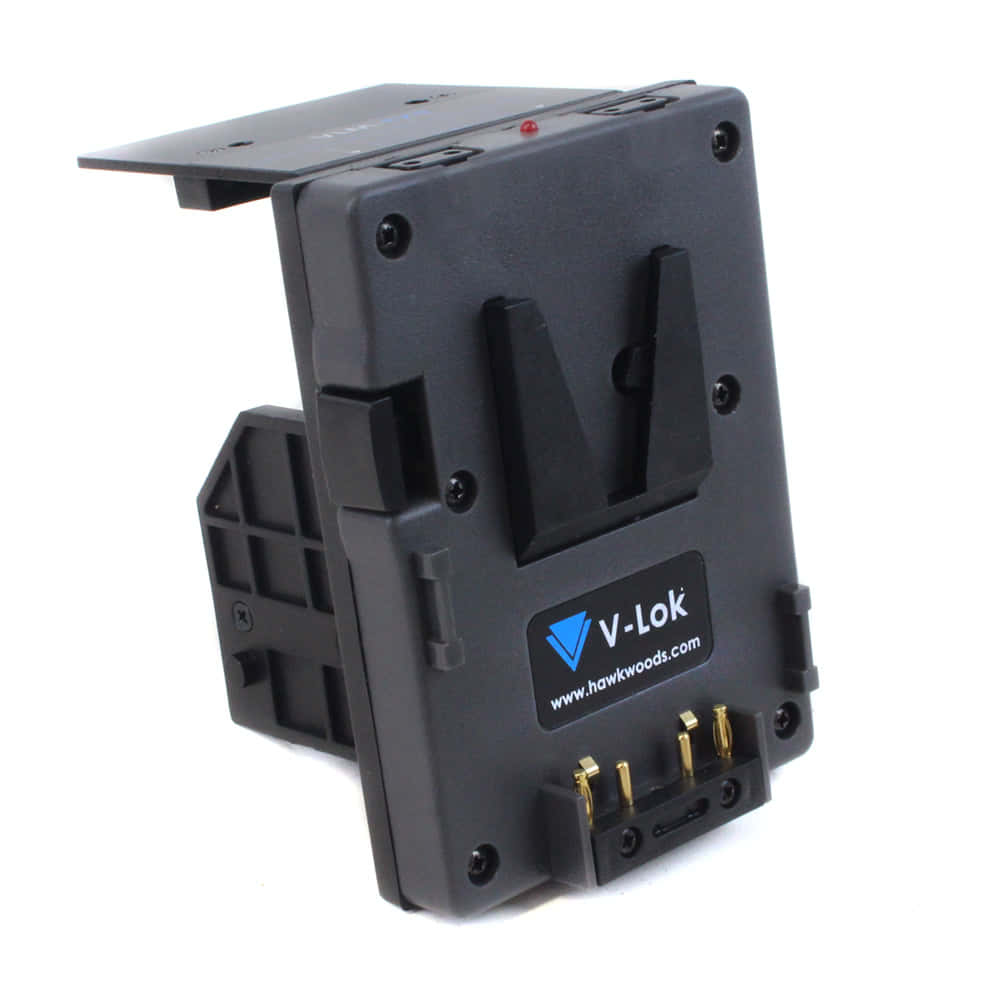

The VLM-FX9 is a direct V-Lok fitting designed specifically for Sonys FX9 camera. This adapter allows users to utilize higher powered V-Lok batteries instead of the standard BPU batteries. The VLM-FX9 attaches to the camera via the lock in mechanism in the battery compartment and is then secured in place by screwing it to the top of the camera body.

One of the main benefits of the VLM-FX9 is its ability to power additional equipment and accessories. It features 2x Power-con (D-Tap) outputs with a voltage range of 11-17 volts, as well as a 5V 2A USB output for charging or powering accessories like mobile phones. The power is provided through a short DC jack cable connected to the FX9s DC input, making it a convenient and versatile option for FX9 users

SUMMARY
Battery Mount: V Mount
INCLUDED IN BOX
1 x Sony FX9 V-Lok Camera Mount

Model
VLM-FX9
Type
V-Lok
Weight
282g
Size
8.4 x 12 x 8 cm
Nominal Voltage
19.5v
Number of D-Taps
2
Number of USB
1

Direct V-Lok fitting for Sony’s FX9 camera allowing the user to use higher powered V-Lok batteries rather than BPU batteries which are the standard battery for the FX9 camera.
The adapter attaches via the lock in mechanism in the FX9’s battery compartment and then finally screwed to the top of the camera body to secure in place.
Users have the benefit of 2x Power-con (D-Tap) outputs 11 – 17 volts allowing further equipment/accessories to be powered.
1x 5V 2A USB is also available for powering or charging accessories such as mobile phones.

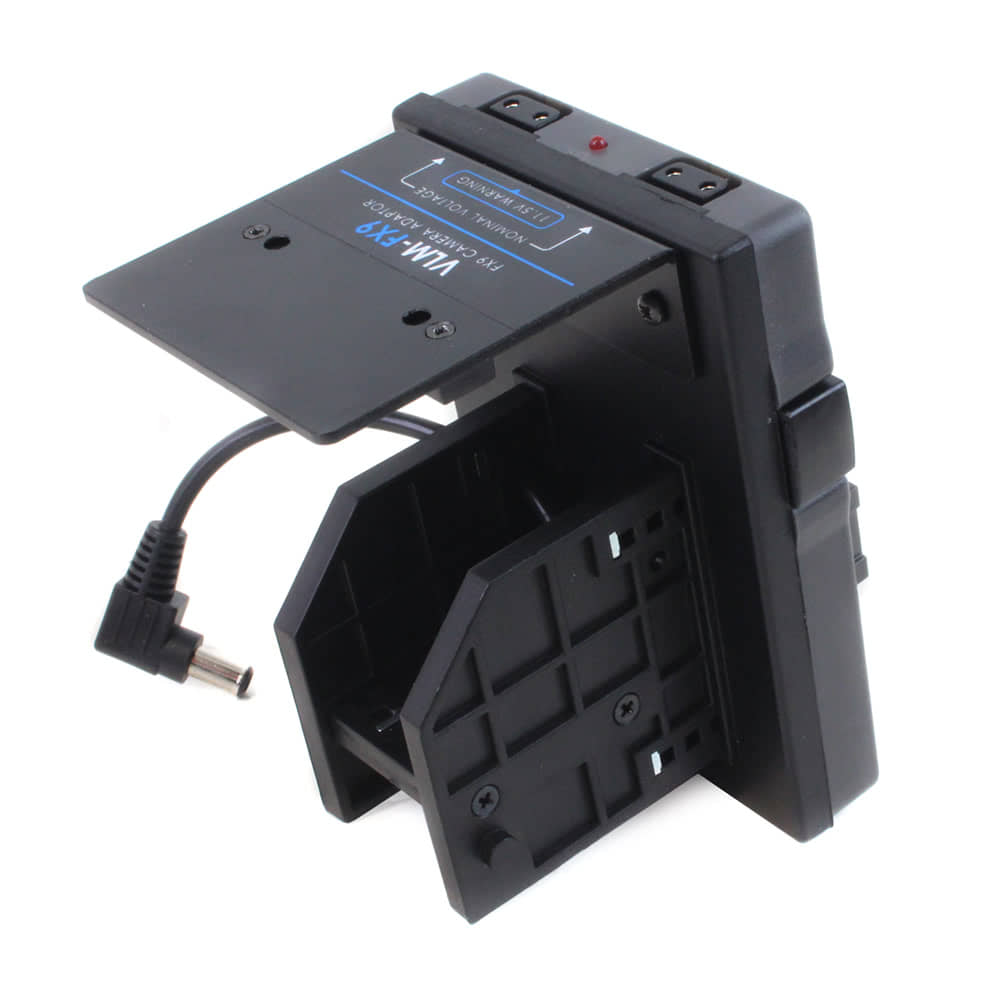

Power is provided via a short DC jack cable via the FX9’s DC Input.
