Octamas Power Box Pro V-Mount Adapter

Overview
The OCTAMAS gear Power Box is a reliable and widely used battery solution that comes equipped with various industry standard accessory power connectors and two LCDs for monitoring EXT. and BATT inputs. It also offers the convenience of top/bottom mounting options for SWISS cage and 15mm LWS rods.

The Power Box features a range of connectors including 1x V-Mount, 3x D-Tap, 1x Female V-Mount, 1x 4pin XLR 12V DC IN, 2x 3pin 24V Fischer RS regulated power, 2x 2pin 0B AUX/PWR unregulated direct power, and 1x 3.5mm Jack RS Trigger. The DC IN is microprocessor controlled to prevent charge/discharge of the onboard battery when an external battery is connected, and it is prioritized over the onboard battery. The LED 1 displays the battery voltage and LED 2 displays the DC IN voltage with an accuracy of +/- 0.2V, making it a highly accurate and efficient power solution.

Summary
Battery Mount: V Mount
Included in box
1x Power Box V-Mount, Female V-Mount

About the Octamas Power Box Pro V-Mount Adapter

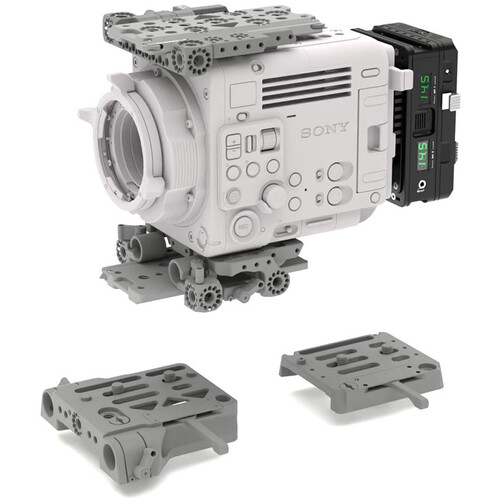

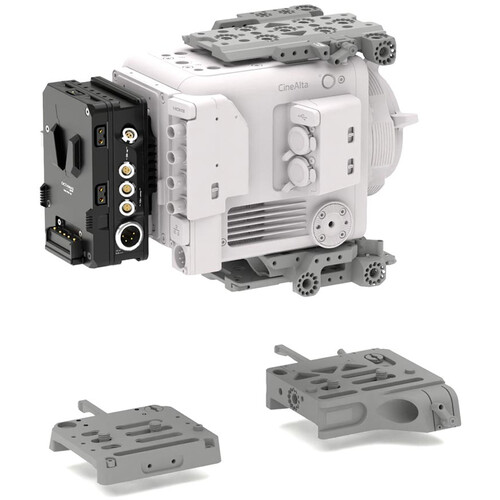

The OCTAMAS gear Power Box is a proven battery solution featuring various industry standard accessory power connectors and two LCDs for EXT. and BATT input monitoring. The Power Box also offers top/bottom mounting options for SWISS cage and 15mm LWS rods.

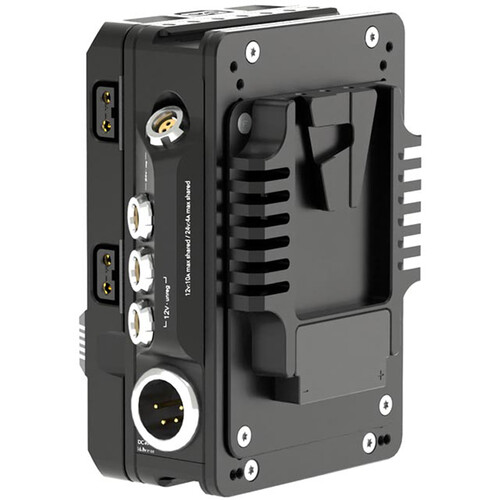

Connectors:

1x V-Mount / 3x D-Tap
1x Female V-Mount (to mount on any regular V-Mount Plate)

1x 4pin XLR 12V DC IN.
2x 3pin 24V Fischer RS regulated power (combined 4 Amp max) with RS Trigger Function implemented (optional cable required)
2x 2pin 0B AUX/PWR unregulated direct power from DC or Battery

1x 3.5mm Jack RS Trigger (Signal output from Remote Focus to Camera, optional cable required)

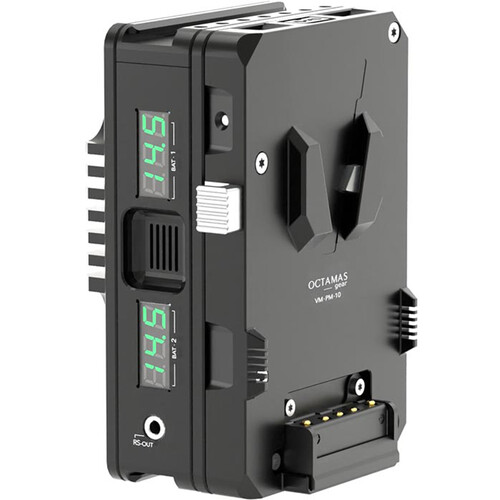

LED 1 Battery voltage**
LED 2 DC IN voltage**

*DC IN is microprocessor controlled to prevent charge/discharge of onboard battery when external battery is connected. DC IN is prioritized over onboard Battery. Hotswap capability between on-board battery and DC power input for uninterrupted power supply.
** +/- 0.2V accuracy

Material 7075 Aluminium / Black anodizing
Size 123x90x66mm
Weight 497g
