SHAPE VBFX6 FX6 Mount Pivoting Battery Plate

Overview
The SHAPE V-Mount pivoting battery plate is designed specifically for the Sony FX6 top plate (FX6TP). It allows for easy access to the rear connector and supports the hot swap feature for BP-U batteries. The plate is made of CNC aluminium and has multiple holes for mounting accessories. It also features a push-button system that allows you to tilt the battery plate up and down for convenient usage.

The battery plate comes with (1) D-Tap port for powering accessories and a protective digital fuse that disables the ports if they exceed the set current. It connects to the camera using a 19.5V output D-Tap power cable, which regulates the voltage from any V-mount battery. The cable has a length of 15″ and the cheeseplate is equipped with 1/4″-20 and 3/8″-16 threaded holes for versatile mounting options. This battery plate is the perfect accessory for powering your Sony FX6 camera with a V-mount battery.

Summary
Battery Mount: V Mount
Included in box

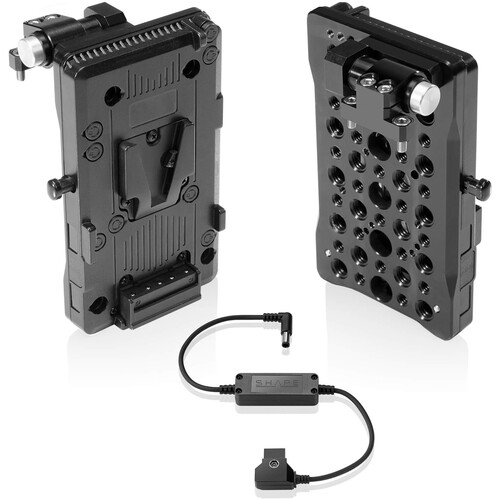

1x Sony FX6 V-Mount pivoting battery plate

About the SHAPE VBFX6 FX6 Mount Pivoting Battery Plate

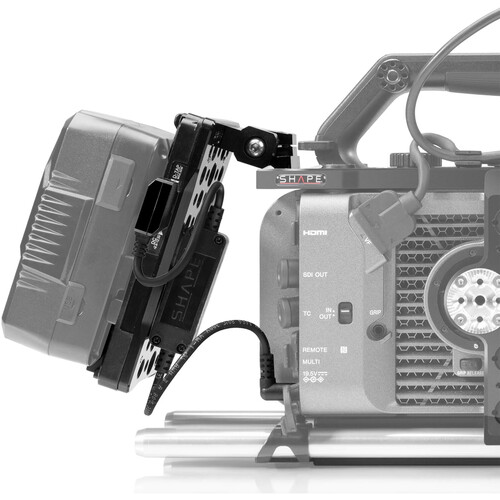

The SHAPE V-Mount pivoting battery plate for Sony FX6 attaches to the rear of the top plate (FX6TP) and supports a V-mount battery while leaving access to the camera’s standard battery compartment. Our V-mount battery plate provides the right battery voltage and amperage to use with your Sony FX6 camera. By pivoting the battery plate, you have access to the BPU battery of the camera and also allows hot swap feature. A swivel system let you pivot the battery plate up and down. It features 1 D-Tap port for powering accessories. It also uses a digital fuse that monitors the D-Tap ports and disables them if they exceed the set current for accessories while leaving the camera running.

It connects to the camera using the SHAPE 19.5V output D-Tap power cable for Sony FX6. The cable regulates the voltage from a D-Tap source to the proper 19.5 V required to power an FX6 camera. This allows you to power your camera using any V-mount battery with a D-Tap plug. The cable has a total end-to-end length of 15″ (38 cm). A universal cheeseplate with 1/4″-20 and 3/8”-16 threaded holes. The cheeseplate can tilt up and down with a patented 15 mm Push-button system to provide an easy access to the rear connector and have access to the BPU battery.

Weight 0.6 lbs / 0.27 kg
Dimensions 4.80 x 3.25 x 2.10 in
12.19 x 8.26 x 5.33 cm
UPC 629266102572

V-Mount pivoting battery plate compatible with Sony FX6 top plate (FX6TP) only
Push-button system lets you tilt the battery plate up and down
Easy access to the rear connector and allows BP-U Battery hot swap feature
(Please refer to the camera’s operating manual for proper usage)
Attaches to the Rear of the Sony FX6 top plate (FX6TP)
Supports V-Mount Battery
(1) D-Tap Ports & Protective Digital Fuse
(1) D-Tap Power Cable for Sony FX6 provide 19.5V power output
Multiple holes on top and side of the cheeseplate
Made of CNC Aluminium
